Aluminum scaffold Aluklik 70

Code: 821101

Brand: P TEAM

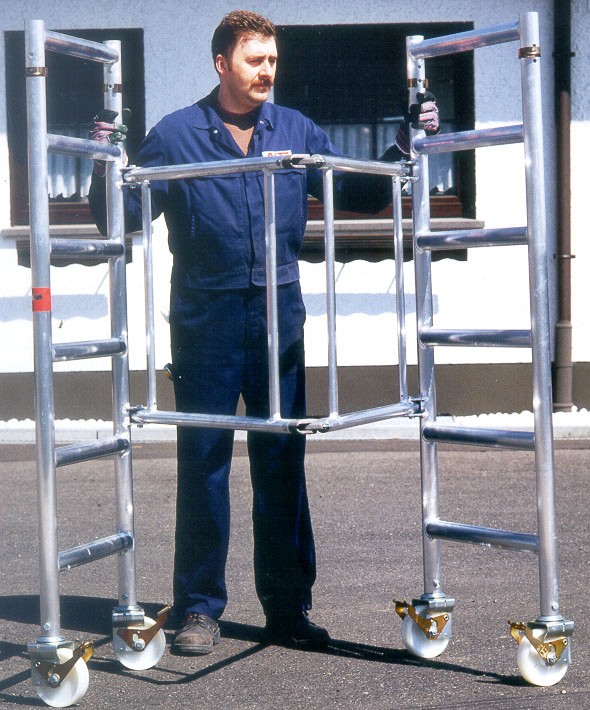

Aluklik Type 70 is a super light and extremely resilient rolling aluminum scaffold with a foldable base that can be easily unfolded in a matter of seconds. The scaffold measures 1,9 m x 0,7 m and has a working load limit of 228 kg. The scaffold incorporates self-locking aluminum claws with a snap-in function for quick and easy tool-free assembly, eliminating the need for a wall anchor, even at the maximum height. All rungs are designed to be non-slip with a ribbed texture, ensuring safety during use. The platform is slip-resistant, waterproof and weather-resistant. The standing height of this scaffold can be extended up to 11, 5 m without the need for any tools during assembly. Triangular outriggers are not required up to a height of 5 m. The product complies with the EN 1004 standard. It is classified within Group 3 scaffolds, which are designed to support a load capacity of 200 kg per square meter. It is suitable for both indoor and outdoor use.

Standing height:

Reset options

Availability: 10 do 14 dni

Price:

from 865,59 €

Add to cart

You have a question about this product?

More details
Specifications

Rolling scaffold Aluklik 70 measures 1,9 m x 0,7 m and has a working load limit of 228 kg. The standing height of this scaffold can be extended up to 11,5 m. Triangular outriggers are not required up to a height of 5 m. This is a foldable and freestanding scaffold that is exceptionally lightweight due to its aluminum construction. The scaffold incorporates self-locking aluminum claws with a snap-in function for quick and easy tool-free assembly, eliminating the need for a wall anchor, even at the maximum height. All rungs on the scaffold are designed to be non-slip with a ribbed texture, ensuring safety during use. The scaffold is equipped with built-in wheels for easy movement. The aluminum rolling scaffold Aluklik 70 is upon request also available with height adjustable wheels, allowing for leveling the scaffold on uneven surfaces. The Aluklik scaffold consists of a foldable base, wheels, a vertical frame, an intermediate platform, diagonal and horizontal braces, a platform frame, a platform, guardrail and guardrail frame. The guardrail is made from a single piece for added stability, and its frame is fitted with plugs that prevent water ingress from above. The vertical frame is constructed from strong tubes that provide grip and support when descending from the scaffold. Diagonal and horizontal braces further reinforce the structure and enable safe assembly of multi-part frames. The intermediate platform is designed for easy and safe passage between levels. Stability on uneven or sloped terrain is ensured by a triangular brace that is easily adjustable in height. This product is made in accordance with the EN 1492-1 standard. It is classified within Group 3 scaffolds, which are designed to support a load capacity of 200 kg per square meter.

Warranty: 1 year

Images of the products are symbolic.

The table presents the technical characteristics of rolling scaffolds Aluklik 70. The heights of the mobile scaffolds are specified in the product photo gallery.

Type of Aluklik 70 scaffold	70/300	70/400	70/500	70/600	70/700	70/800	70/960	70/1200	70/1400
Scheme
Working height (m)	3,0	3,8	5,2	5,8	7,2	7,7	9,6	11,5	13,5
Scaffold height (m	1,8	2,8	4,2	4,8	6,2	6,7	8,6	10,5	12,5
Standing height (m)	1	1,8	3,2	3,8	5,2	5,7	7,6	9,7	11,5

Technical specifications:

Rolling scaffold according to EN 1004
Permissible total load on one working level 450 kg
Scaffolding group 3 with 200 kg / m²
Dimensions 1. 9 m x 0. 7 m (LxW)
Max. Outdoor working height 10 m, in closed rooms 11,5 m
Pipe diameter 50,6 mm x 2,1 mm
Covering: Screen printing plate (7-fold veneered) with aluminium frame, slip-resistant
TÜV-tested and with GS mar
