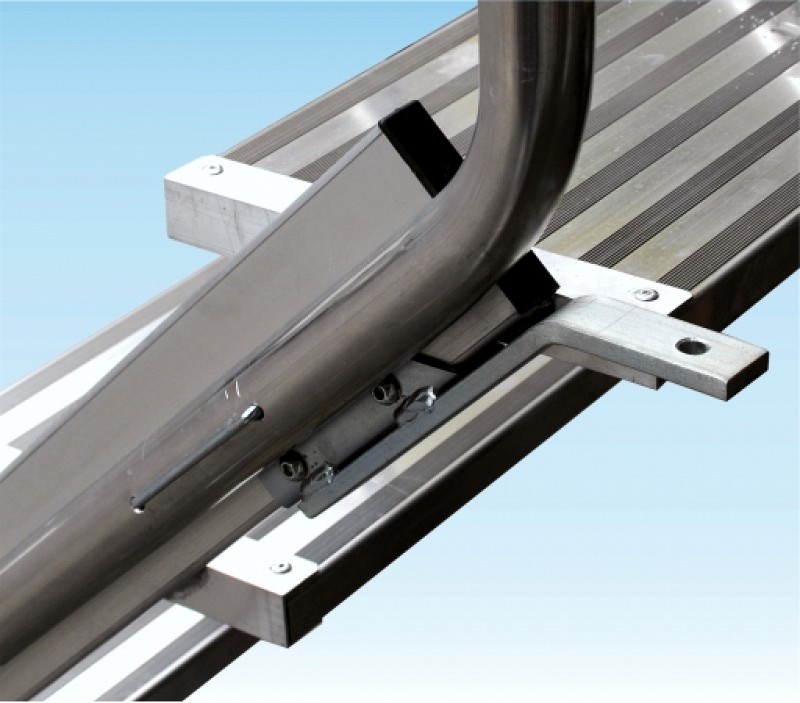

This access stairway is built with non-slip steps, each with a depth of 200 mm. Safety features include handrails on both sides of the staircase, and plates are provided to secure the ladder to the ground and upper floor. The stairs have a 60º angle. This product is designed, tested and certified in compliance with the technical standards EN 14122. This ladder has a CE certificate, which provides you with protection under European law.

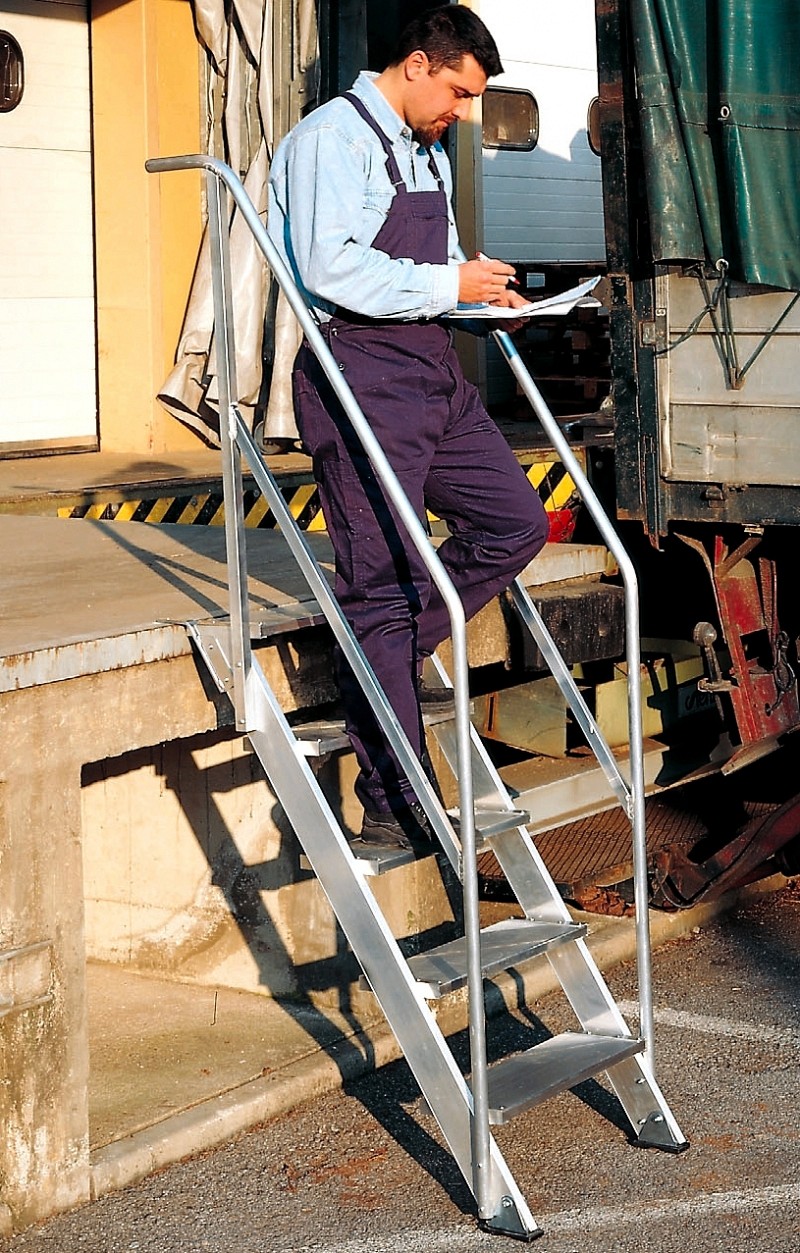

Ladder type 7368 is an access stairway, providing the flexibility of a ladder while ensuring the safety and ease of use associated with a stairway for reaching various heights.

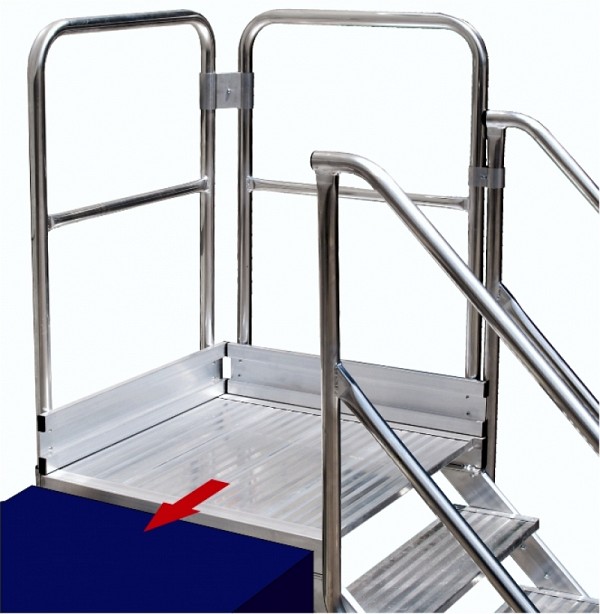

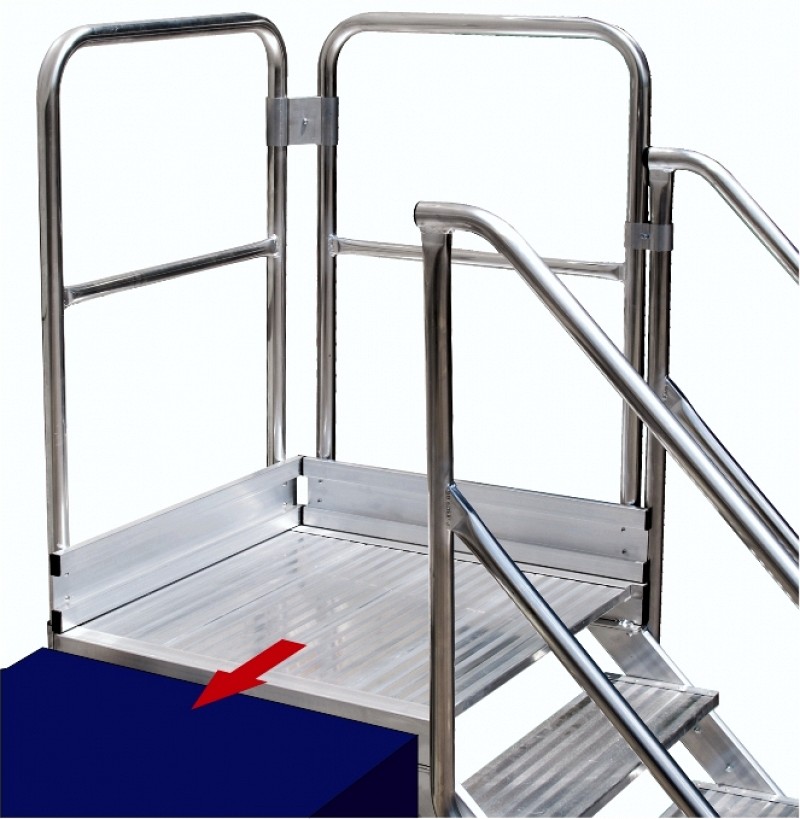

Optional accessories for ladder type 7368 are available upon request:
The product photo gallery also includes images of the optional accessories. Please refer to the descriptions below the photographs for more details.
Images of the products are symbolic.

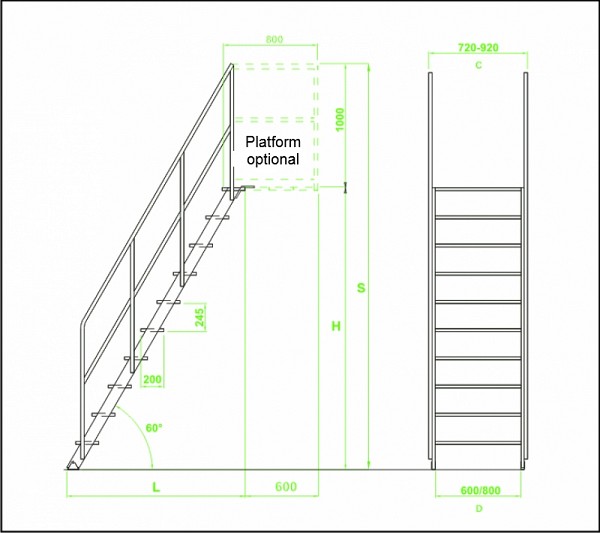

Stairs height S m |
Landing height H m |
Length L m |
Width B m |
Stairs width C m |
Weight kg |
Article No. |
1,75 |
0,75 |
0,55 |
0,8 |
0,92 |
13,2 |
827903 |
1,99 |
0,99 |
0,69 |
0,8 |
0,92 |
15,7 |
827904 |
2,24 |
1,24 |
0,83 |
0,8 |
0,92 |
18,8 |
827905 |
2,48 |
1,48 |
0,97 |
0,8 |
0,92 |
21,9 |
827906 |
2,73 |
1,73 |
1,11 |
0,8 |
0,92 |
25,9 |
827907 |
2,98 |
1,98 |
1,25 |
0,8 |
0,92 |
29 |
827908 |
3,22 |
2,22 |
1,4 |
0,8 |
0,92 |
32,1 |
827909 |
3,47 |
2,47 |
1,54 |
0,8 |
0,92 |
34,7 |
8279/10 |
3,71 |
2,71 |
1,68 |
0,8 |
0,92 |
39,1 |
827911 |
3,96 |
2,96 |
1,82 |
0,8 |
0,92 |
42,2 |
827912 |
4,2 |
3,2 |
1,96 |
0,8 |
0,92 |
45,3 |
827913 |
4,46 |
3,46 |
2,1 |
0,8 |
0,92 |
48,4 |
827914 |
4,69 |
3,69 |
2,24 |
0,8 |
0,92 |
51,9 |
827915 |
4,94 |
3,94 |
2,38 |
0,8 |
0,92 |
55,5 |
827916 |
5,18 |
4,18 |
2,52 |
0,8 |
0,92 |
58,1 |
827917 |
5,43 |
4,43 |
2,66 |
0,8 |
0,92 |
61,7 |
827918 |
5,67 |
4,67 |
2,8 |
0,8 |
0,92 |
64,7 |
827919 |
5,92 |
4,92 |
2,94 |
0,8 |
0,92 |
68,7 |
827920 |
6,16 |
5,16 |
3,08 |
0,8 |
0,92 |
71,8 |
827921 |
