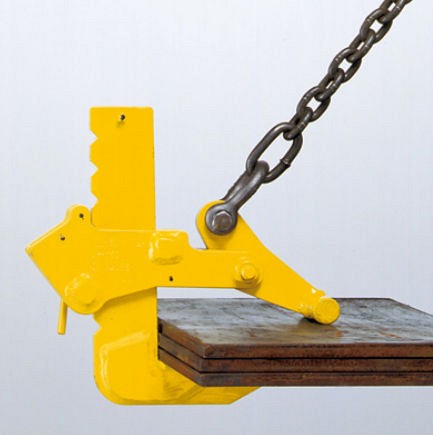

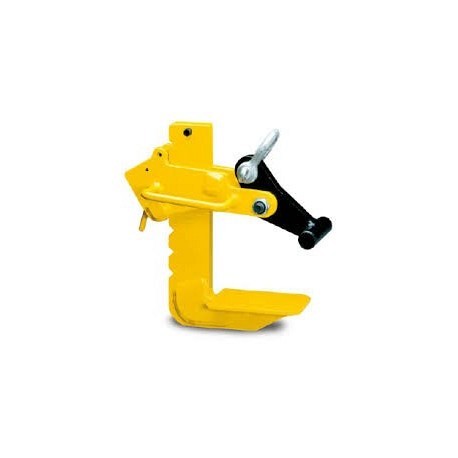

For the transport of stainless steel plate bundles, plywood bundles, etc. the clamps are optionally available with flat jaws and protective lining. The lifting clamps are available in versions for bundle thicknesses up to 400 mm.
Images of the products are symbolic.
The table presents technical characteristics of clamp type APF.
|
Model |
Working load limit kg |
Gripping area mm |
Weight kg |
Article No. |
|
APF 0,3/150 |
350 |
0 – 150 |
21 |
893901 |
|
APF 0,6/150 |
650 |
0 – 150 |
22 |
893902 |
|
APF 1,3/150 |
1.300 |
0 – 150 |
23 |
893903 |
|
APF 2,3/150 |
2.300 |
0 – 150 |
33 |
893904 |
|
APF 3,3/150 |
3.300 |
0 – 150 |
39 |
893905 |
|
APF 5,0/150 |
5.000 |
0 – 150 |
59 |
893906 |
|
APF 6,6/150 |
6.650 |
0 – 150 |
65 |
893907 |
|
APF 0,3/250 |
350 |
0 – 250 |
21 |
893908 |
|
APF 0,6/250 |
650 |
0 – 250 |
22 |
893909 |
|
APF 1,3/250 |
1.300 |
0 – 250 |
23 |
893910 |
|
APF 2,3/250 |
2.300 |
0 – 250 |
33 |
893911 |
|
APF 3,3/250 |
3.300 |
0 – 250 |
39 |
893912 |
|
APF 5,0/250 |
5.000 |
0 – 250 |
59 |
893913 |
|
APF 6,6/250 |
6.650 |
0 – 250 |
87 |
893914 |
|
Model |
APF 0,3/150 |
APF 0,6/150 |
APF 1,3/150 |
APF 2,3/150 |
APF 3,3/150 |
APF 5,0/150 |
APF 6,6/150 |
APF 0,3/250 |
APF 0,6/250 |
APF 1,3/250 |
APF 2,3/250 |
APF 3,3/250 |
APF 5,0/250 |
APF 6,6/250 |
|
A,mm |
298 |
298 |
298 |
321 |
321 |
405 |
405 |
448 |
448 |
448 |
417 |
417 |
495 |
495 |
|
B,mm |
122 |
122 |
122 |
130 |
130 |
185 |
185 |
122 |
122 |
122 |
130 |
130 |
185 |
185 |
|
C,mm |
160 |
160 |
160 |
160 |
160 |
210 |
210 |
140 |
140 |
140 |
160 |
160 |
210 |
210 |
|
D,mm |
41 |
41 |
41 |
50 |
50 |
82 |
82 |
41 |
41 |
41 |
60 |
60 |
82 |
82 |
|
ØE,mm |
20 |
20 |
20 |
23 |
23 |
30 |
30 |
20 |
20 |
20 |
23 |
23 |
30 |
30 |
|
F,mm |
80 |
80 |
80 |
80 |
80 |
100 |
100 |
80 |
80 |
80 |
80 |
80 |
100 |
100 |
|
G,mm |
20 |
20 |
20 |
25 |
25 |
30 |
30 |
20 |
20 |
20 |
25 |
25 |
30 |
30 |
|
ØH,mm |
25 |
25 |
25 |
25 |
25 |
40 |
40 |
25 |
25 |
25 |
25 |
25 |
40 |
40 |
