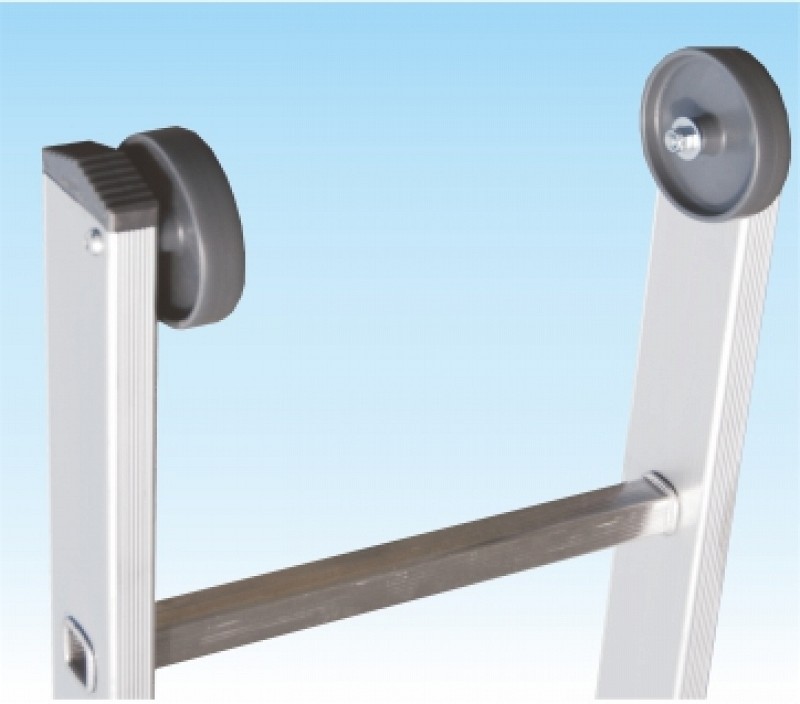

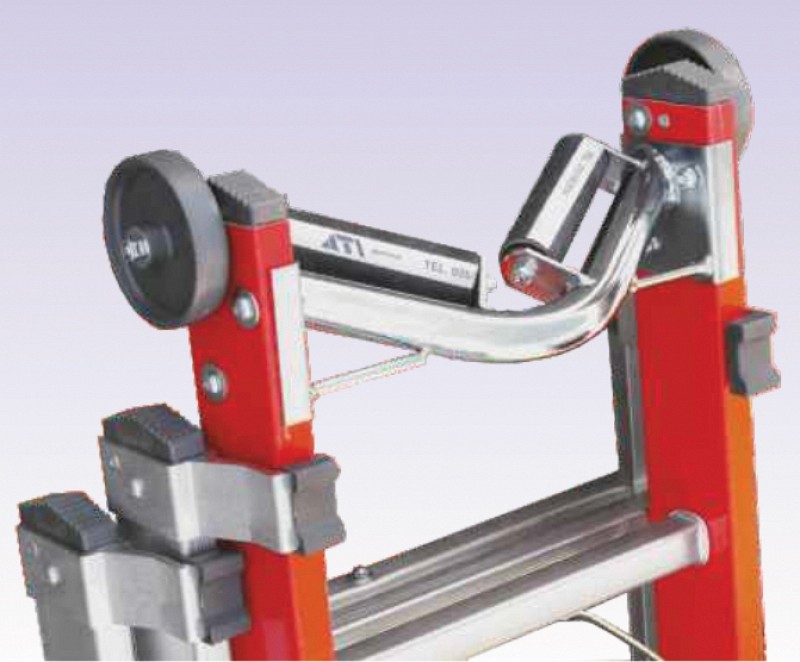

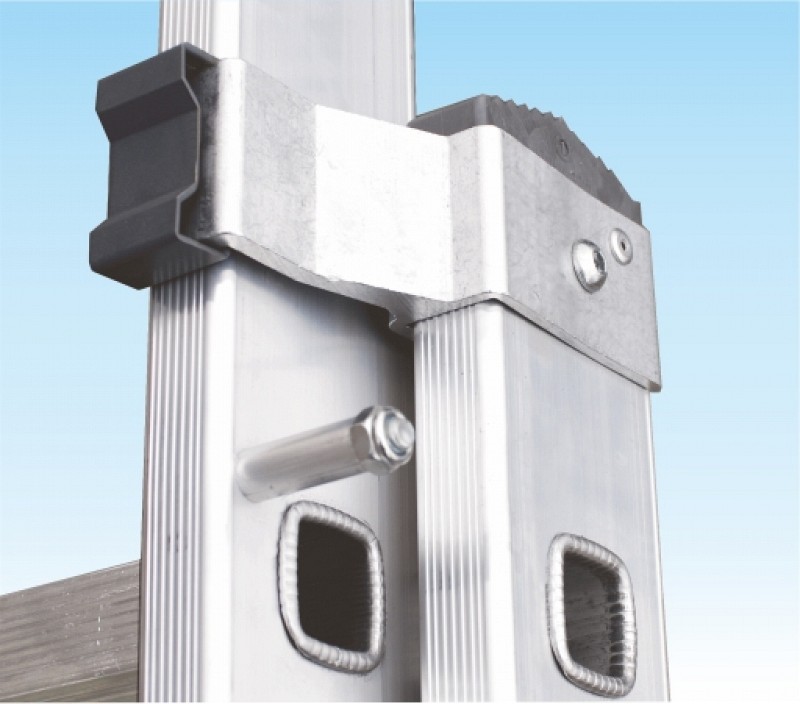

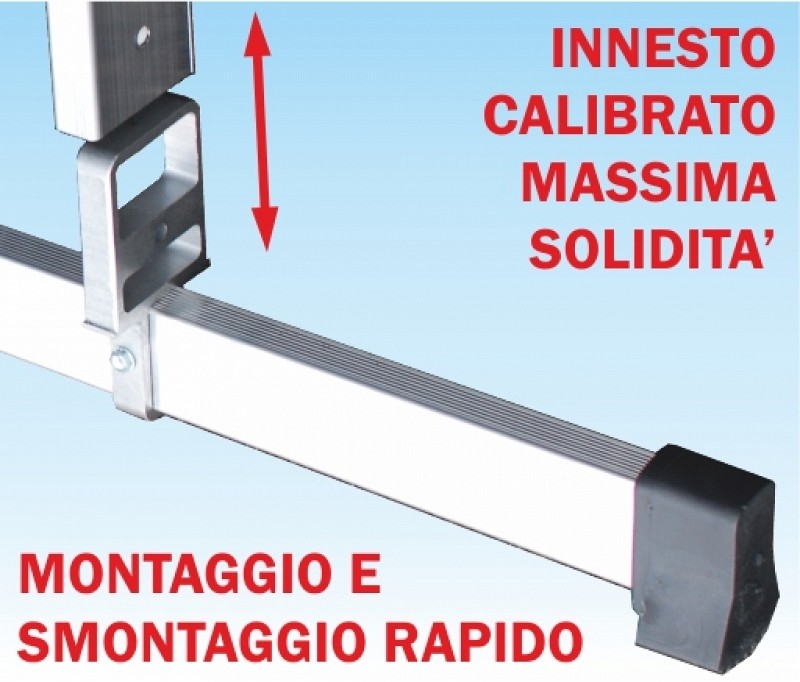

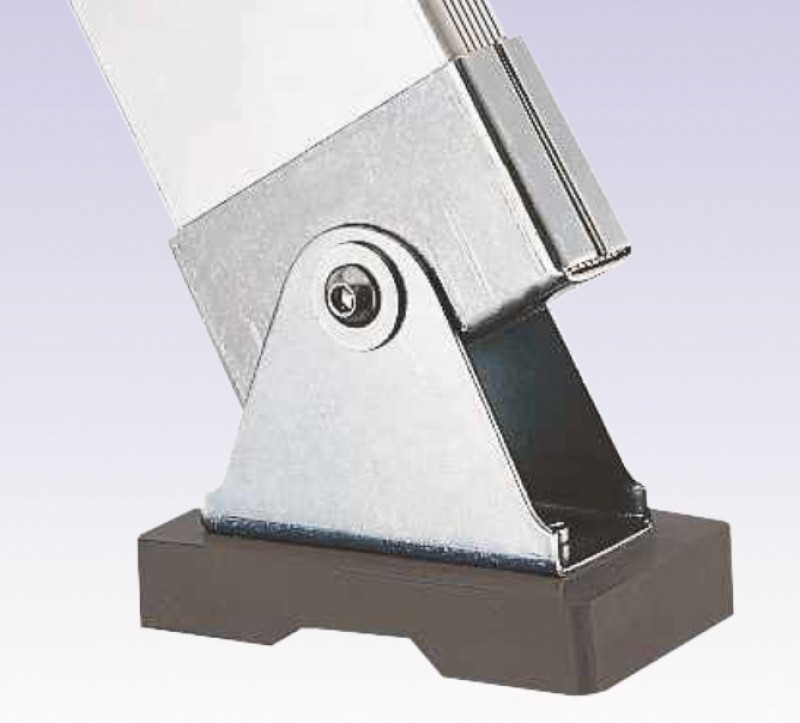

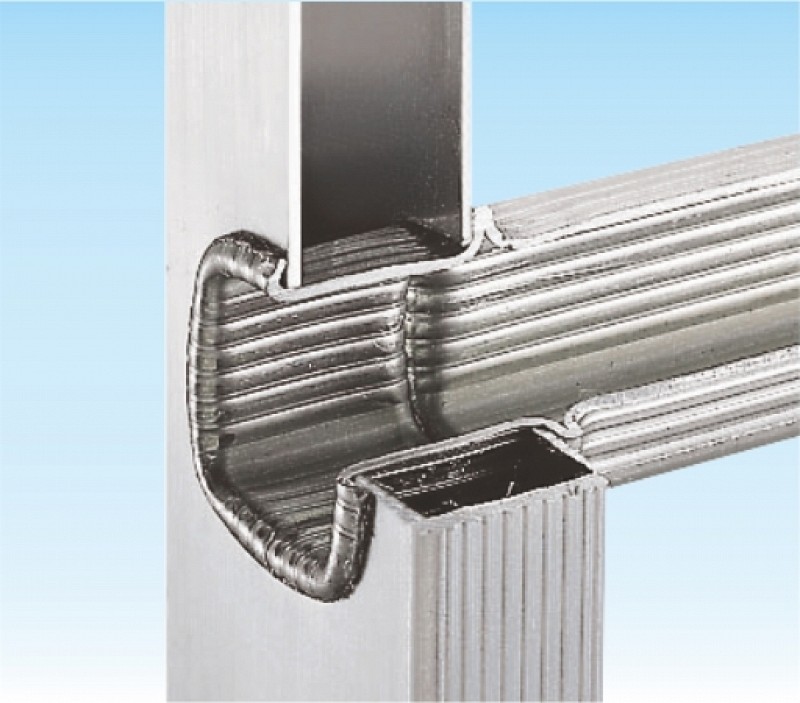

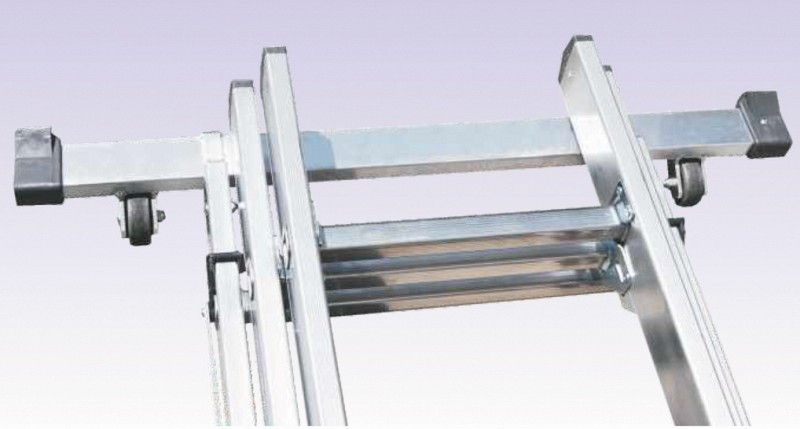

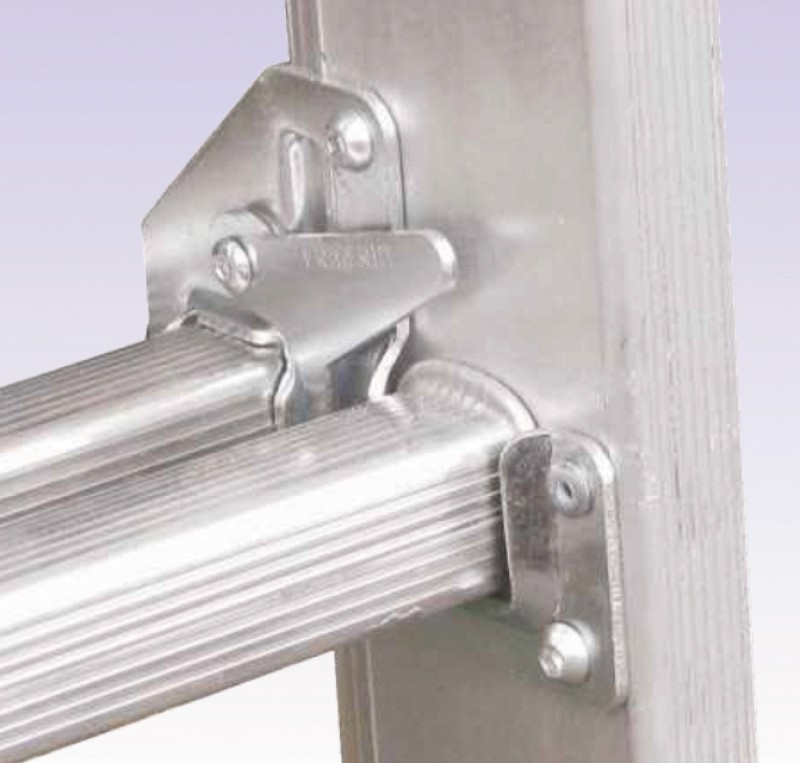

This extension ladder is built with non-slip rungs measuring 30x30 mm. Non-slip shoes at the bottom ensure stability and prevent slippage during use. This ladder also features a stabilizer base that provides additional stability. The stabilizer base is designed for easy assembly and disassembly. Additionally, the top of the fly is equipped with wheels to ensure smoother extension of the ladder. An extension ladder has to be locked in place during use. Rung locks are a crucial safety feature that act as a locking mechanism that holds the ladder's sections in place when extended, ensuring the fly section does not slide down while in use. The fly on this type of extension ladder has to be extended manualy. This product is designed, tested and certified in compliance with the technical standards EN 131/1-2. This ladder has a CE certificate, which provides you with protection under European law.

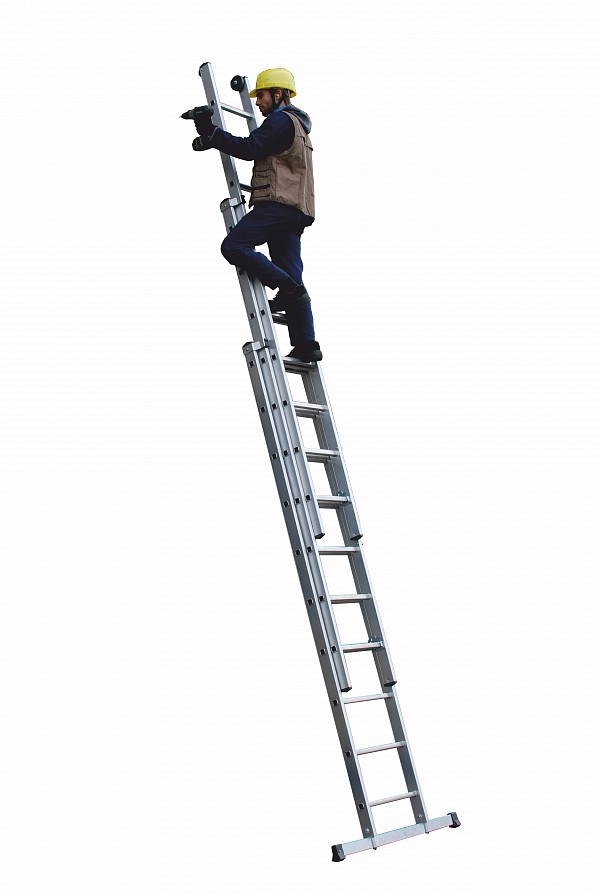

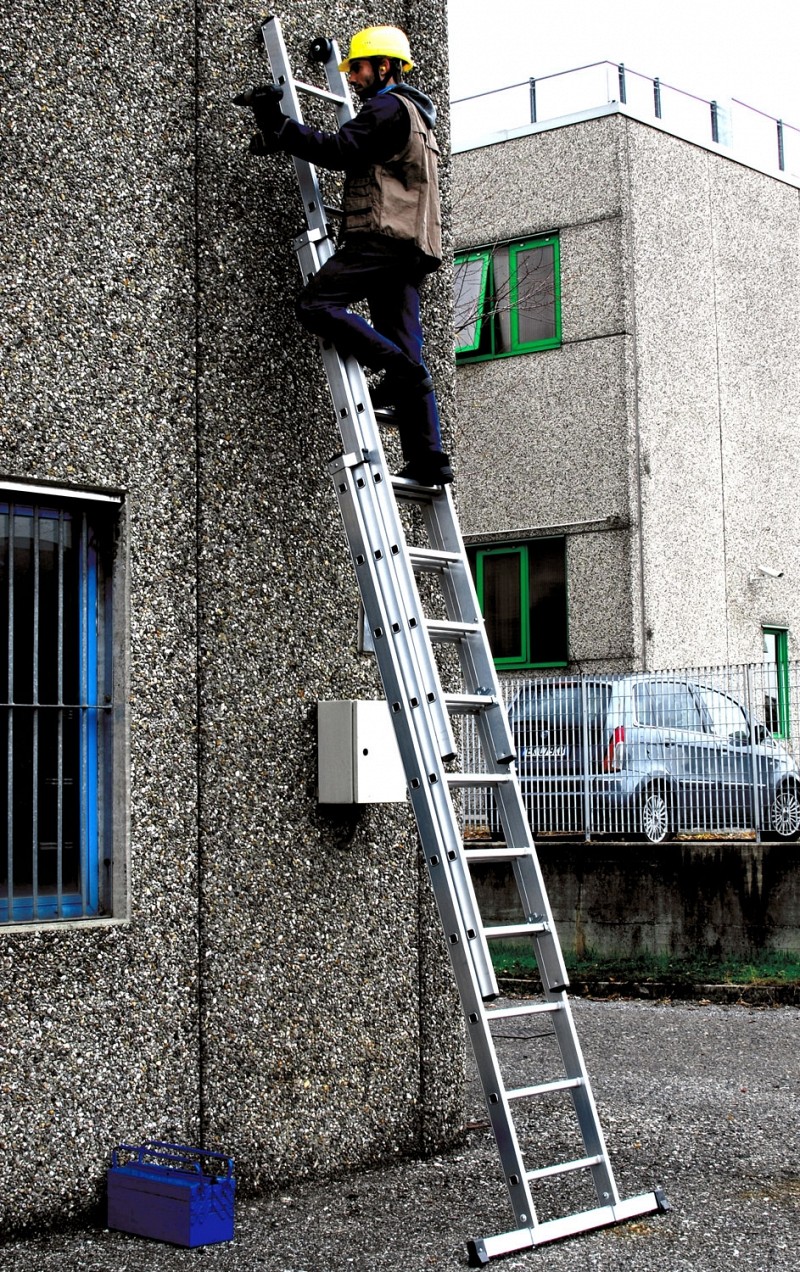

Ladder type 5048 is a three section extension ladder. Extension ladders are ideal for projects that require work at higher elevations. This type of ladder consists of a base section that rests against the support and is positioned on the ground, and a fly section that is extendable. Extension ladders are a type of straight/single/leaning ladders, which are not self-supporting and must lean up against a surface for support.

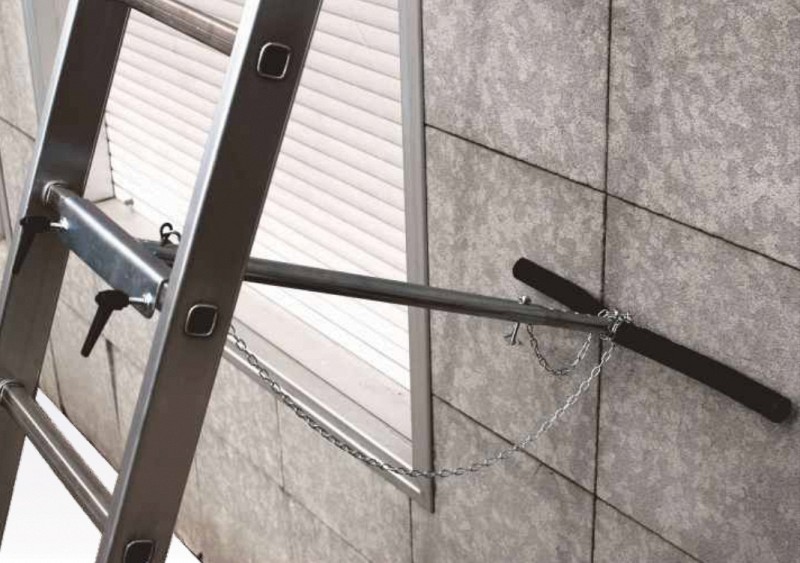

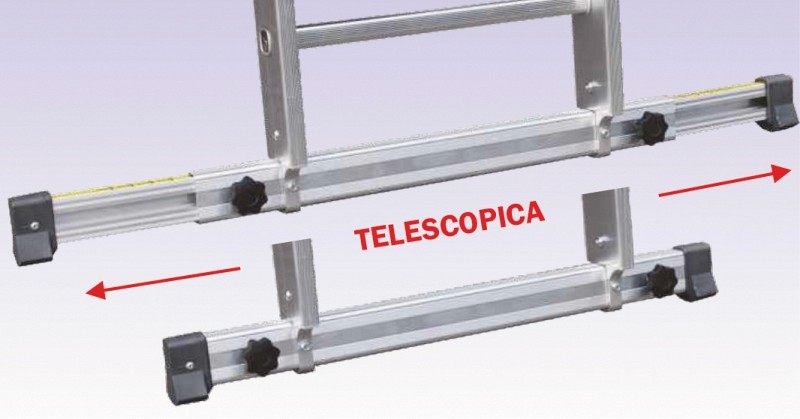

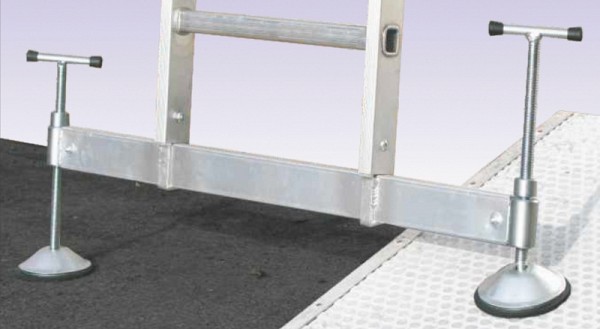

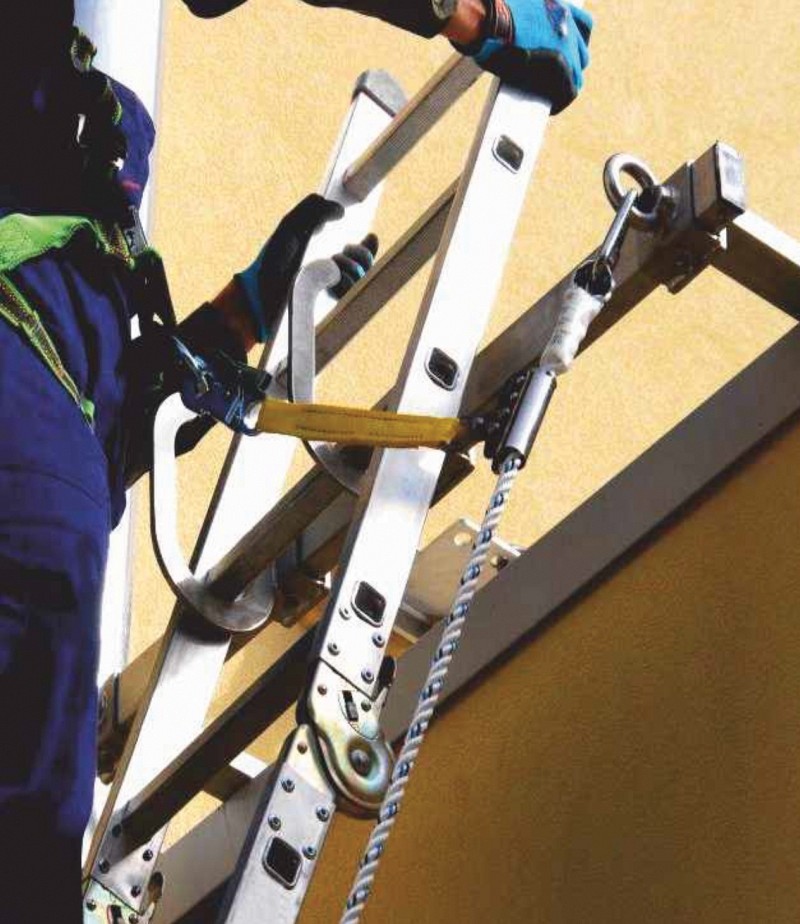

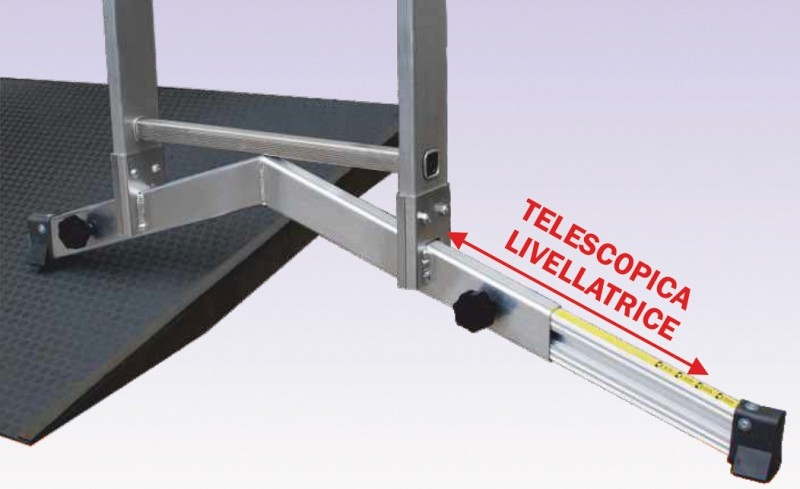

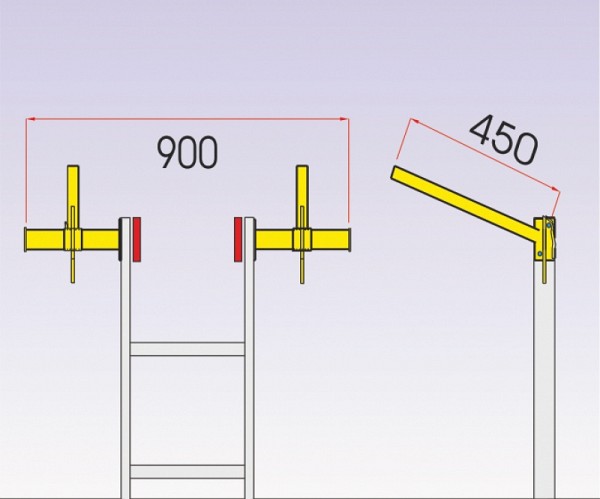

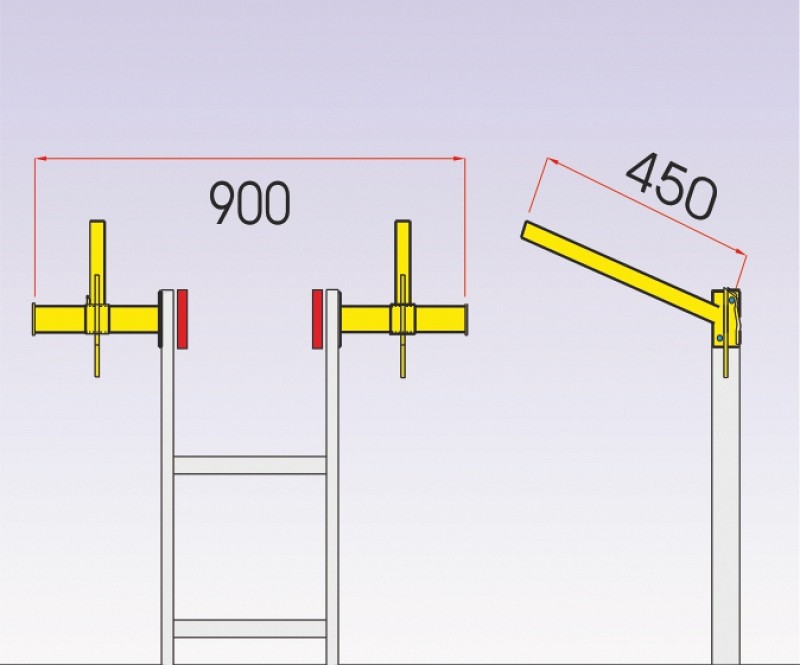

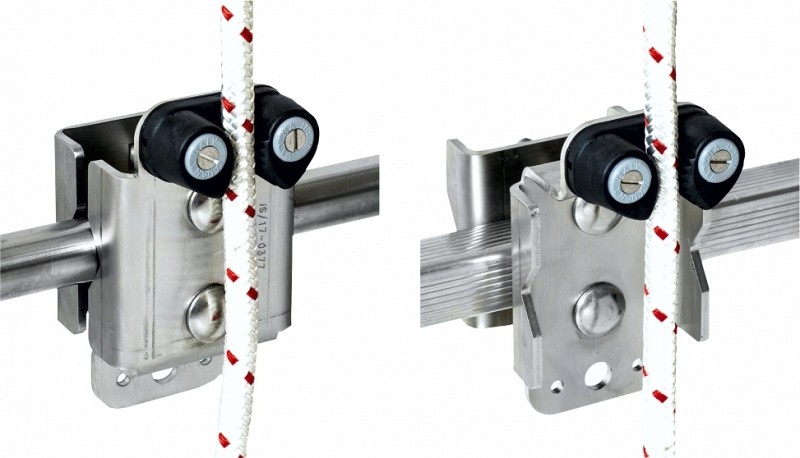

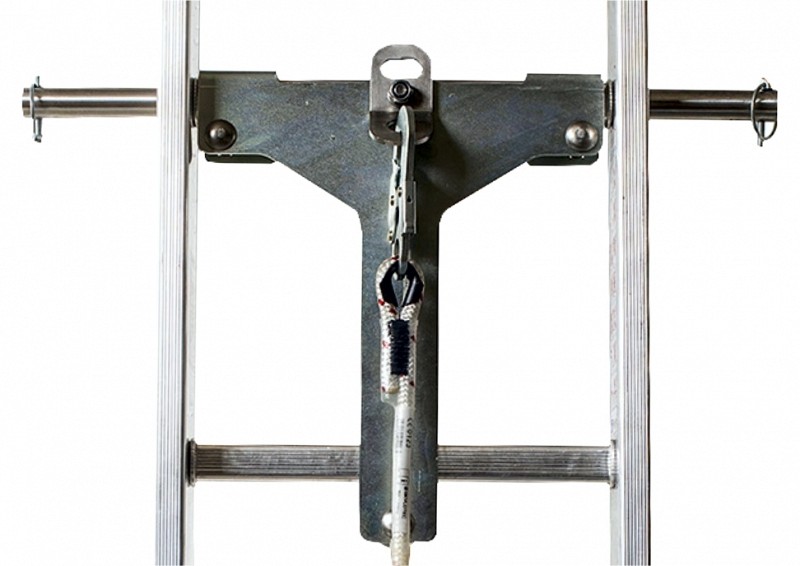

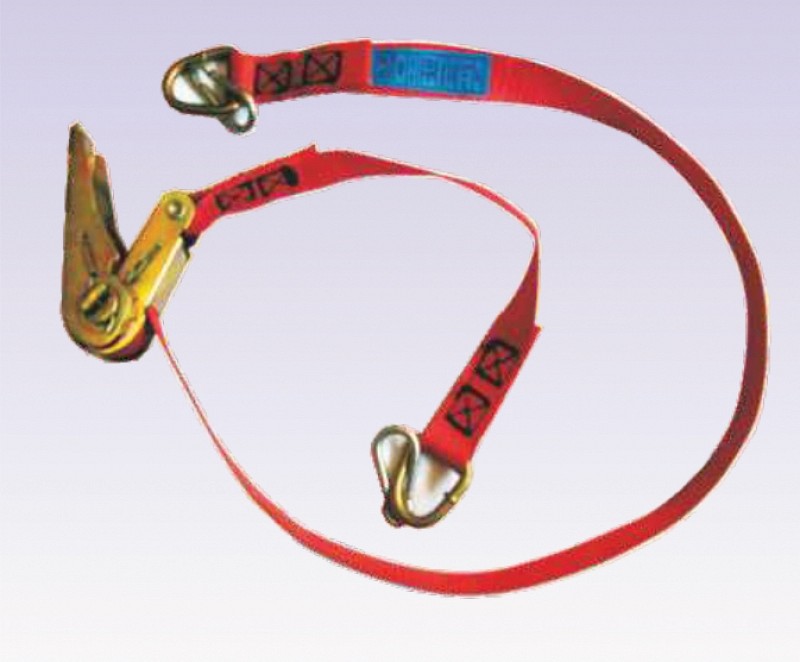

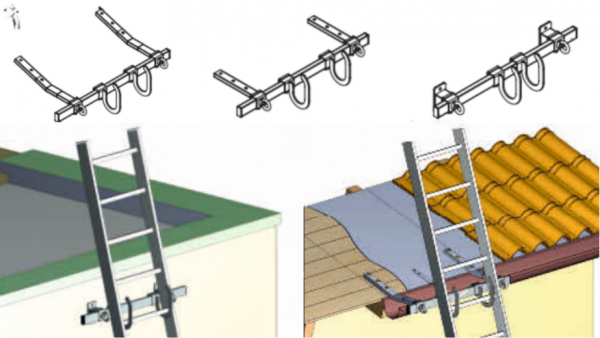

Optional accessories for ladder type 5048 are available upon request:

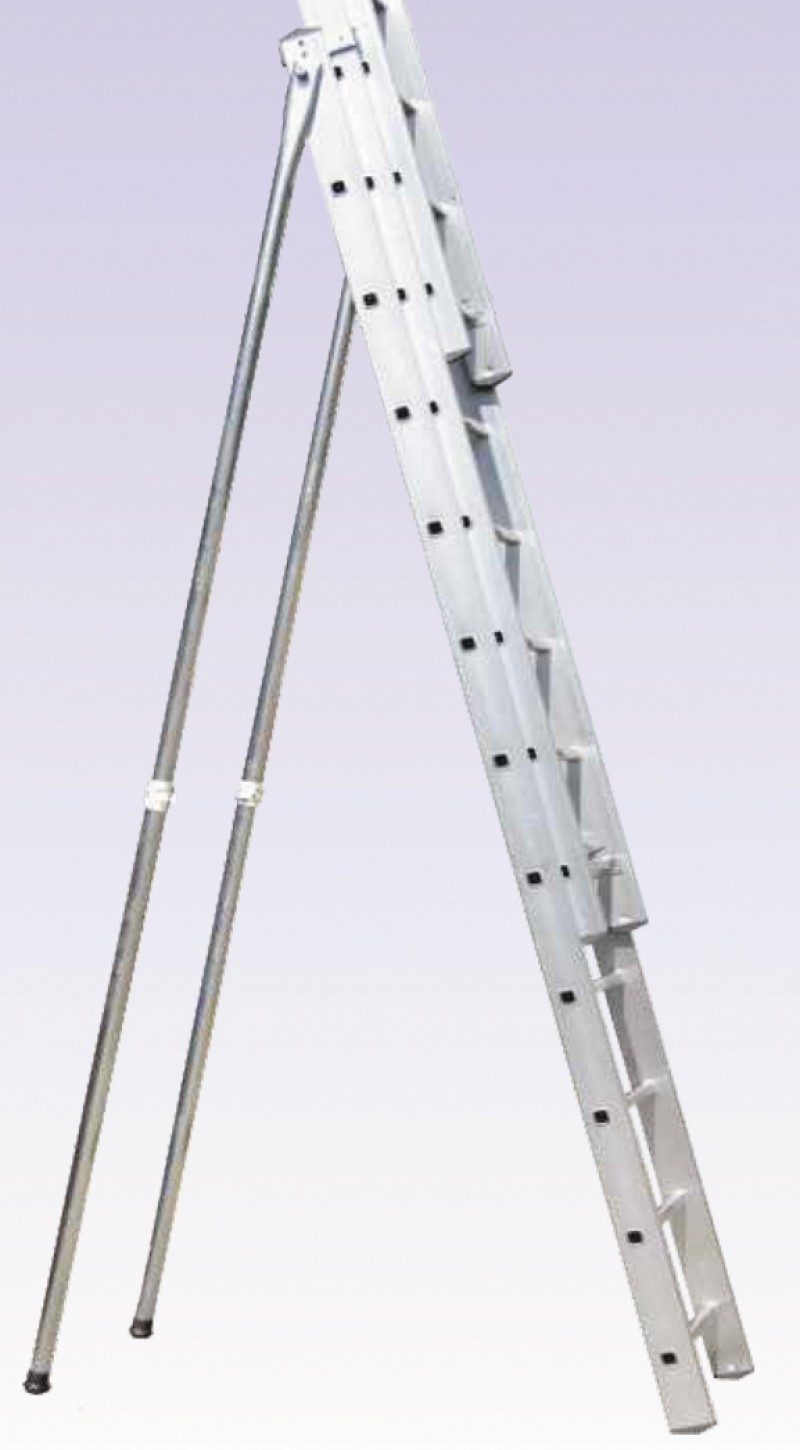

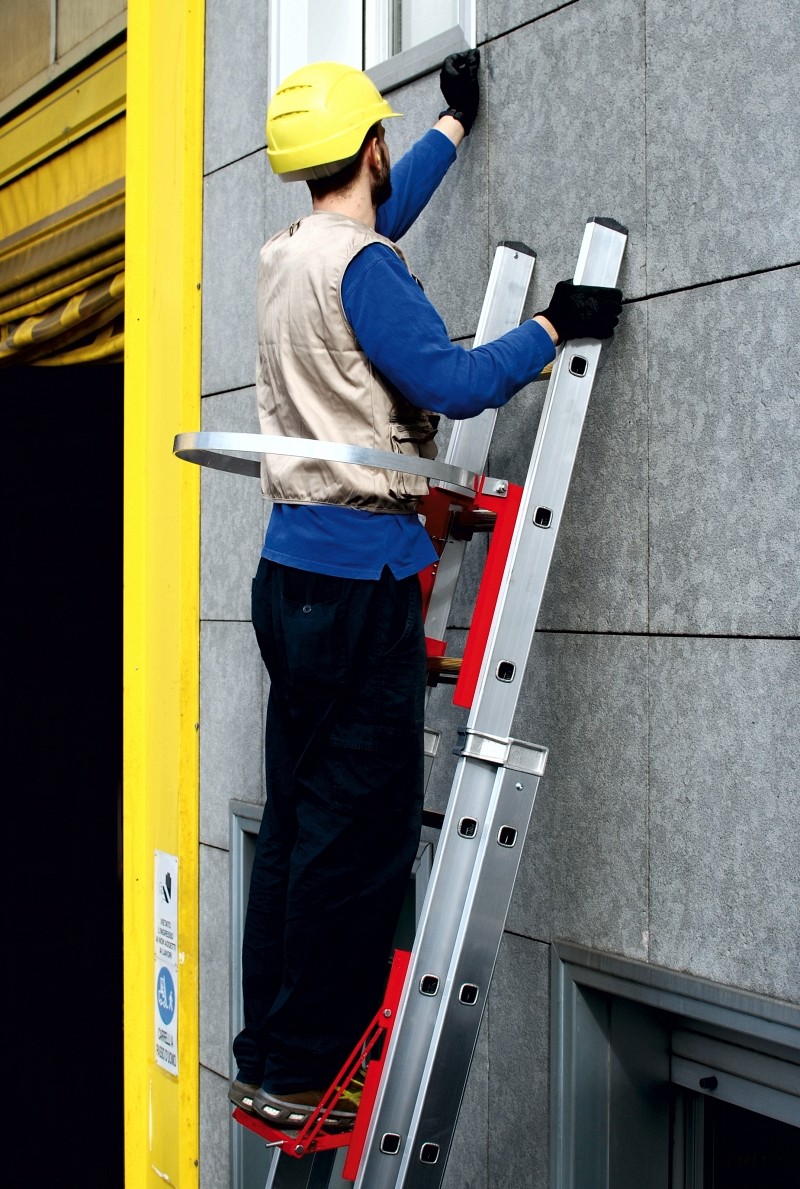

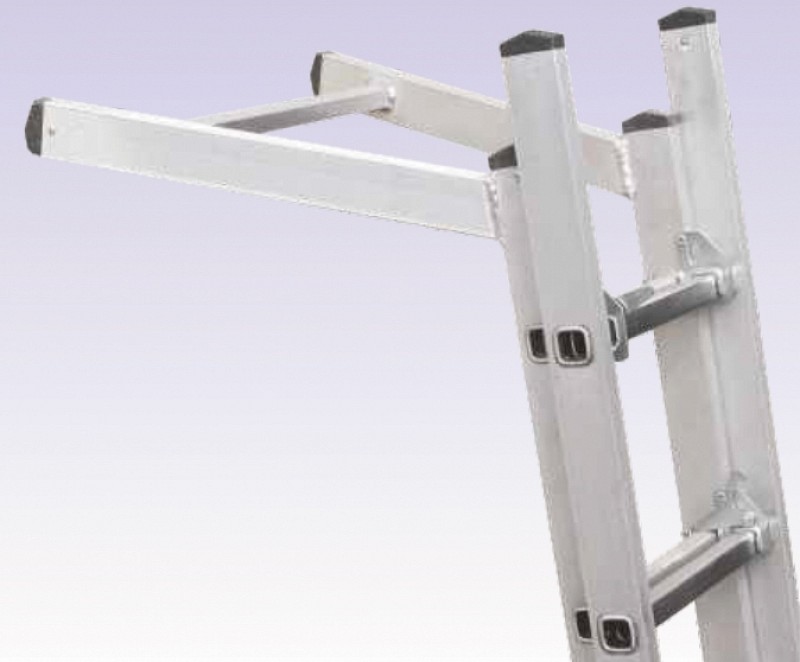

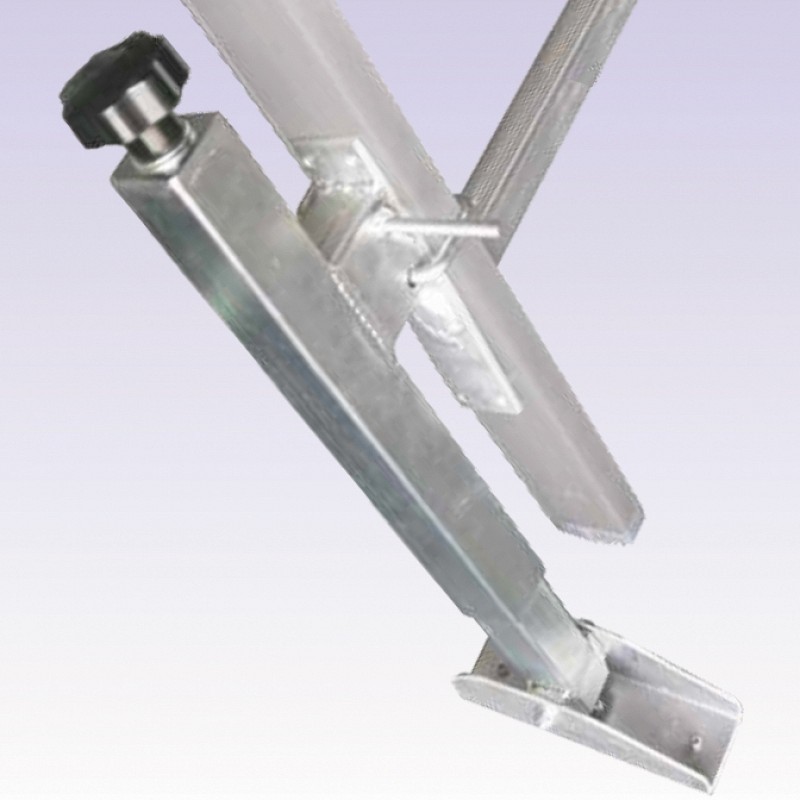

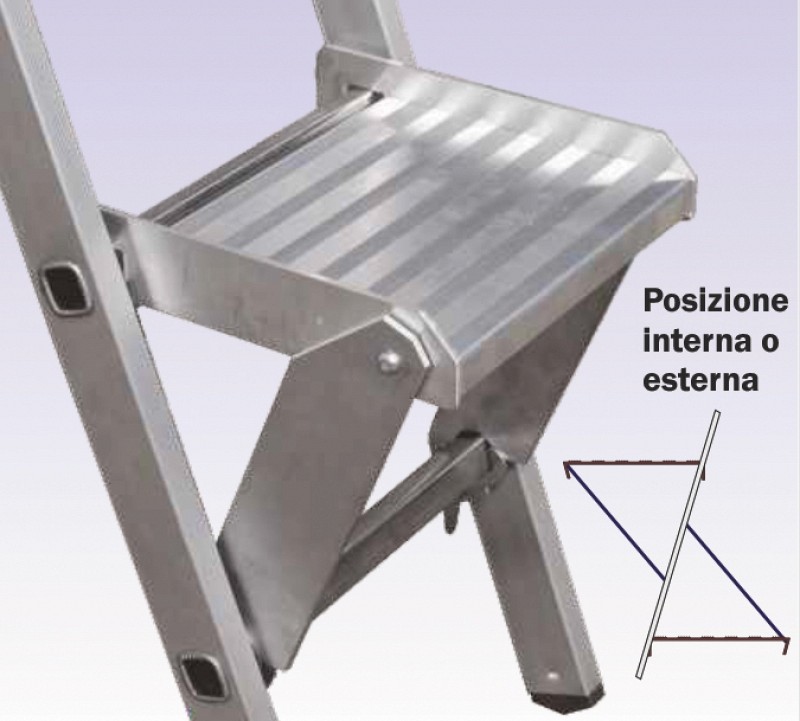

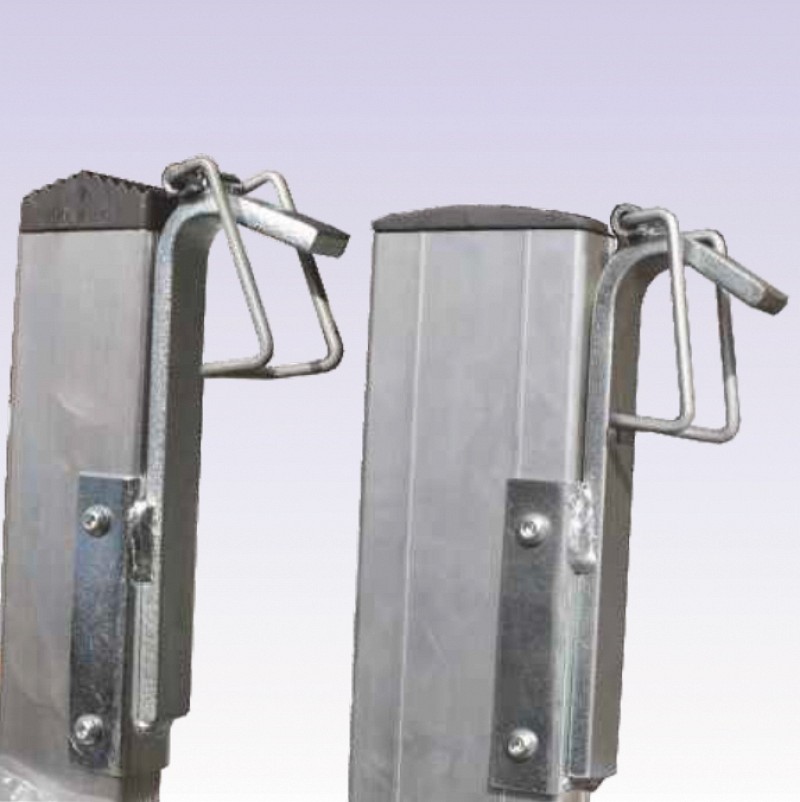

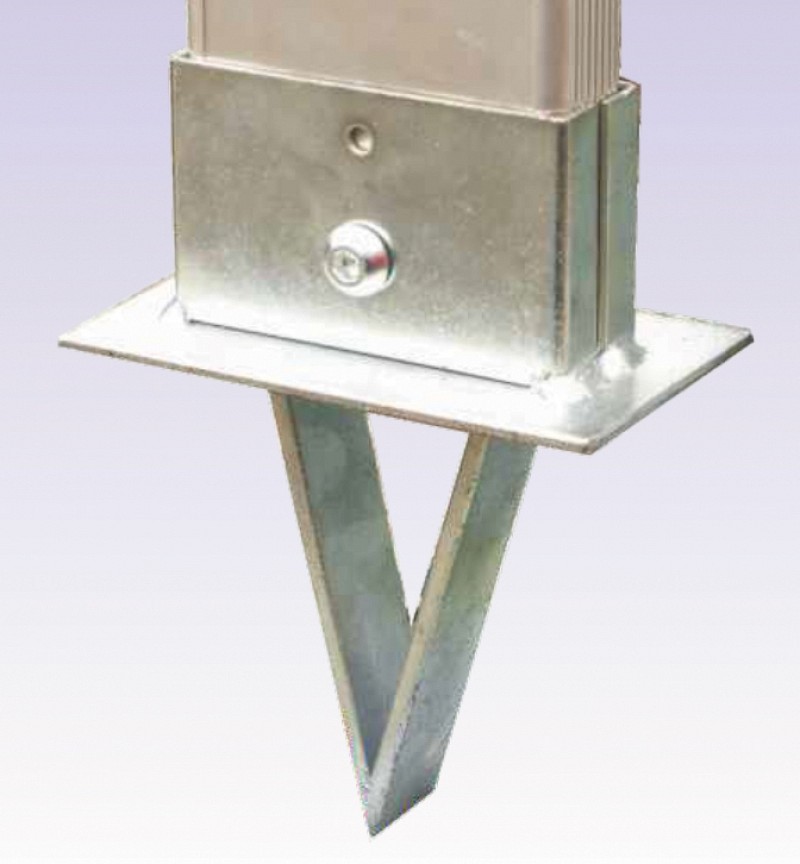

The product photo gallery also includes images of the optional accessories. Please refer to the descriptions below the photographs for more details.
Images of the products are symbolic.
Total steps n° |
Regulation |
Capacity kg |
Upright mm |

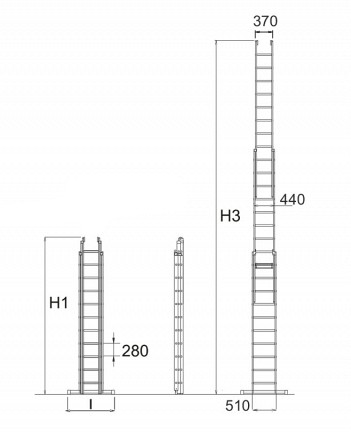

Length when folded H1 m |
Full length H m |
Base width I cm |
Width section 1°- 2°- 3° cm |
Weight kg |
Article No. |
8+8+8 |
EN 131 |
150 |
78 x 25 |
2,52 |
5,89 |
100 |
37/44/51 |
17 |
825508 |
10+10+10 |
EN 131 |
150 |
78 x 25 |
3,05 |
7,57 |
110 |
37/44/51 |
23,1 |
825510 |
12+12+12 |
EN 131 |
150 |
95 x 25 |
3,64 |
8,94 |
120 |
37/44/51 |
32 |
825512 |
14+14+14 |
EN 131 |
150 |
95 x 25 |
4,2 |
10,61 |
120 |
37/44/51 |
37 |
825514 |
