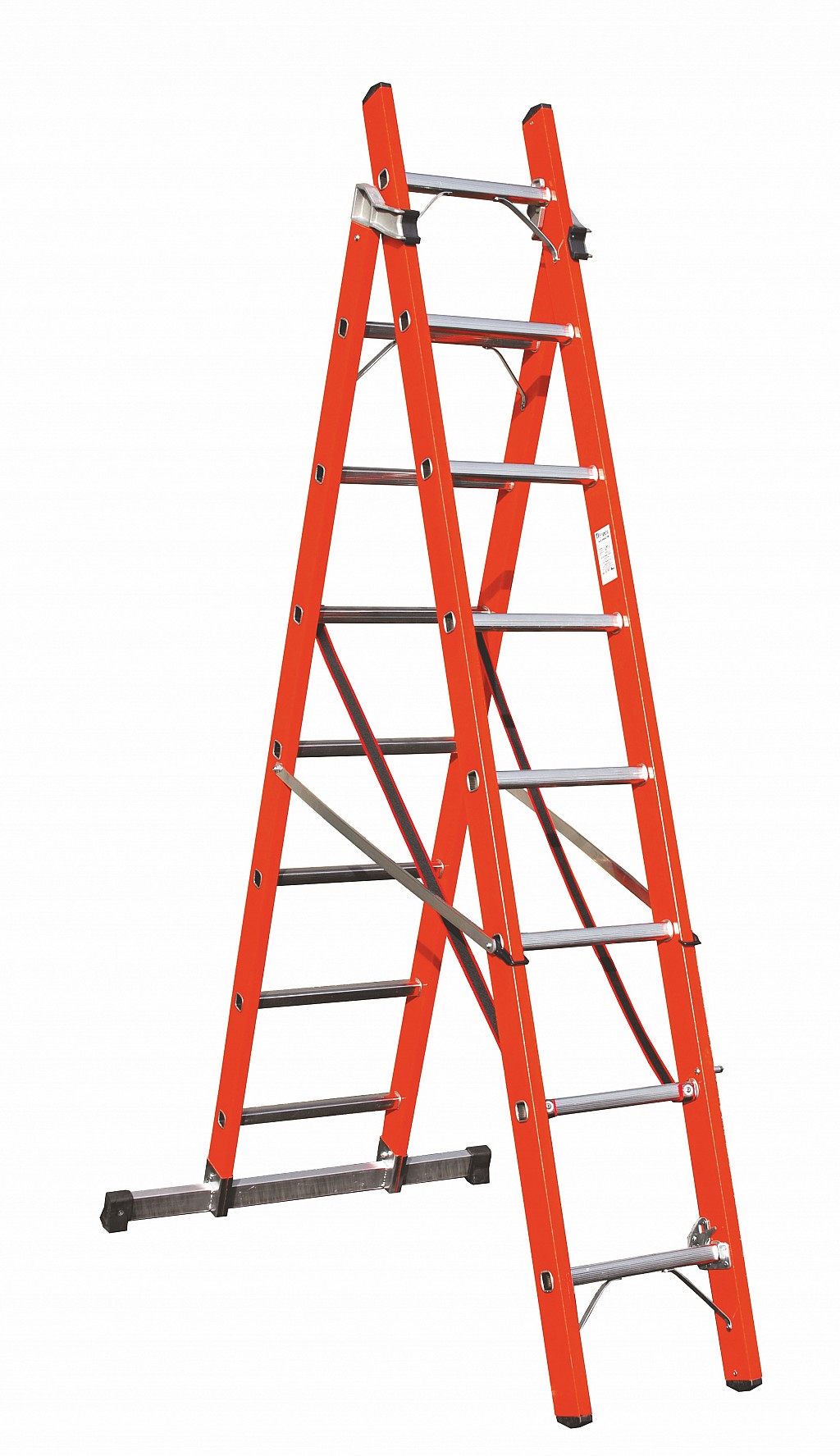

Two-section extension combination ladder V045

Code: 814506
Brand: Frigerio
Two section extension ladder type V045. It has rails made from non-conductive fiberglass, providing protection against electrical shocks. This extension ladder can be quickly adjusted into different work positions while always guaranteeing optimum stability and safety. In addition, the ladder can also be adapted for use on stairs or surfaces at different levels. This is a combination ladder that can be used as an extension ladder, straight leaning ladder, or step ladder. A ladder compliant with EN 131/1+2 adheres to stringent safety and durability standards. Additionally, ladders meeting EN 50528 and EN 61478 are specifically designed to provide insulation and protect users from electric shocks when working near low and high voltage electrical systems.
Read more
Ladder shape: A ladder
Ladder type: fiber glass
Availability: 10 do 14 dni
Price:
from 319,74 €

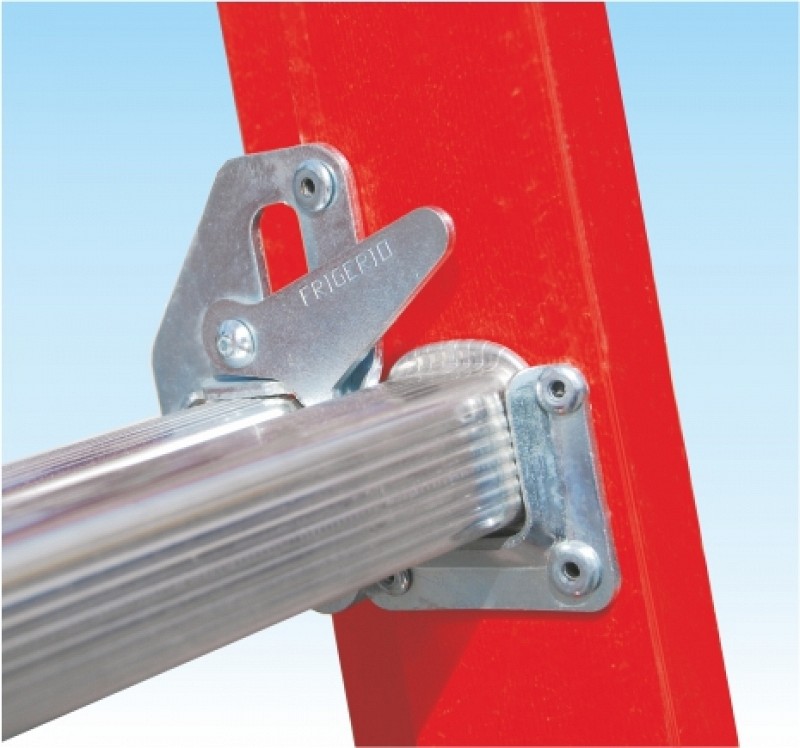

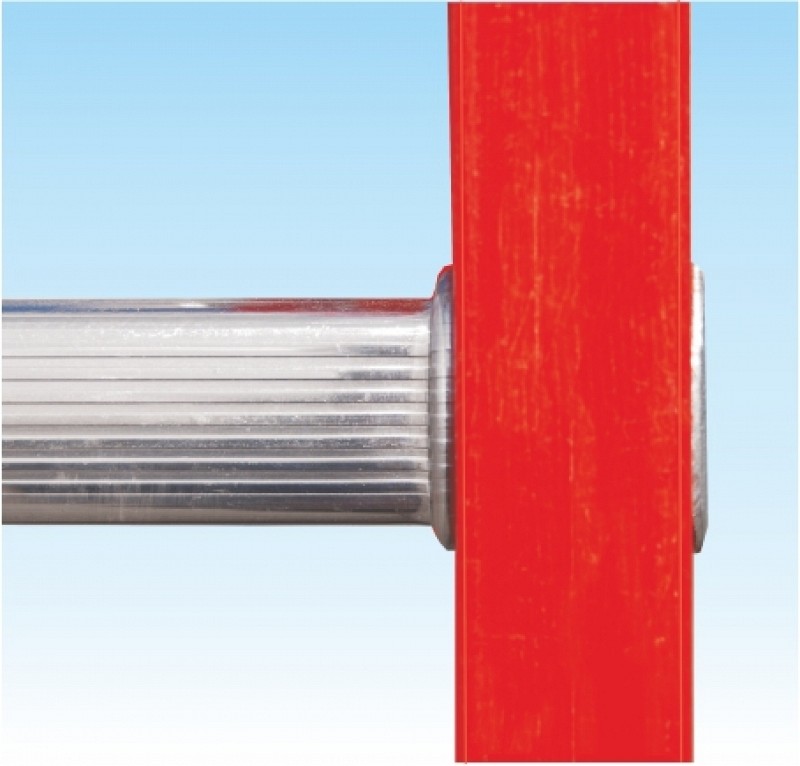

This extension ladder is built with non-slip rungs measuring 30x30 mm. Non-slip shoes at the bottom ensure stability and prevent slippage during use. This ladder also features a stabilizer base that provides additional stability.  An extension ladder has to be locked in place during use. Rung locks are a crucial safety feature that act as a locking mechanism that holds the ladder's sections in place when extended, ensuring the fly section does not slide down while in use. The fly on this type of extension ladder has to be extended manualy. This product is designed, tested and certified in compliance with the technical standards EN 131/1-2, EN 50528 and EN 61478. This ladder has a CE certificate, which provides you with protection under European law.

Ladder type V045 is a two section extension ladder. Extension ladders are ideal for projects that require work at higher elevations. This type of ladders come in two segments: the base is the section that rests against the support and is positioned on the ground and the fly is the extendable section of the ladder. Extension ladders are a type of straight/single/leaning ladders, which are not self-supporting and must lean up against a surface for support. We further categorize this ladder as a combination ladder, as it can be used as a step ladder (specifically, a twin ladder with steps on both sides) or as a straight extension ladder.

Optional accessories for ladder type V045 are available upon request:

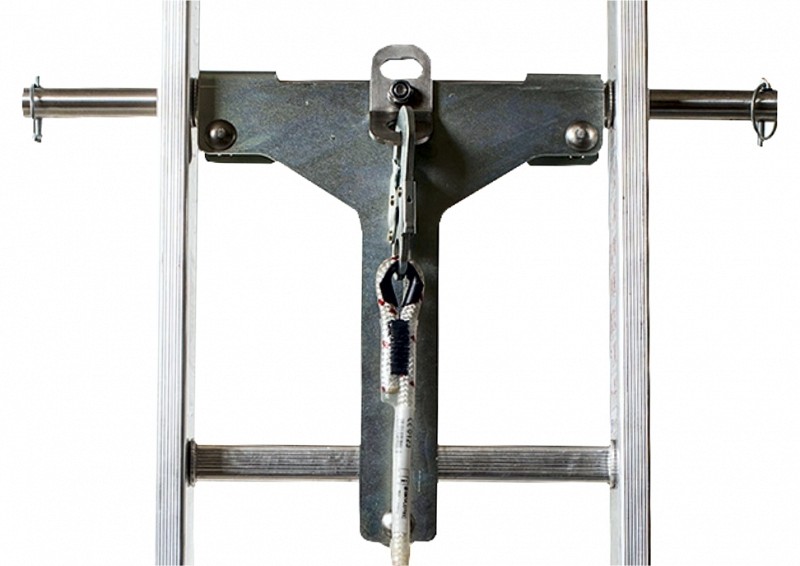

  • A ladder anchor secures ladders to walls and flat or sloping roofs and has points for attaching personal protective equipment

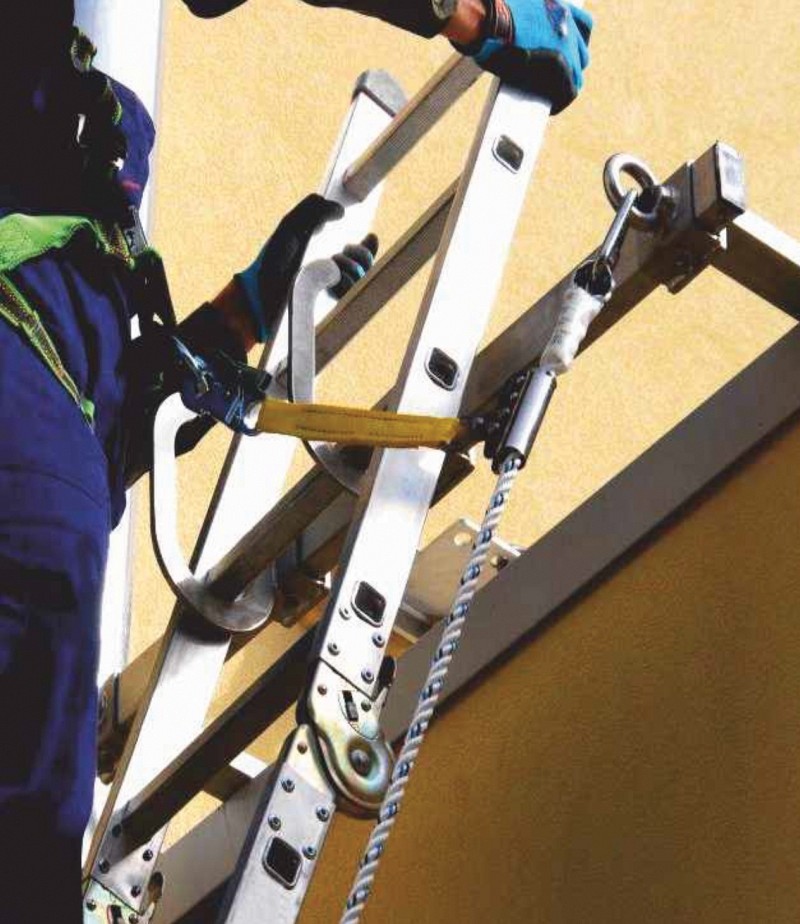

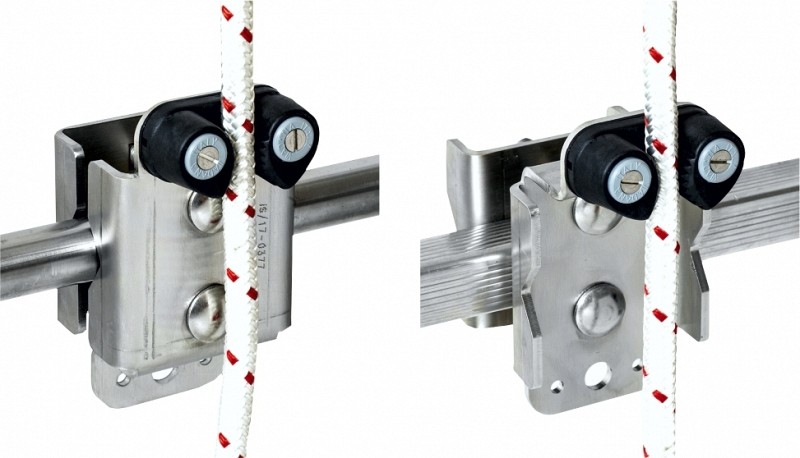

  • Fall arrest system provides safe ascent and descent. It’s only to be used on anchored walls

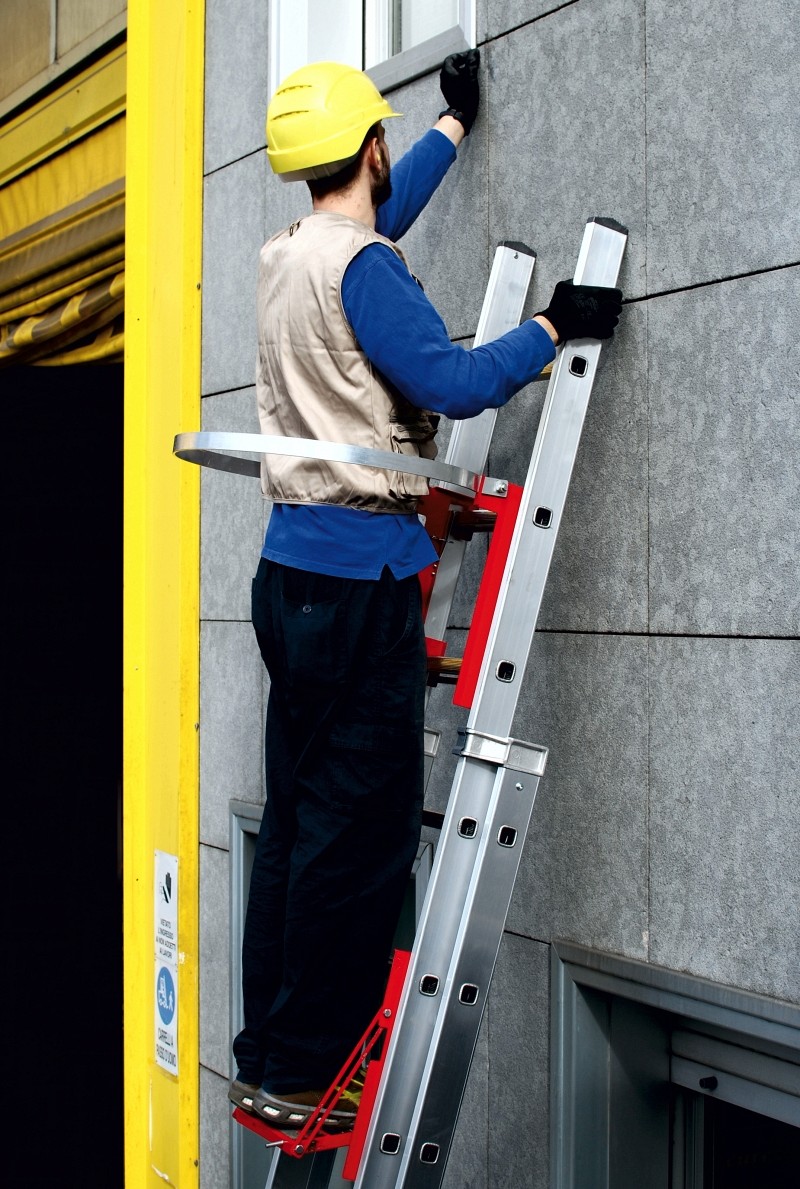

  • A bodyguard consists of a platform and a protective band with a 60 cm diameter

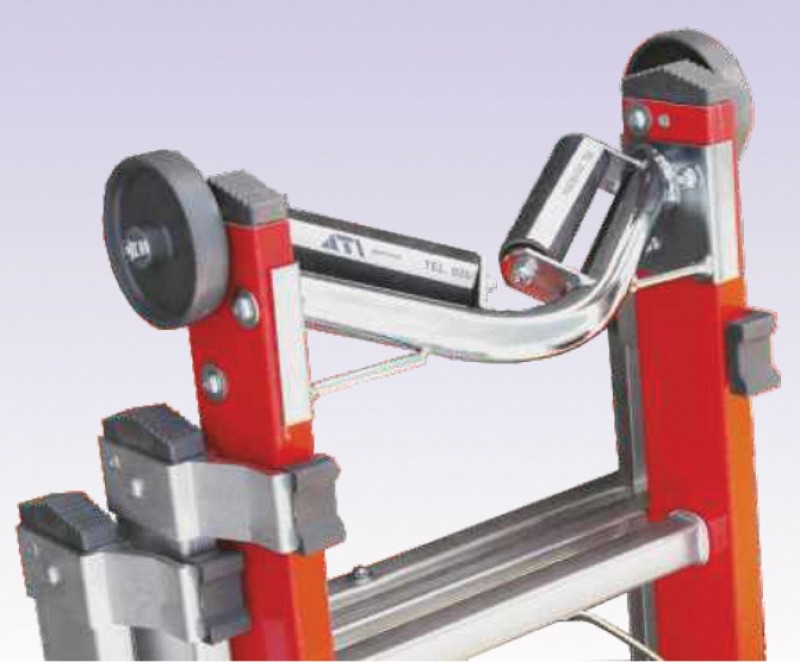

  • Support for ladder resting against a pole includes integrated wheels

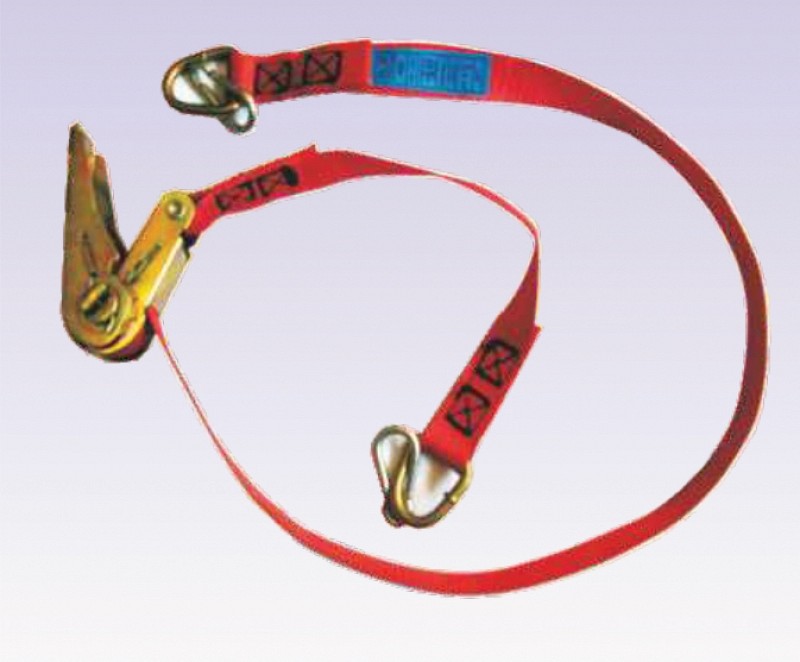

  • Lashings for securing the ladder to the pole

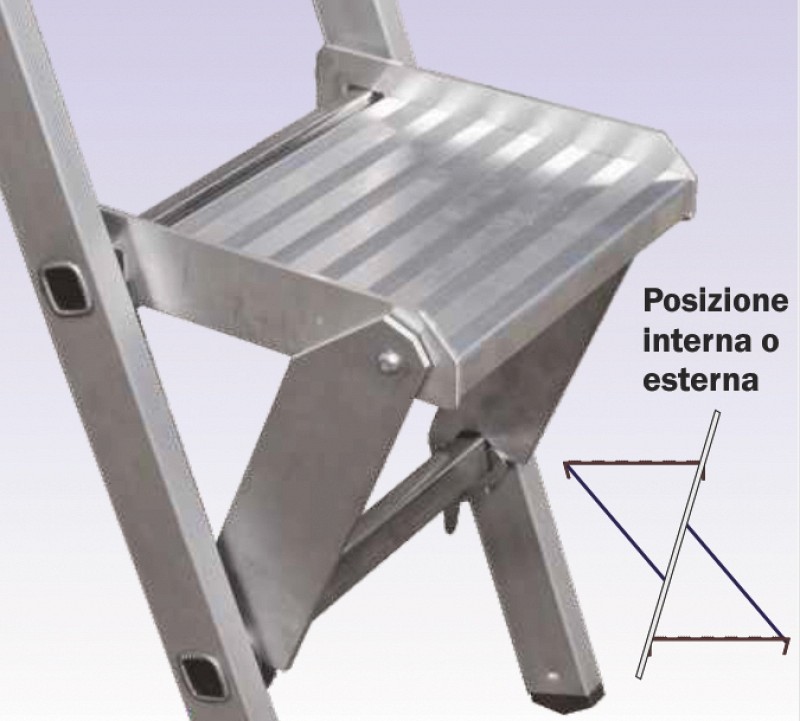

  • Additional platform
  • Internal ladder stabilizer
  • External ladder stabilizer

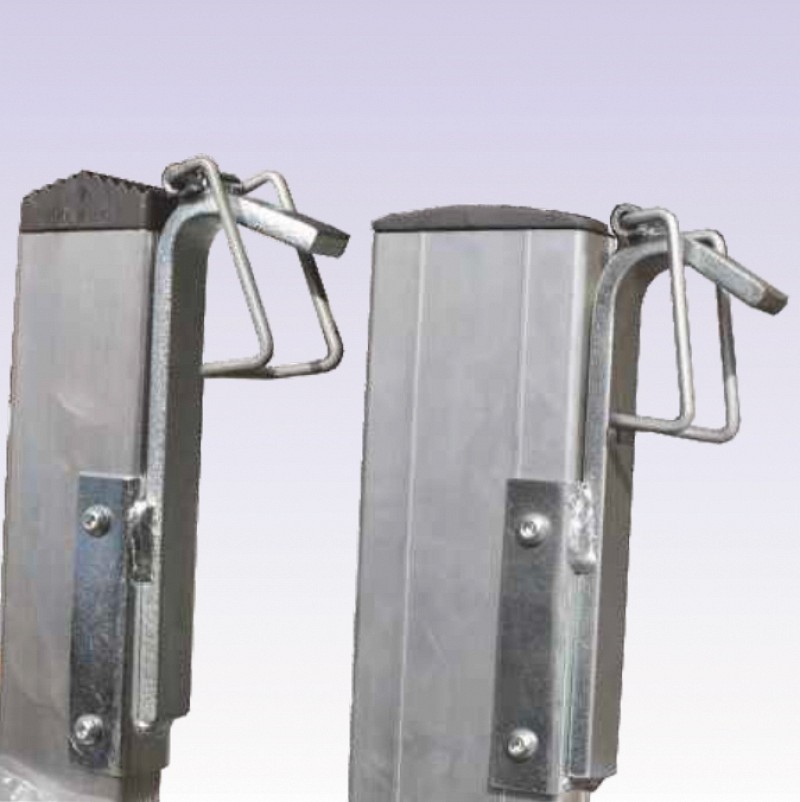

  • Ladder hook with a safety latch
  • Spike for penetrating soft or uneven ground

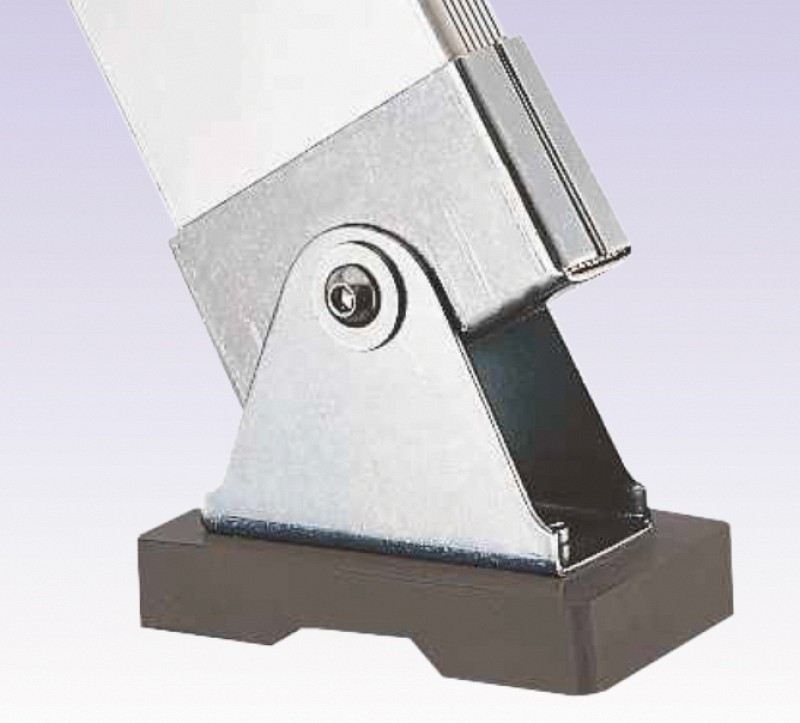

  • The ladder's swivel foot can pivot to adjusts to hard and uneven surfaces, providing stable footing on sloped ground

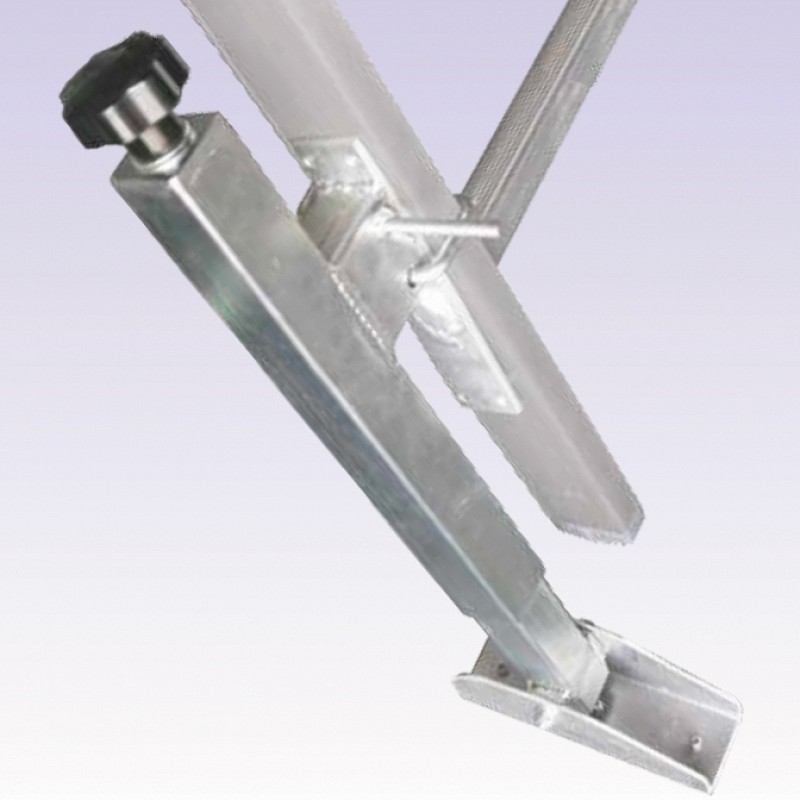

  • Ladder leg leveler adjusts in length to compensate for height differences up to 25 cm, leveling the ladder on uneven ground

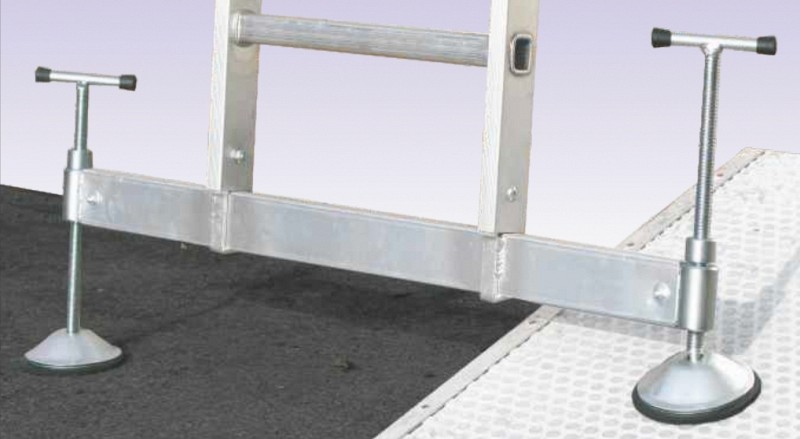

  • The bottom stabilizer base with leg levelers and swivel feet keeps ladders stable on uneven ground, compensating for height variations up to 25 cm and inclinations up to 25°
  • The bottom stabilizer base with leg levelers and swivel feet keeps ladders stable on uneven ground, compensating for height variations up to 25 cm and inclinations up to 25°

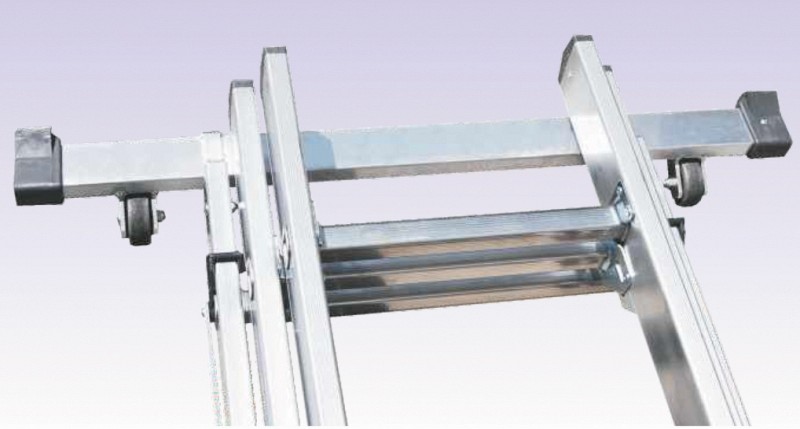

  • Stabilizer base with wheels, designed to facilitate easy transportation, particularly for long or heavy ladders. It minimizes for easy transportation and storage

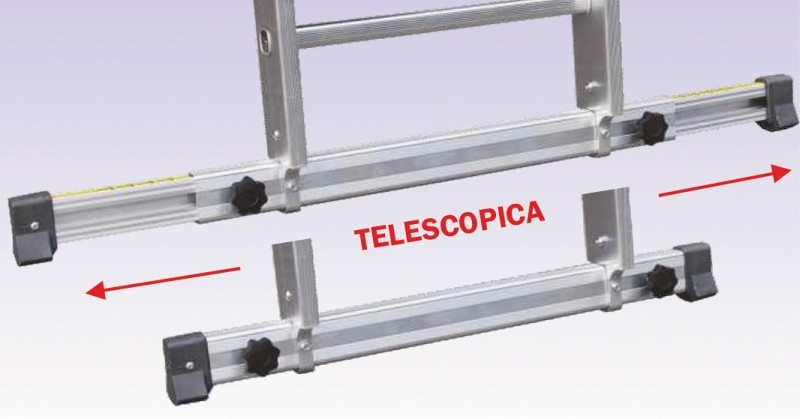

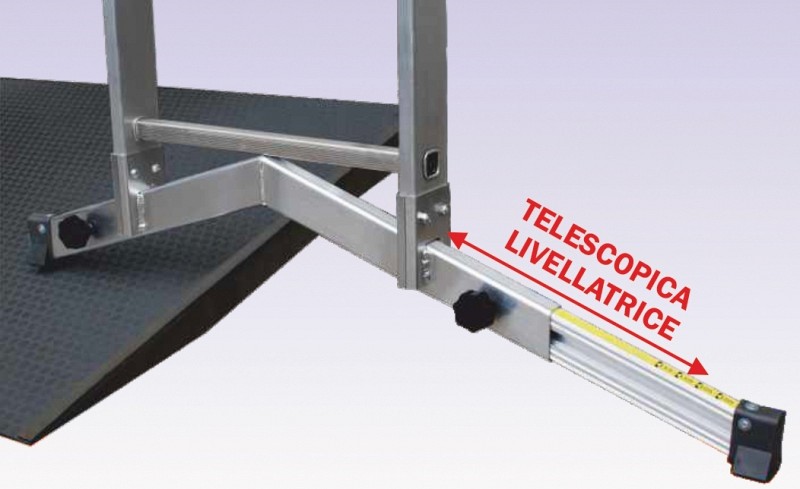

  • Extendable bottom stabilizer base for tackling uneven surfaces by adjusting its length, compensating for height differences up to 8 cm or a 4° inclination. It minimizes for easy transportation and storage

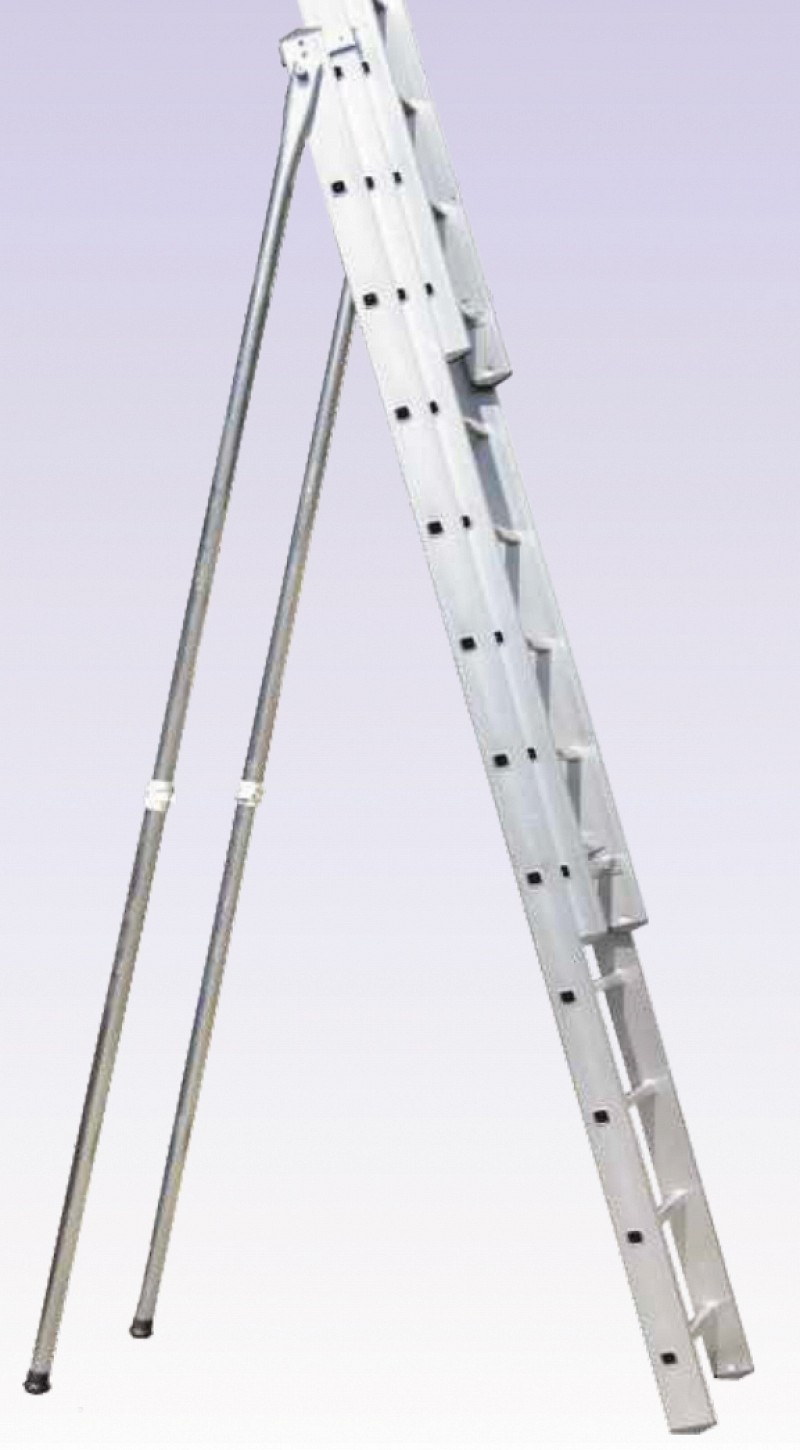

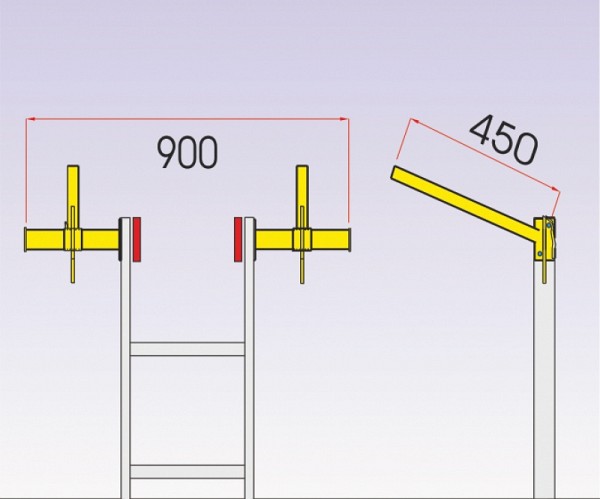

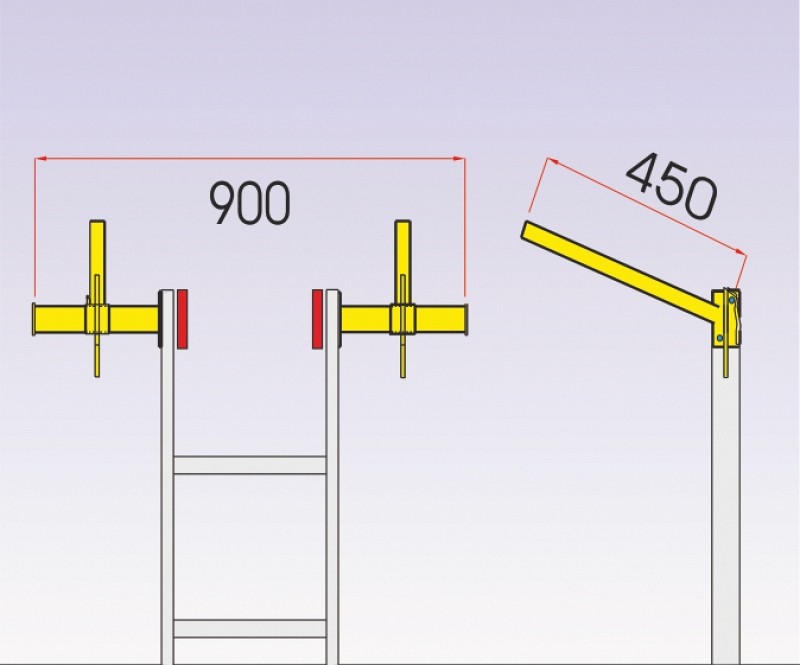

  • Outriggers

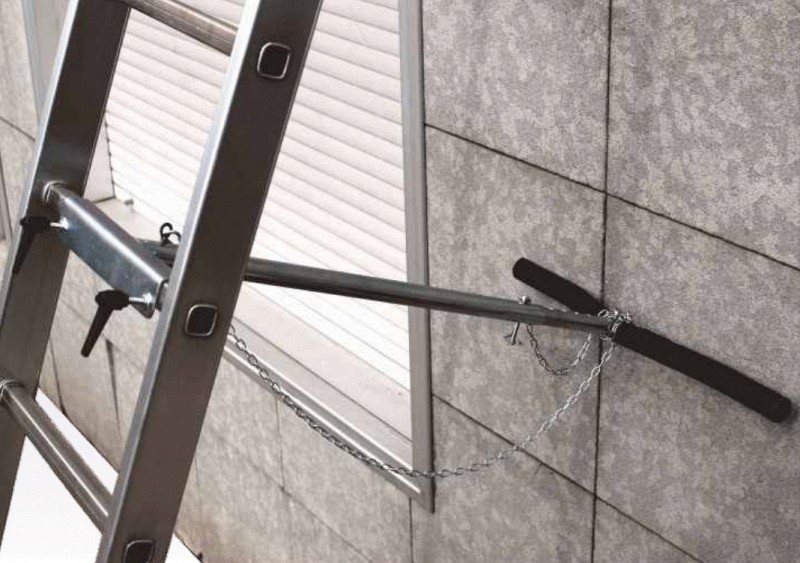

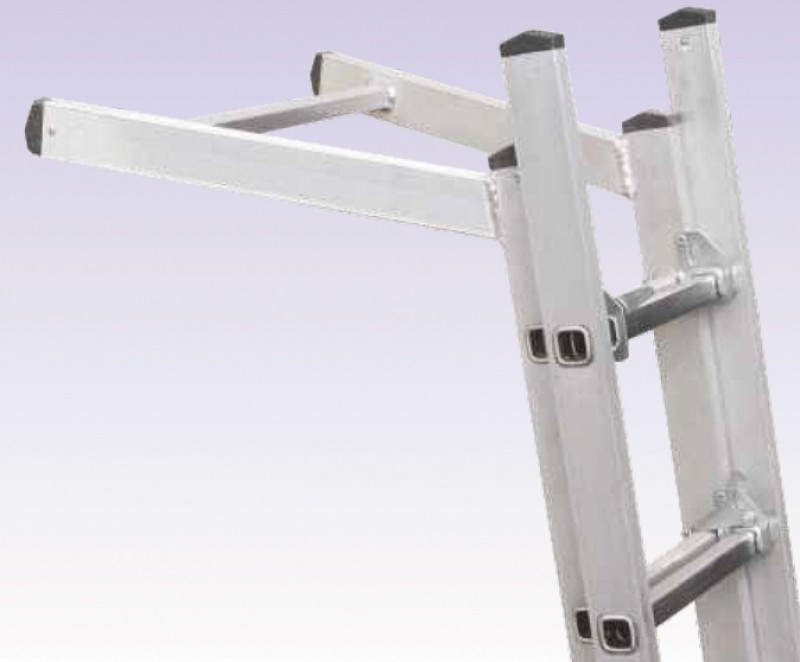

  • Wall support for extra stability

The product photo gallery also includes images of the optional accessories. Please refer to the descriptions below the photographs for more details.

  • Warranty: 10 year

Images of the products are symbolic.





Total

steps

Regulation

Normative

Capacity

kg.

Upright

mm

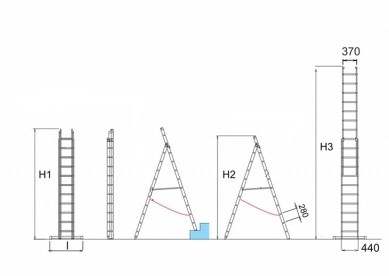

Length when folded

H1   m

Trestle height

H2   m

Full

Length

H3   m

Base width

I   cm

Width section

 1°- 2° cm.

Weight

kg.

Article No.

8+8

EN 131

150

58 x 26

2,42

2,29

4,08

80

38/45

16

814508

9+10

EN 131

150

78 x 26

2,98

2,82

4,94

90

38/45

19

814510

11+12

EN 131

150

78 x 26

3,54

3,35

6,06

100

38/45

23,4

814512

13+14

EN 131

150

78 x 26

4,1

3,89

7,18

110

38/45

27

814514

16+16

EN 131

150

95 x 26

4,64

4,39

8,28

120

38/45

31

814516
