Eye container hook CWH

Code: 410406

Brand: P TEAM

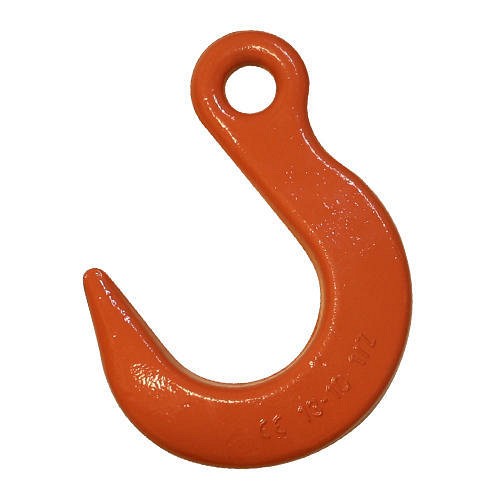

Eye container hook CWH. Hooks without safety latch, like foundry hook type CWH, can be used for special applications where automated systems are used to deposit the load without manual assistance from personnel. Foundry hooks have an exceptionally wide hook opening, allowing them to fit around many large objects that standard lifting hooks cannot fit. Eye Hooks allow for much more flexibility and efficiency in positioning an attachment. They have a round attachment point and are permanent solutions. On an eye hook, a chain or fittings are welded for a permanent connection to the sling.

Hook type: hook with safety latch

Working load limit:

Reset options

In Stock

Price:

from 31,62 €

Add to cart

You have a question about this product?

More details

Please consider the special notes for the use of hooks without safety latch. It is strictly prohibited to use these hooks during construction works. Galvanized latches are protected against elements that may cause accelerated corrosion or deterioration to the product. Because of the permanent nature of an eye hook, if the hook becomes damaged, the whole sling has to be failed out upon inspection and removed from service. The product is designed, tested and certified in compliance with the tehnical directives EN 1677.

Warranty: 1 year

Images of the products are symbolic.

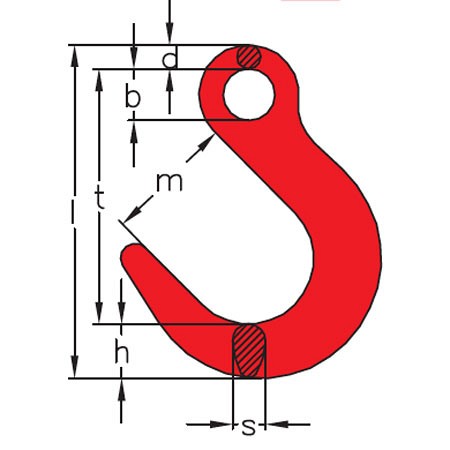

The table presents eye container hooks type CWH, their dimensions and other technical characteristics.

Type	Working load limit kg	b mm	d mm	h mm	l mm	m mm	s mm	t mm	Weight kg	Art. No.
Type	Working load limit kg	b mm	d mm	h mm	l mm	m mm	s mm	t mm	Weight kg	Art. No.
CWH 6/7-8	1500	18	10	26	132	49	20	96	0,5	410406
CWH 8-8	2000	25	11,5	26	160	63	21	122	0,8	410408
CWH 10-8	3150	32	14	37	204	76	31	153	2,0	410410
CWH 13-8	5300	40	18	42	241	86	37	181	3,5	410413
CWH 16-8	8000	35	24	50	281	100	45	207	5,5	410416
CWH 18/20-8	12500	40	26	67	328	112	60	235	10,0	410418
CWH 22-8	15000	47	30	70	365	124	65	265	13,6	410422
CWH 26-8	21200	54	38	80	419	143	73	305	20,0	410426
