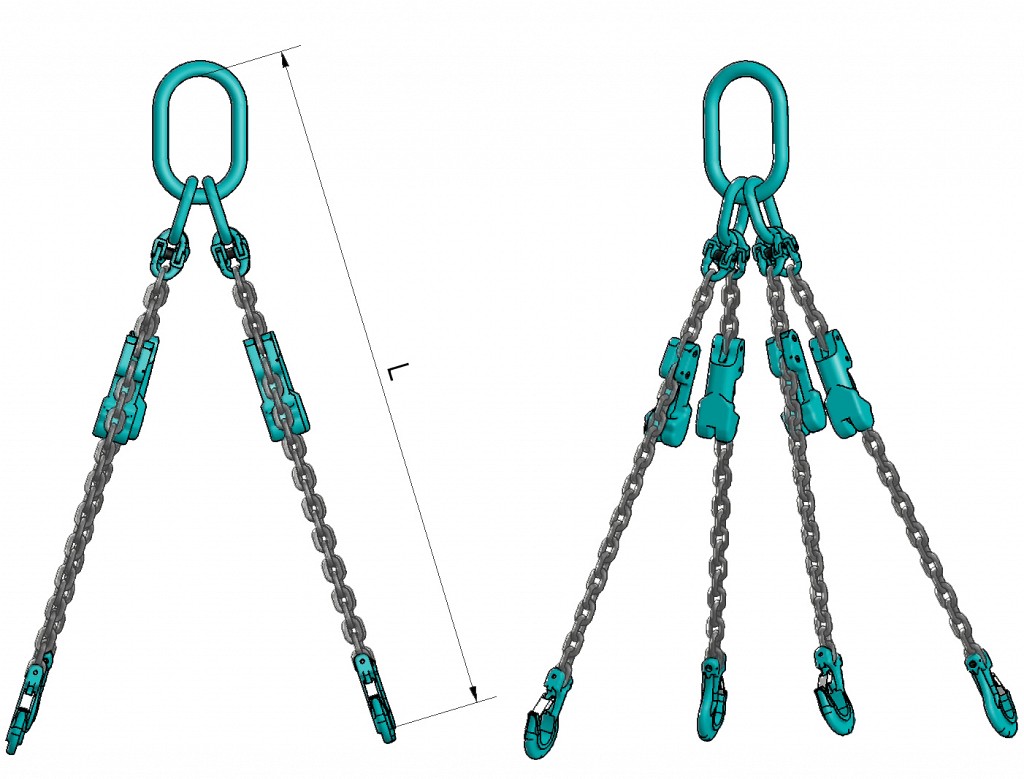

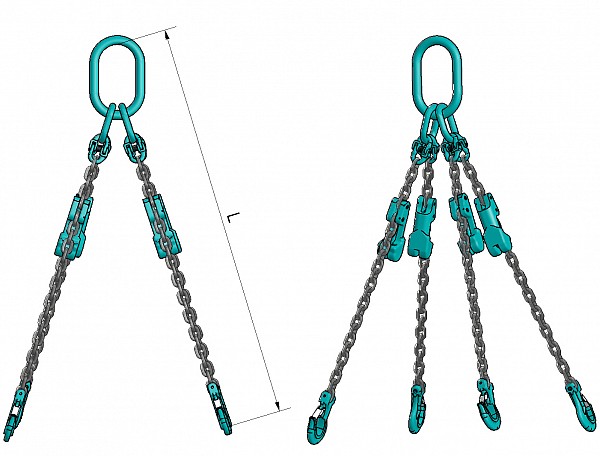

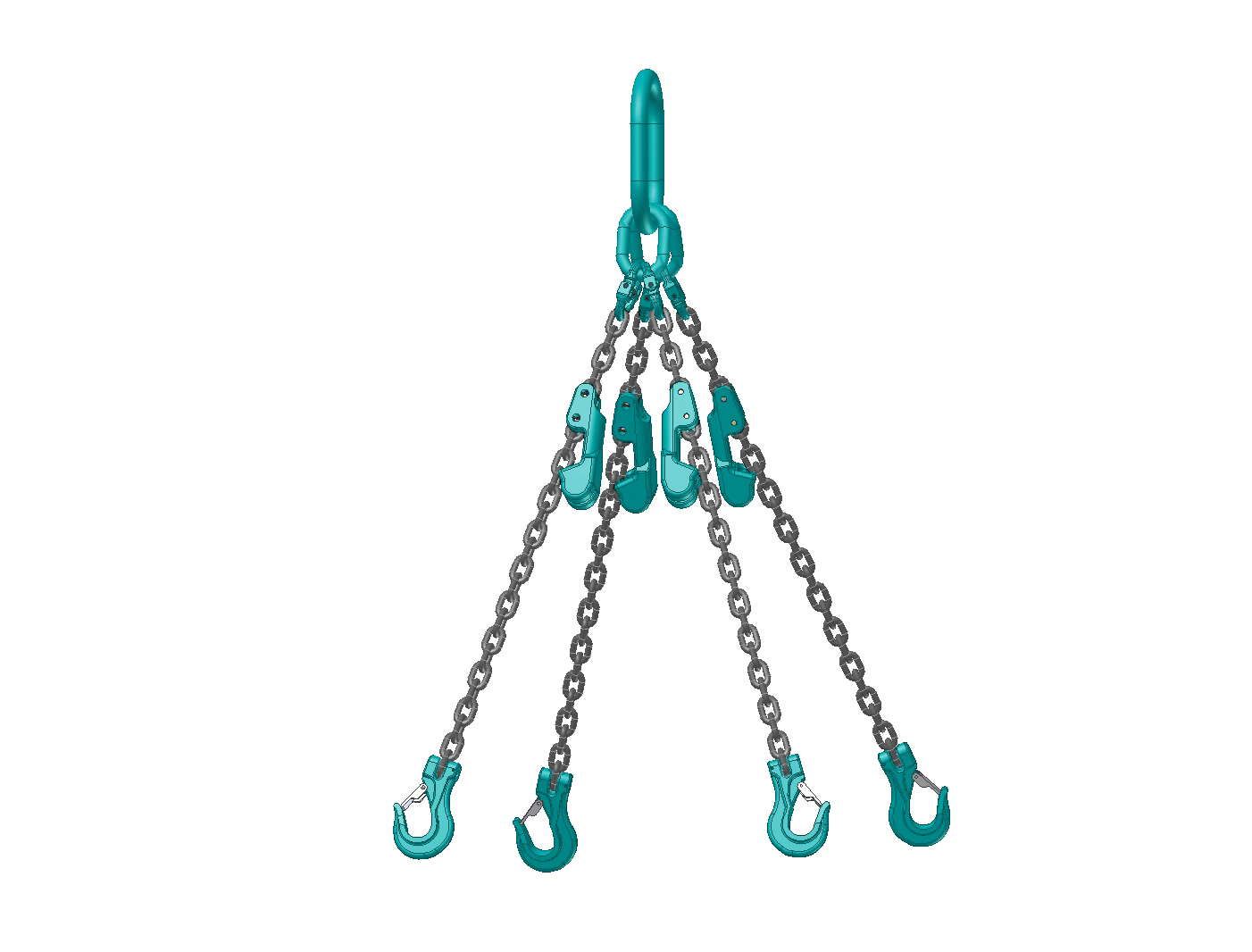

4-legged lifting chain with shortening hooks 412, grade 100

This product is a four-leg chain sling with shortening links. This chain sling includes a master link, shortening links, and a hook with a safety latch. The chain sling may only be shortened using shortening links. This is a grade 100 product. The store offers lifting chain slings in grades 80, 100, and 120. A higher grade number indicates the use of higher quality steel, resulting in increased tensile strength and a higher working load limit. Chain slings are manufactured in Slovenia and made in accordance with the 818 standard. They have a safety factor of 4:1. Lifting slings can be used in temperatures ranging from -20°C to +150°C, but it is recommended to consult the manufacturer before using them in temperature thresholds. Each sling is supplied with instructions for use and a CE declaration of conformity. The product can be customized to meet specific requirements.

• Warranty: 1 year
• Warning: The working load limits for different lifting methods may vary from the declared limits, necessitating strict adherence to the operating instructions! Please refer to the table below for details regarding the WLL for different lifting configurations.

Images of the products are symbolic.

The table presents working load limits for chain slings type VB 412, grade 100.

Angle	0°-45°	45°- 60°	0°- 45°	45°- 60°
F	2.1	1.5	1.7	1.2
Diameter (mm)	Working load limit (kg)
6 7	3000 4000	2100 2800	2300 3200	1680 2200
8 10	5300 8500	3800 6000	4200 6800	3000 4800
13 16	14000 21200	10000 15000	11300 17000	8000 12000
18 19	26200 29400	18700 21000	21200 23800	15000 16800
20 22	33500 40000	23600 28000	27000 32000	19000 22000
26	56000	40000	45000	31000
