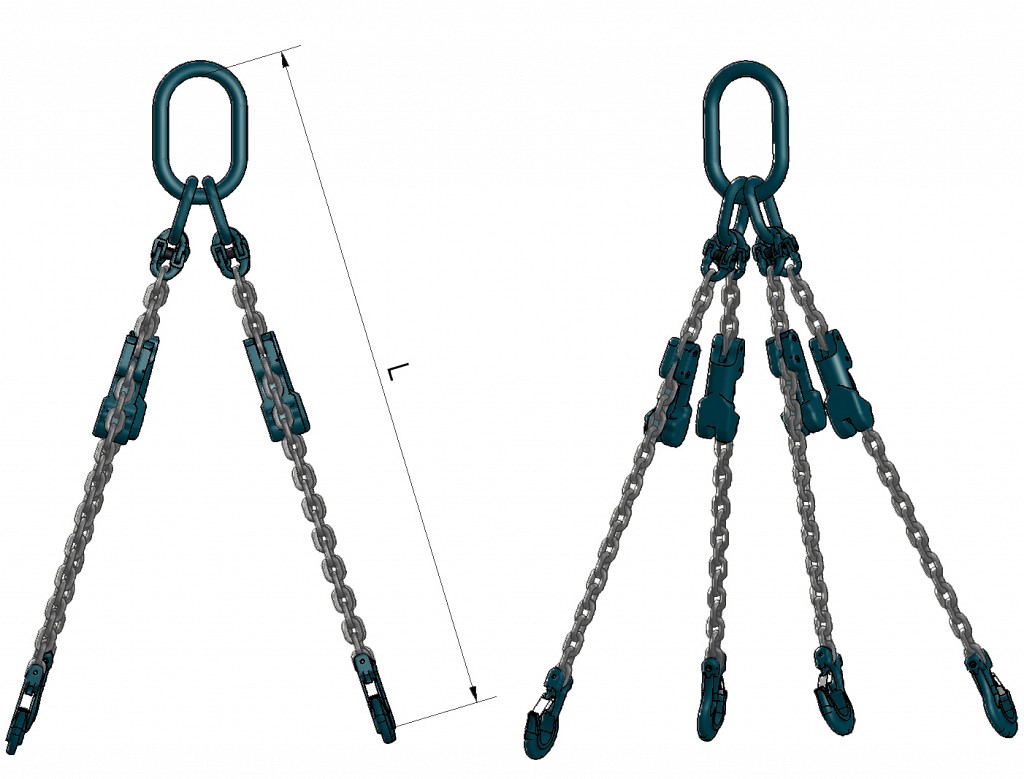

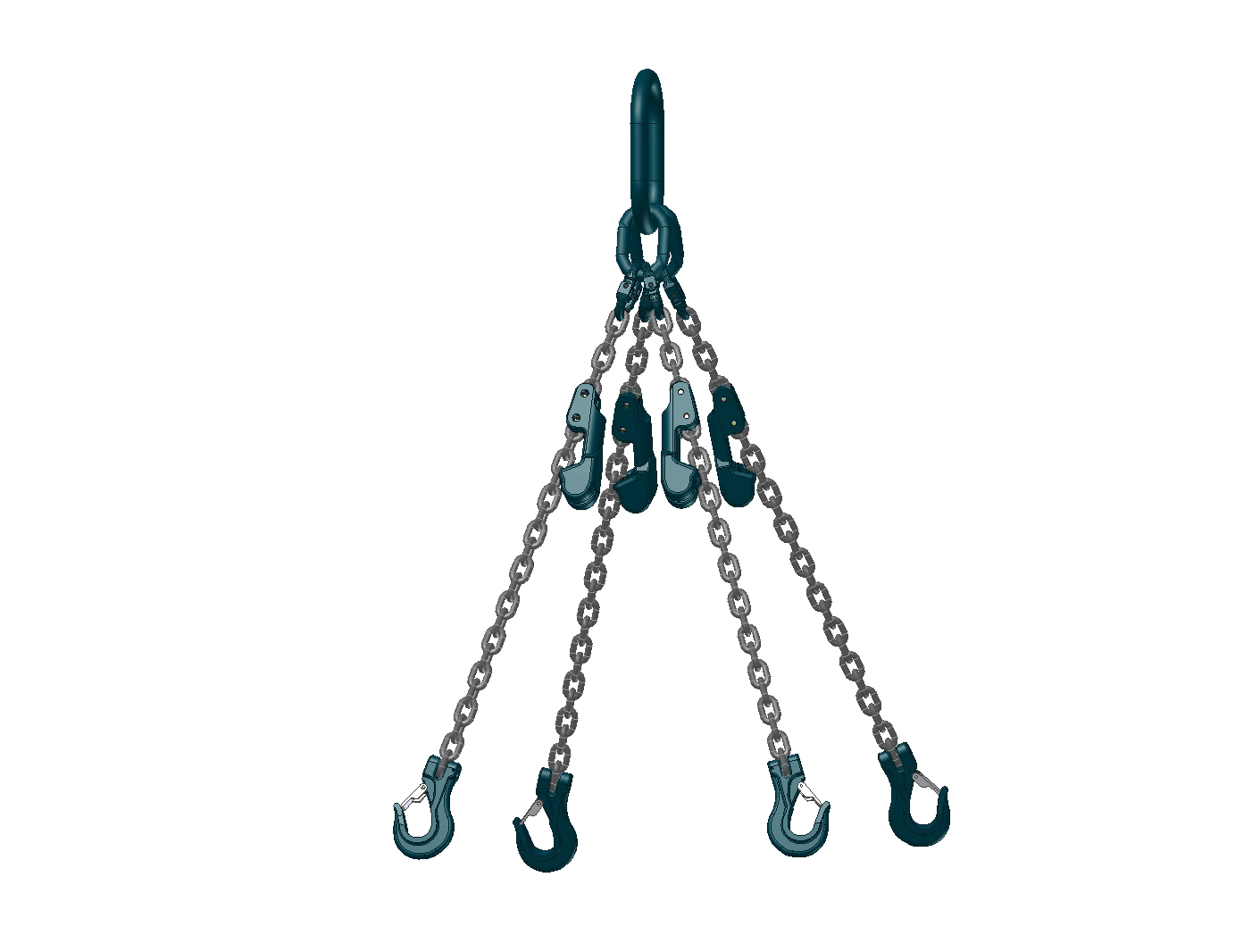

4-legged lifting chain with shortening hooks VB 412, grade 120

This product is a four-leg chain sling with shortening links. This chain sling includes a master link, shortening links, and a hook with a safety latch. The chain sling may only be shortened using shortening links. This is a grade 120 product. The store offers lifting chain slings in grades 80, 100, and 120. A higher grade number indicates the use of higher quality steel, resulting in increased tensile strength and a higher working load limit. Chain slings are manufactured in Slovenia and made in accordance with the 818 standard. They have a safety factor of 4:1. Lifting slings can be used in temperatures ranging from -20°C to +150°C, but it is recommended to consult the manufacturer before using them in temperature thresholds. Each sling is supplied with instructions for use and a CE declaration of conformity. The product can be customized to meet specific requirements.

• Warranty: 1 year
• Warning: The working load limits for different lifting methods may vary from the declared limits, necessitating strict adherence to the operating instructions! Please refer to the table below for details regarding the WLL for different lifting configurations.

Images of the products are symbolic.

The table presents working load limits for chain slings type VB 412, grade 120.

Angle	0°-45°	45°- 60°	0°- 45°	45°- 60°
F	2.1	1.5	1.7	1.2
Diameter (mm)	Working load limit (kg)
8- 12	6300	4500	5100	3600
10- 12	10600	7500	8500	6000
13- 12	17010	12150	13800	9700
