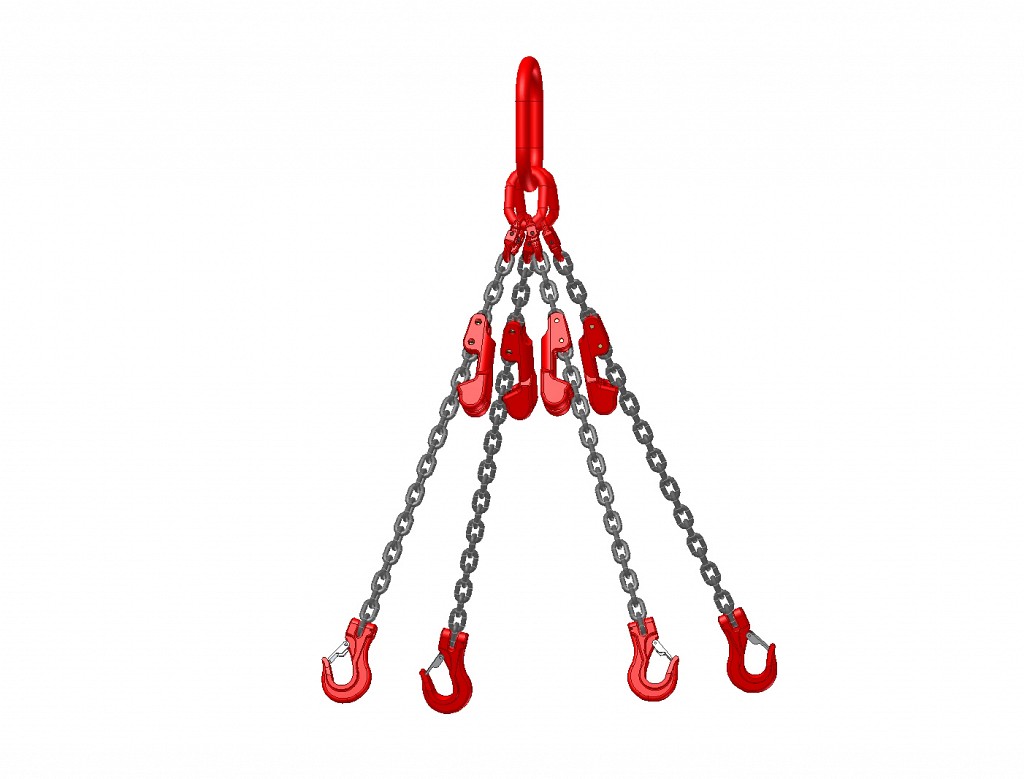

4-legged lifting chain with shortening hooks VB 412, grade 80

This product is a four-leg chain sling with shortening links. This chain sling includes a master link, shortening links, and a hook with a safety latch. The chain sling may only be shortened using shortening links. This is a grade 80 product. The store offers lifting chain slings in grades 80, 100, and 120. A higher grade number indicates the use of higher quality steel, resulting in increased tensile strength and a higher working load limit. Chain slings are manufactured in Slovenia and made in accordance with the 818 standard. They have a safety factor of 4:1. Lifting slings can be used in temperatures ranging from -20°C to +150°C, but it is recommended to consult the manufacturer before using them in temperature thresholds. Each sling is supplied with instructions for use and a CE declaration of conformity. The product can be customized to meet specific requirements.

• Warranty: 1 year
• Warning: The working load limits for different lifting methods may vary from the declared limits, necessitating strict adherence to the operating instructions! Please refer to the table below for details regarding the WLL for different lifting configurations.

Images of the products are symbolic.

The table presents working load limits for chain slings type VB 412, grade 80.

Angle	0°-45°	45°- 60°	0°- 45°	45°- 60°
F	2.1	1.5	1.7	1.2
Diameter (mm)	Working load limit (kg)
6 7	2360 3150	1700 2240	1900 2650	1320 1800
8 10	4250 6700	3000 4750	3400 5300	2400 3750
13 16	11200 17000	8000 11800	9000 13600	6300 9500
18 19	21200 23600	15000 17000	17000 19000	1200 13200
20 22	26500 32000	18000 22400	21200 25500	15000 18000
26 32	45000 63000	31500 47500	35500 54000	25000 38400
