Eye bolt TP

Code: 465501

Brand: P TEAM

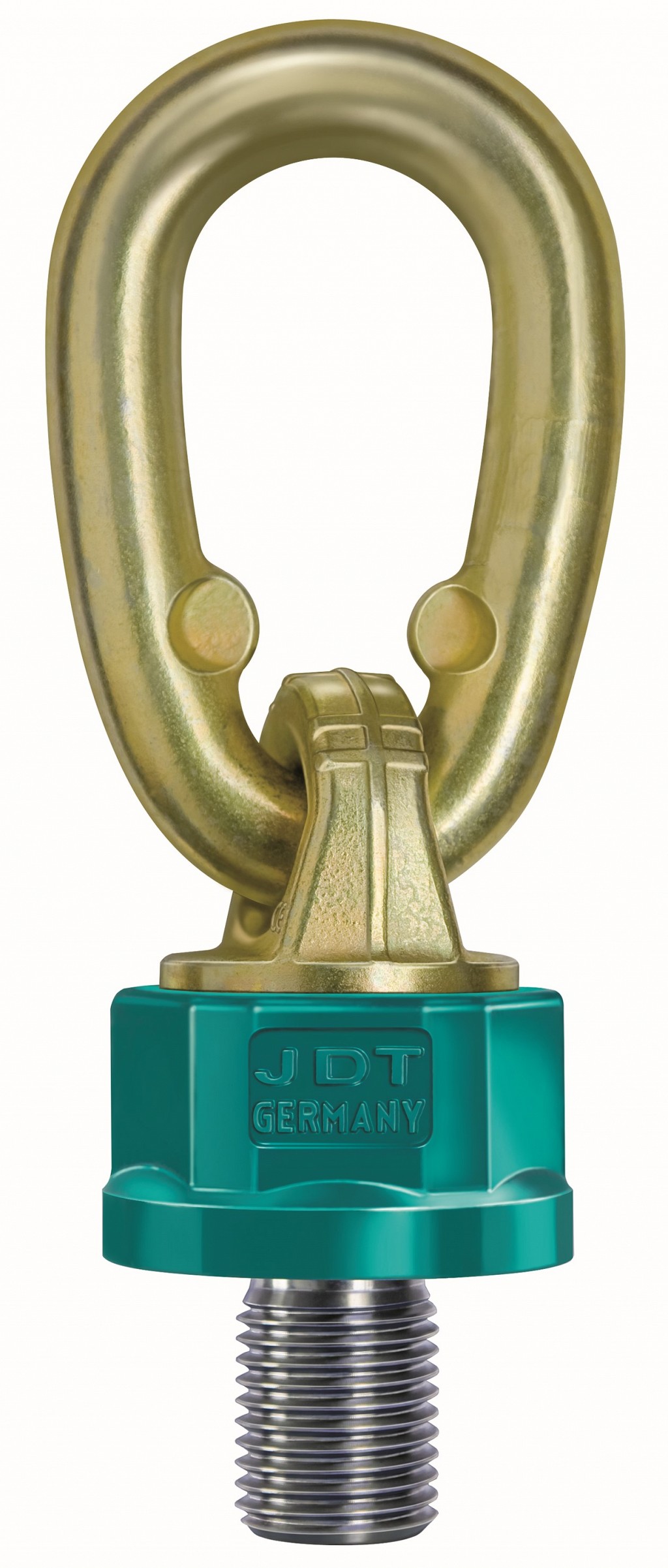

The TP eye bolt is a double swivel hoist ring designed for safely lifting loads at various angles. The bail on this double swivel eye bolt can pivot 180°, and the body can rotate 360°, allowing lifting from any direction. Upon lifting, this flexibility ensures that the swivel eye bolt completely aligns with the lifting chain. The double swivel function of the TP eye bolt makes it ideal for safe and efficient lifting and maneuvering of loads in different directions. The galvanized coating on this product provides an optimal corrosion protection.

Thread:

Working load limit:

Reset options

In Stock

Price:

from 61,00 €

Add to cart

You have a question about this product?

More details
Specifications

TP double swivel hoist ring can pivot 180°, and rotate 360°, making it possible to lift from any direction. This flexibility ensures that the swivel ring aligns completely with the lifting chain. The TP eye bolt is approved for all lifting configurations from 0° to 90° and can be used in a temperature range from -40°C to +200°C. It is manufactured in accordance with the Machinery Directive 2006/42/EC and carries the CE mark. It complies with the EN 1677-1,5; EN 818-1,7; EN 13155; EN 1889 standards and has a safety factor of 4:1, ensuring safety and reliability. We offer the TP product in both male-double swivel eye bolt and female-double swivel eye nut forms. Additionally, there is a version available that can be welded.

Warranty: 1 year
Warrning: This device is not suitable for rotation during loading!

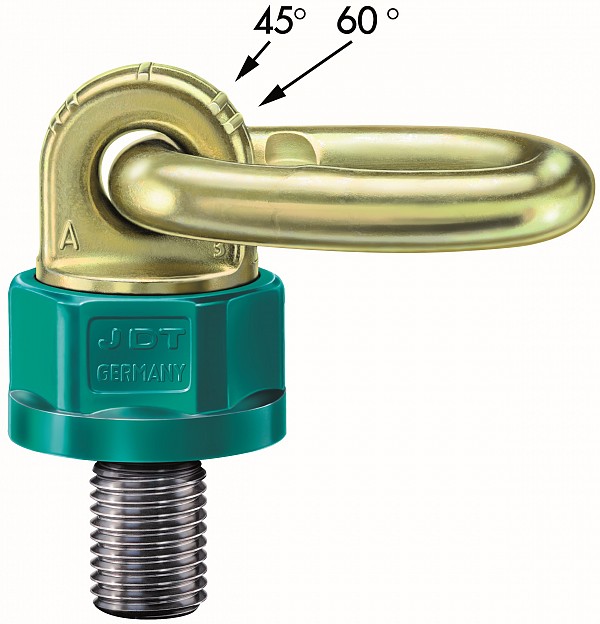

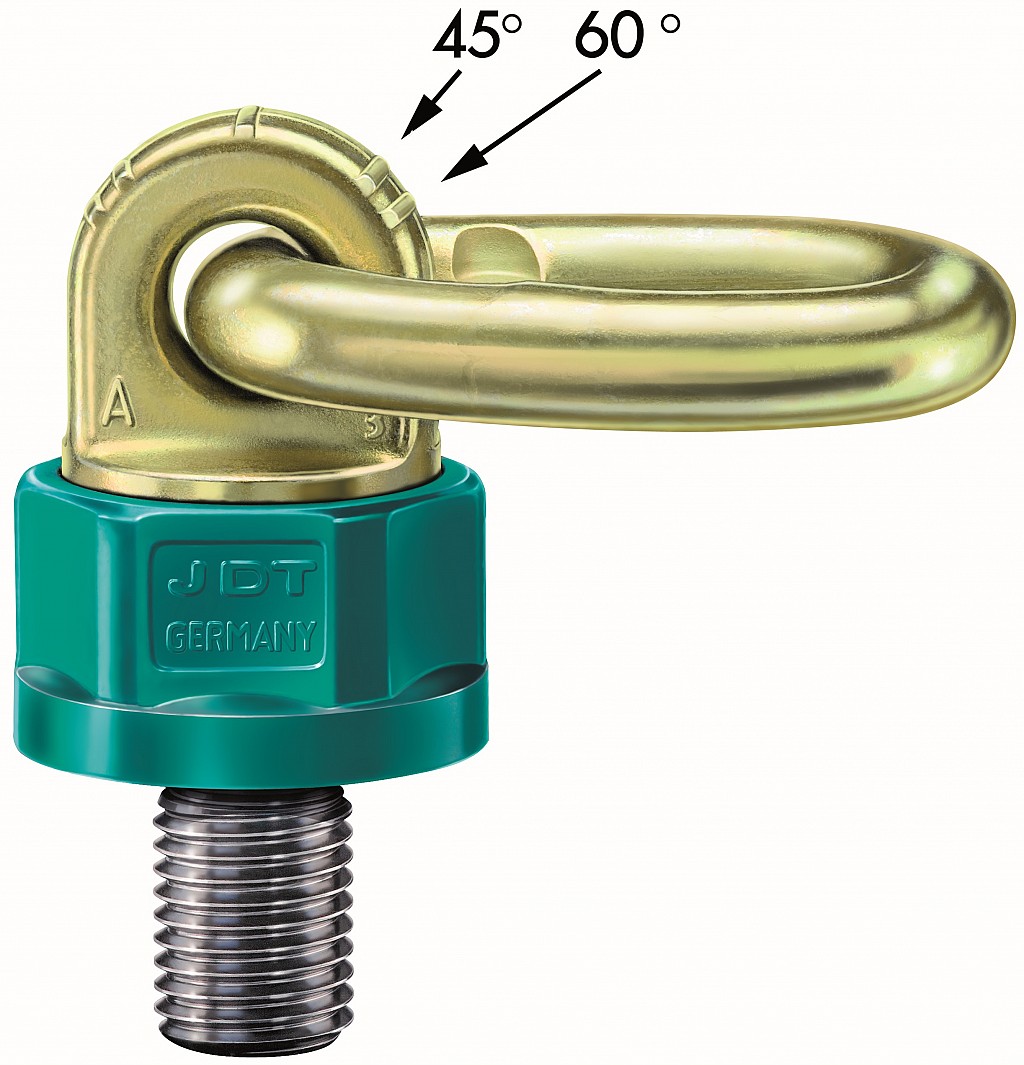

Caution: When using eye bolts at an angle, their load capacity is reduced and may be lower than the declared capacity. For specific load capacity values when lifting at different angles, please refer to the table in the specifications section above.

Images of the products are symbolic.

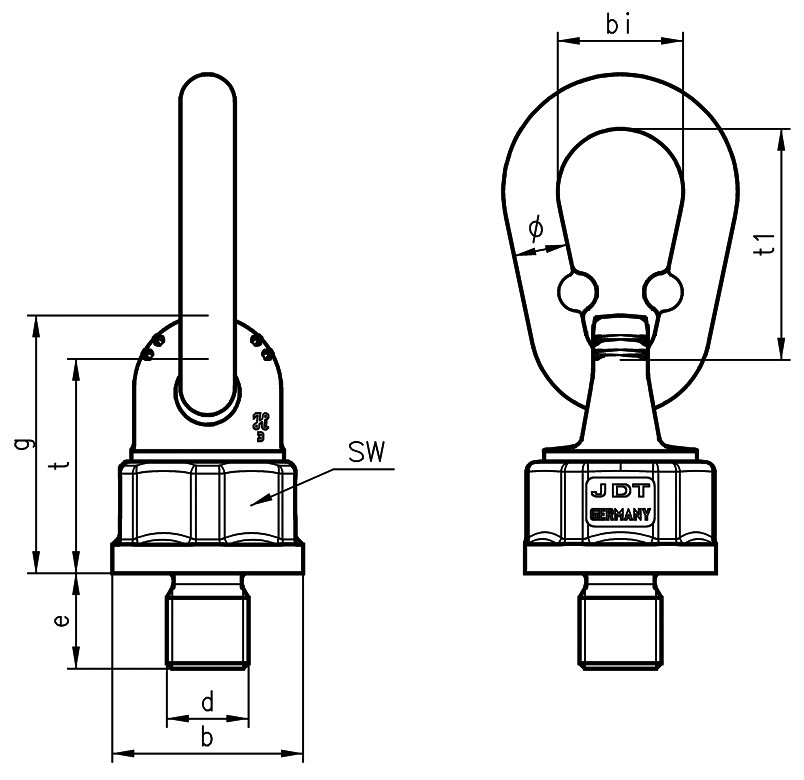

The table presents eyebolts type TP, their dimensions and other technical characteristics.

Type	Thread version d x e (mm)	Tightening torque (Nm)	Pitch	øb	g	SW	t	Link Ø x t₁ x b	Weight (≈kg)	Art. No.
Type	Thread version d x e (mm)	Tightening torque (Nm)	Pitch	øb	(mm)		t	Link Ø x t₁ x b	Weight (≈kg)	Art. No.
TP 0,7	M 10x18	10-40	1,5	36,5	48	34	41	13 x 55 x 32	0,42	465501
	M 12x18	15-40	1,75	36,5	48	34	41	13 x 55 x 32	0,43	465502
	M 12x25	15-40	1,75	36,5	48	34	41	13 x 55 x 32	0,43	465503
	M 14x20	30-40	2	36,5	48	34	41	13 x 55 x 32	0,43	465504
TP 1,4	M 16x20	45-130	2	36,5	48	34	41	13 x 55 x 32	0,44	465601
	M 16x30	45-130	2	36,5	48	34	41	13 x 55 x 32	0,45	465602
	M 20x30	75-130	2,5	36,5	48	34	41	13 x 55 x 32	0,48	465603
	M 24x30	90-130	3	36,5	48	34	41	13 x 55 x 32	0,50	465604
TP 2,5	M 20x30	100-170	2,5	52	68	46	57	16 x 70 x 34	0,95	465701
	M 20x40	100-170	2,5	52	68	46	57	16 x 70 x 34	0,97	465702
	M 20x50	100-170	2,5	52	68	46	57	16 x 70 x 34	0,99	465703
	M 20x70	100-170	2,5	52	68	46	57	16 x 70 x 34	1,05	465704
TP 4	M 24x30	190-280	3	57	75	50	63	18 x 85 x 45	1,36	465801
	M 24x45	190-280	3	57	75	50	63	18 x 85 x 45	1,41	465802
	M 24x50	190-280	3	57	75	50	63	18 x 85 x 45	1,42	465803
	M 30x35	190-280	3,5	57	75	50	63	18 x 85 x 45	1,45	465804
TP 6,7	M 30x35	230-400	3,5	70	95	65	78	20 x 85 x 45	2,33	465901
	M 30x45	230-400	3,5	70	95	65	78	20 x 85 x 45	2,37	465902
	M 30x50	230-400	3,5	70	95	65	78	20 x 85 x 45	2,40	465903
	M 30x60	230-400	3,5	70	95	65	78	20 x 85 x 45	2,45	465904
TP 8	M 30x35	270-600	3,5	81	106	75	86	23 x 115 x 60	3,59	466001
TP 8	M 30x45	270-600	3,5	81	106	75	86	23 x 115 x 60	3,64	466002
TP 10	M 36x50	270-600	4	81	106	75	86	23 x 115 x 60	3,72	466101
TP 10	M 36x54	270-600	4	81	106	75	86	23 x 115 x 60	3,75	466102
TP 12,5	M 42x50	270-700	4,5	81	106	75	86	23 x 115 x 60	3,82	466201
	M 42x60	270-700	4,5	81	106	75	86	23 x 115 x 60	3,91	466202
	M 42x63	270-700	4,5	81	106	75	86	23 x 115 x 60	3,94	466203
	M 45x60	270-700	4,5	81	106	75	86	23 x 115 x 60	4,03	466204
	M 48x72	270-700	5	81	106	75	86	23 x 115 x 60	4,23	466205
TP 17	M 42x60	350-800	4,5	104	127	95	106	30 x 140 x 70	7,34	466301
	M 45x60	350-800	4,5	104	127	95	106	30 x 140 x 70	7,50	466302
	M 48x60	350-800	5	104	127	95	106	30 x 140 x 70	7,57	466303
	M 56x78	350-900	5,5	104	127	95	106	30 x 140 x 70	8,00	466304
TP 20	M 64x96	350-900	6	104	127	95	106	30 x 140 x 70	8,85	466401
TP 20	M 64x110	350-900	6	104	127	95	106	30 x 140 x 70	9,20	466402
TP 28	M 64x96	500-1000	6	129	174	115	135	35 x 170 x 80	16,3	466403
TP 28	M 72x120	500-1200	6	129	174	115	135	35 x 170 x 80	17,6	466404
TP 28	M 80x150	500-1200	6	129	174	115	135	35 x 170 x 80	19,5	466405
TP 35	M 80x120	500-4000	6	148	187	135	146	43 x 220 x 100	25,1	466424
TP 35	M 90x150	500-1500	6	148	187	135	146	43 x 220 x 100	27,6	466425
TP 40	M 80x120	500-1500	6	170	233	150	182	46 x 240 x 110	35,5	466902
	M 90x115	500-1500	6	170	233	150	182	46 x 240 x 110	36,5	466903
	M 90x150	500-1500	6	170	233	150	182	46 x 240 x 110	38	466904
	M 100x150	500-1700	6	170	233	150	182	46 x 240 x 110	39,8	466905

Pictograms
Number of pieces	1	1	2	2	2	2	3 - 4	3 - 4
	1	1	2	2	2	2	3 - 4	3 - 4
Inclination angle	0°	90°	0°	90°	0°- 45°	45°- 60°	0°- 45°	45°- 60°
	0°	90°	0°	90°	0°- 45°	45°- 60°	0°- 45°	45°- 60°
	Working load limit

Type	(t)	(t)	(t)	(t)	(t)	(t)	(t)	(t)
TP 0,7 M 8	0,6	0,3	1,2	0,6	0,4	0,3	0,6	0,45
TP 0,7 M 10	1,0	0,5	2,0	1,0	0,7	0,5	1,0	0,75
TP 0,7 M 12	1,4	0,7	2,8	1,4	1,0	0,7	1,4	1,0
TP 0,7 M 14	2,0	1,0	4,0	2,0	1,4	1,0	2,12	1,5
TP 1,4 M 16	2,8	1,4	5,6	2,8	2,0	1,4	3,0	2,12
TP 1,4 M 20	3,4	1,7	6,8	3,4	2,4	1,7	3,55	2,5
TP 1,4 M 24	3,4	1,7	6,8	3,4	2,4	1,7	3,55	2,5
TP 2,5 M 20	5,0	2,5	10,0	5,0	3,55	2,5	5,3	3,75
TP 4 M 24	8,0	4,0	16,0	8,0	5,6	4,0	8,5	6,0
TP 4 M 30	8,0	4,0	16,0	8,0	5,6	4,0	8,5	6,0
TP 6,7 M 30	12,0	6,7	2,4	13,4	9,5	6,7	14,0	10,0
TP 8 M 30	12,0	8,0	24,0	16,0	11,2	8,0	16,0	12,0
TP 10 M 36	15,0	10,0	30,0	20,0	14,0	10,0	21,2	15,0
TP 12,5 M 42	15,0	12,5	30,0	25,0	17,0	12,5	25,0	18,0
TP 12,5 M 45	15,0	12,5	30,0	25,0	17,0	12,5	25,0	18,0
TP 12,5 M 48	15,0	12,5	30,0	25,0	17,0	12,5	25,0	18,0
TP 17 M 42	20,0	13,0	40,0	26,0	18,0	13,0	27,0	19,0
TP 17 M 45	25,0	17,0	50,0	34,0	23,5	17,0	35,0	25,0
TP 17 M 48	25,0	17,0	50,0	34,0	23,5	17,0	35,0	25,0
TP 17 M 56	25,0	18,0	50,0	46,0	25,0	18,0	37,5	26,5
TP 20 M 64	25,0	20,0	50,0	40,0	28,0	20,0	42,5	30,0
TP 28 M 64	32,5	28,0	65,0	56,0	39,0	28,0	58,0	42,0
TP 28 M 72	32,5	28,0	65,0	56,0	39,0	28,0	58,0	42,0
TP 28 M 80	32,5	28,0	65,0	56,0	39,0	28,0	58,0	42,0
TP 35 M 72	40,0	35,0	80,0	70,0	49,0	35,0	74,0	52,5
TP 35 M 80	40,0	35,0	80,0	70,0	49,0	35,0	74,0	52,5
TP 35 M 90	40,0	35,0	80,0	70,0	49,0	35,0	74,0	52,5
TP 40 M 72	50,0	40,0	100,0	80,0	56,0	40,0	84,0	60,0
TP 40 M 80	50,0	40,0	100,0	80,0	56,0	40,0	84,0	60,0
TP 40 M 90	50,0	40,0	100,0	80,0	56,0	40,0	84,0	60,0
TP 40 M 100	50,0	40,0	100,0	80,0	56,0	40,0	84,0	60,0

TP 0,7 1/2˝-13 UNC	1	0,5	2	1	0,7	0,5	1	0,75
TP 1,4 5/8˝-11 UNC	2,8	1,4	5,6	2,8	2	1,4	3	2,12
TP 2,5 3/4˝-10 UNC	5	2,5	10,0	5	3,55	2,5	5,3	3,75
TP 4 7/8˝-9 UNC	8	4	16	8	5,6	4	8,5	6
TP 4 1˝-8 UNC	8	4	16	8	5,6	4	8,5	6
TP 6,7 1 1/4˝-7UNC	12	6,7	24	13,4	9,5	6,7	14	10
TP 8 1 1/2˝-6UNC	12	8	24	16	11,2	8	16	12
