The diameter of the chain link is carefully chosen to match the required load capacity. Chain lengths that are not offered in this store can be made for you upon request. This is a grade 80 product. The store offers lifting chain slings in grades 80, 100, and 120. A higher grade number indicates the use of higher quality steel, resulting in increased tensile strength and a higher Working Load Limit. This product is manufactured in Slovenia. It has been designed, tested and certified to comply with the EN 818 standard. All chains are supplied with instructions for use and a CE declaration of conformity. Please be mindful of the working load limit for lifting chains in various lifting configurations.

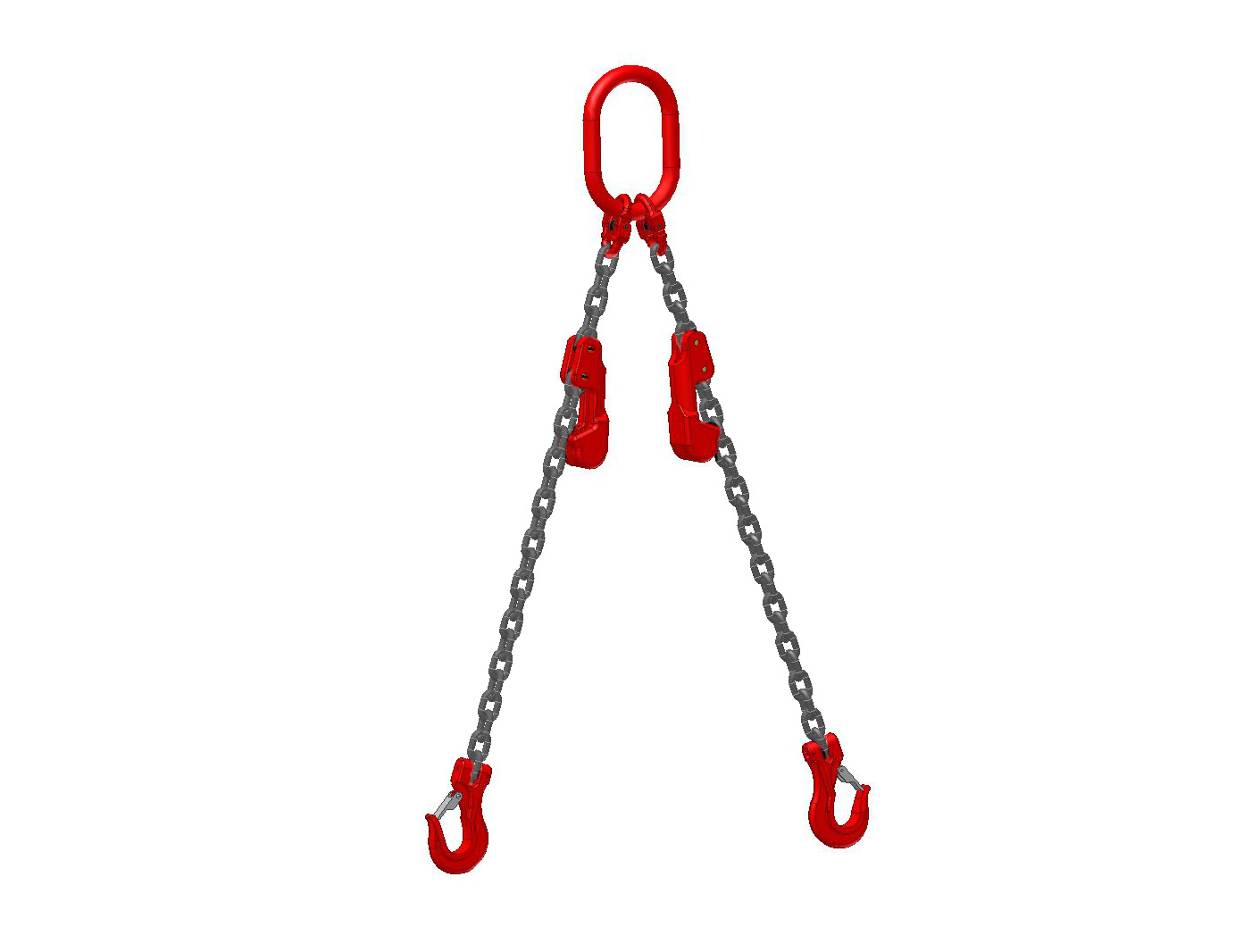

Images of the products are symbolic.

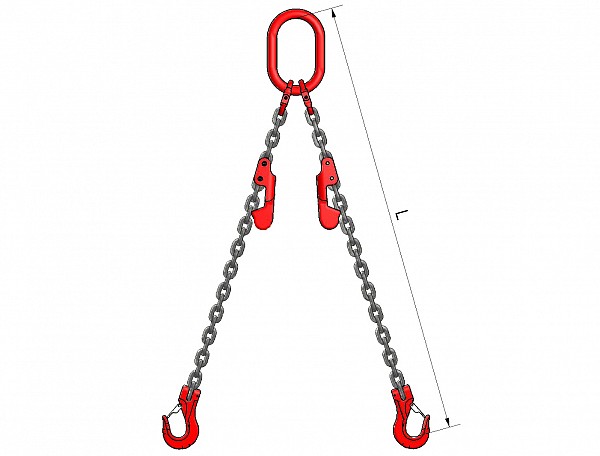

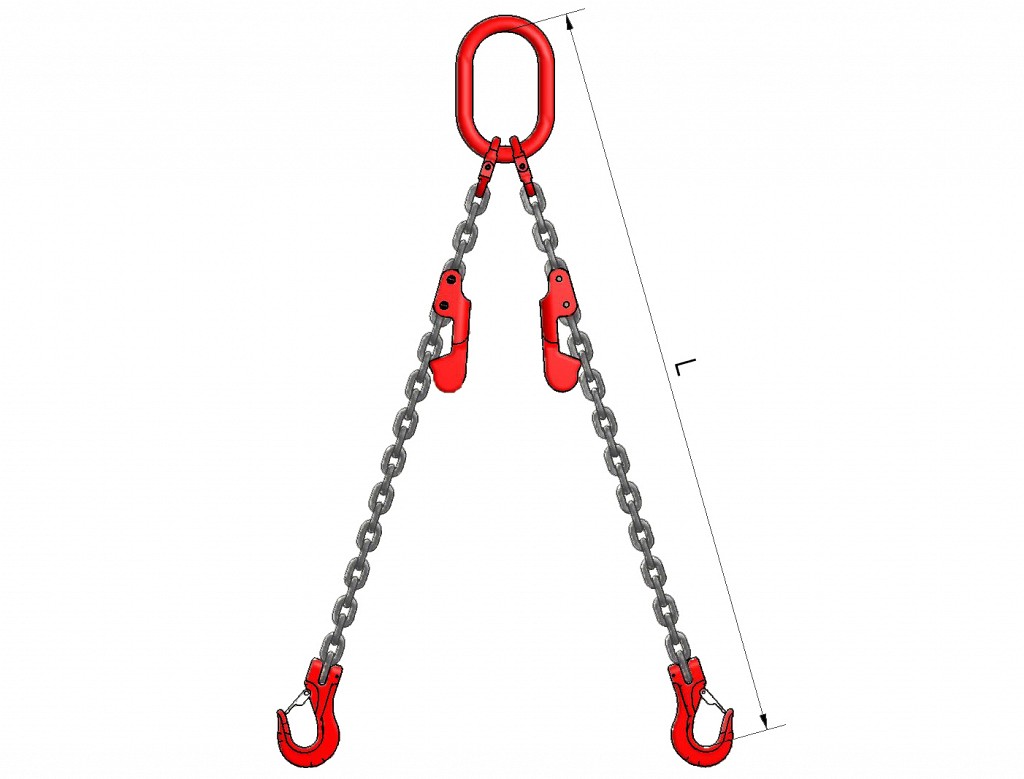

The table presents technical characteristics of the chain sling with a shortening link type VB 222, grade 80.
Angle |
0°- 45° |
45°- 60° |
0°- 45° |
45°-60° |
0°- 45° |
45°- 60° |
F |
1.4 |
1 |
1.12 |
0.8 |
1.1 |
0.8 |
Diameter mm |
Working load limit kg |
|||||
6 7 |
1600 2120 |
1120 1500 |
1250 1250 |
900 1200 |
1250 1700 |
900 1250 |
8 10 |
2800 4250 |
2000 3150 |
2240 3350 |
1600 2500 |
2200 3350 |
1600 2500 |
13 16 |
7500 11200 |
5300 8000 |
5600 9000 |
4250 6300 |
5600 9000 |
4250 6300 |
18 19 |
14000 16000 |
10000 11200 |
11200 12500 |
8000 9000 |
11200 12500 |
8000 9000 |
20 22 |
18000 21200 |
12500 15000 |
14000 17000 |
10000 12000 |
13700 17000 |
10000 12000 |
26 32 |
30000 45000 |
21200 32000 |
23600 35500 |
17000 25000 |
23600 35000 |
17000 25000 |
