Eye bolt OVC

Code: 461201

Brand: P TEAM

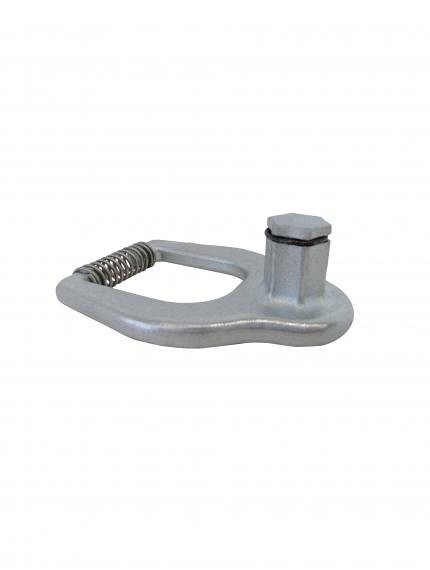

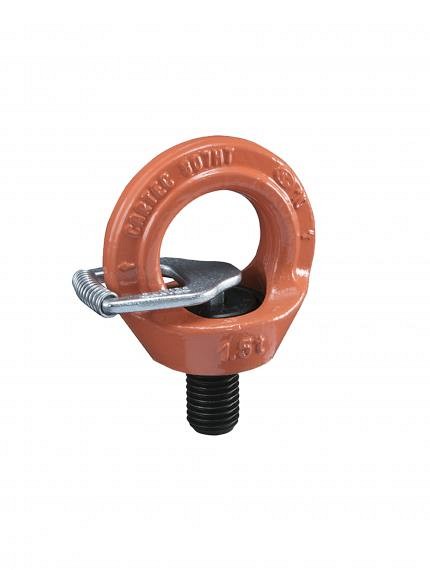

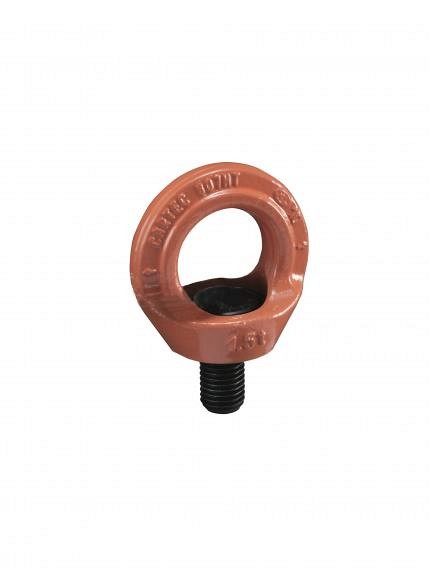

The OVC eye bolt is a lifting point designed for safely lifting loads at various angles. Its body can rotate 360°, enabling lifting from any direction. Upon lifting, this flexibility ensures that the rotating eye bolt completely aligns with the lifting chain. The OVC eye bolt comes with a key that allows for easier assembly.

Thread:

Working load limit:

Reset options

In Stock

Price:

from 51,12 €

Add to cart

You have a question about this product?

More details
Specifications

OVC eye bolt can rotate 360°, making it possible to lift from any direction. This flexibility ensures that the eye nut aligns completely with the lifting chain. The OVC eye bolt is approved for all lifting configurations from 0° to 90° and can be used in a temperature range from -40°C to +200°C. It is manufactured in accordance with the Machinery Directive 2006/42/EC and carries the CE mark. It complies with the EN 1677 standard and has a safety factor of 4:1, ensuring safety and reliability. We offer the OV product in both male-eye bolt and female-eye nut forms.

Warranty: 1 year
Warrning: This device is not suitable for rotation during loading!
Caution: When using eye bolts at an angle, their load capacity is reduced and may be lower than the declared capacity. For specific load capacity values when lifting at different angles, please refer to the table in the specifications section above.

Images of the products are symbolic.

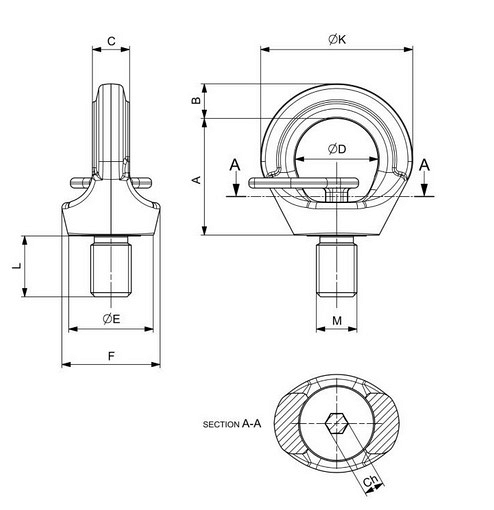

The table presents eye bolts type OVC, their dimensions and other technical characteristics.

Size	Working load limit (t)	A mm	B mm	C mm	D mm	E mm	F mm	K mm	L mm	CH mm	Weight kg	Article No.
M8	0,3	35	11	9	25	25	30	47	12	6	0,12	461201
M10	0,4	35	11	9	25	25	30	47	15	6	0,12	461202
M12	0,75	43	12,5	11,5	30	30	36,5	55,5	18	7	0,2	461203
M14	0,75	43	12,5	11,5	30	30	36,5	55,5	18	7	0,2	461204
M16	1,5	49,5	14,5	15,7	35	35	41,8	64,5	24	8	0,35	461205
M18	1,5	49,5	14,5	15,7	35	35	41,8	64,5	24	8	0,35	461206
M20	2,3	58	16	18	40	42	51,5	74,5	30	10	0,6	461207
M22	2,3	58	16	18	40	42	51,5	74,5	30	10	0,6	461208
M24	3,2	69	20,5	22	49	50	58	90	36	12	1,0	461209
M27	3,2	69	20,5	22	49	50	58	90	36	12	1,0	461210
M30	4,5	86	25,5	28	60	66	73	111	45	17	2,0	461211
M33	4,5	86	25,5	28	60	66	73	111	45	17	2,0	461212
M36	7	107	32	32	74	75	96,5	135	54	22	3,4	461213
M42	9	120	38	40,5	82	85	110	158	63	24	5,7	461214
M48	12	139	43	44	95	100	124,5	179	72	27	8,5	461215

Pictograms									Max tightening couple
Size	0°	0°	90°	90°	0° - 45°	45° - 60°	0° - 45°	45° - 60°	Nm
	Working load limit (t)
M8	1	2	0,3	0,6	0,42	0,3	0,63	0,45	8
M10	1	2	0,4	0,8	0,56	0,4	0,84	0,6	16
M12	2	4	0,75	1,5	1	0,75	1,6	1,12	25
M14	2	4	0,75	1,5	1	0,75	1,6	1,12	30
M16	4	8	1,5	3	2	1,5	3,15	2,25	60
M18	4	8	1,5	3	2	1,5	3,15	2,25	70
M20	6	12	2,3	4,6	3,22	2,3	4,83	3,45	110
M22	6	12	2,3	4,6	3,22	2,3	4,83	3,45	120
M24	8	16	3,2	6,4	4,48	3,2	6,7	4,8	195
M27	8	16	3,2	6,4	4,48	3,2	6,7	4,8	240
M30	12	24	4,5	9	6,3	4,5	9,4	6,7	320
M33	12	24	4,5	9	6,3	4,5	9,4	6,7	350
M36	16	32	7	14	9,8	7	14,7	10,5	585
M42	24	45	9	18	12,6	9	18,9	13,5	920
M48	32	64	12	24	16,8	12	25,2	18	1590
