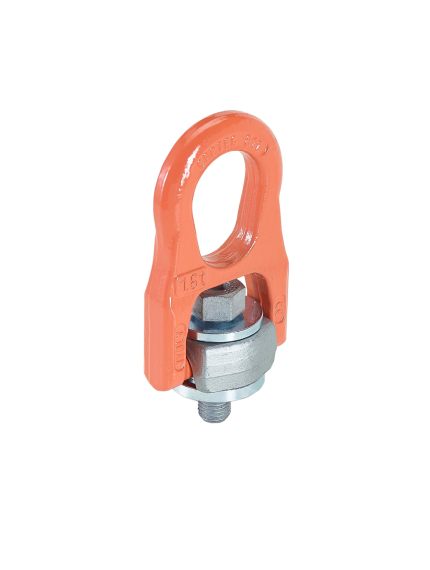

CTL double swivel hoist ring can pivot 180°, and rotate 360°, making it possible to lift from any direction. This flexibility ensures that the swivel ring aligns completely with the lifting chain. The CTL eye bolt is approved for all lifting configurations from 0° to 90° and can be used in a temperature range from -40°C to +200°C. It is manufactured in accordance with the Machinery Directive 2006/42/EC and carries the CE mark. It has a safety factor of 4:1, ensuring safety and reliability.
Images of the products are symbolic.
The table presents eyebolts type CTL, their dimensions and other technical characteristics.
| Type |
Thread version d x e (mm) |
A (mm) |
B (mm) |
C (mm) |
E (mm) |
F (mm) |
G (mm) |
H (mm) |
J (mm) |
K (mm) |
L (mm) |
CH (mm) |
ch (mm) |
Weight (Kg) |
Art. No. |
| CTL 0.3 | M8 | 56 | 28 | 14 | 30 | 55 | 11 | 99 | 40 | 33.5 | 12 | 13 | 5 | 0.37 | 461901 |
| CTL 0.6 | M10 | 56 | 28 | 14 | 30 | 55 | 11 | 99 | 40 | 34.5 | 15 | 17 | 6 | 0.37 | 461902 |
| CTL 1 | M12 | 56 | 28 | 14 | 30 | 55 | 11 | 99 | 40 | 35.5 | 18 | 19 | 7 | 0.37 | 461903 |
| CTL 1.3 | M14 | 74.5 | 38 | 18 | 47 | 78 | 17 | 135.5 | 55 | 46 | 21 | 22 | 7 | 1.3 | 461904 |
| CTL 1.6 | M16 | 74.5 | 38 | 18 | 47 | 78 | 17 | 135.5 | 55 | 46.5 | 25 | 24 | 10 | 1.3 | 461905 |
| CTL 2 | M18 | 74.5 | 38 | 18 | 47 | 78 | 17 | 135.5 | 55 | 47 | 27 | 27 | 10 | 1.3 | 461906 |
| CTL 2.5 | M20 | 74.5 | 38 | 18 | 47 | 78 | 17 | 135.5 | 55 | 48 | 30 | 30 | 12 | 1.3 | 461907 |
| CTL 3 | M22 | 106 | 56 | 25 | 62 | 114.5 | 22 | 198.5 | 84 | 63.5 | 33 | 32 | 12 | 4 | 461908 |
| CTL 4 | M24 | 106 | 56 | 25 | 62 | 114.5 | 22 | 198.5 | 84 | 64.5 | 36 | 36 | 14 | 4 | 461909 |
| CTL 5 | M27 | 106 | 56 | 25 | 62 | 114.5 | 22 | 198.5 | 84 | 66.5 | 40 | 41 | 14 | 4 | 461910 |
| CTL 6.3 | M30 | 106 | 56 | 25 | 62 | 114.5 | 22 | 198.5 | 84 | 68 | 45 | 46 | 17 | 4 | 461911 |
| Pictograms |
|
 |
 |
 |
 |
|
 |
|
Max tightening torque (Nm)
|
| Number of pieces | 1 | 2 | 1 | 2 | 2 | 2 | 3-4 | 3-4 | |
| Inclination angle | 0° | 0° | 90° | 90° | 0°-45° | 45°-60° | 0°-45° | 45°-60° | |
| Thread version |
Nosilnost (t)
|
||||||||
| M8 | 0.5 | 1 | 0.3 | 0.6 | 0.4 | 0.3 | 0.6 | 0.45 | 10 |
| M10 | 1 | 2 | 0.6 | 1.2 | 0.8 | 0.6 | 1.3 | 0.9 | 15 |
| M12 | 1.3 | 2.6 | 1 | 2 | 1.4 | 1 | 2.1 | 1.5 | 25 |
| M14 | 2 | 4 | 1.3 | 2.6 | 1.8 | 1.3 | 2.7 | 1.9 | 30 |
| M16 | 2.5 | 5 | 1.6 | 3.2 | 2.2 | 1.6 | 3.4 | 2.4 | 60 |
| M18 | 3 | 6 | 2 | 4 | 2.8 | 2 | 4.2 | 3 | 100 |
| M20 | 3.5 | 7 | 2.5 | 5 | 3.5 | 2.5 | 5.3 | 3.7 | 120 |
| M22 | 4.5 | 9 | 3 | 6 | 4.2 | 3 | 6.3 | 4.5 | 130 |
| M24 | 5.5 | 11 | 4 | 8 | 5.6 | 4 | 8.4 | 6 | 200 |
| M27 | 6.5 | 13 | 5 | 10 | 7 | 5 | 10.5 | 7.5 | 250 |
| M30 | 7 | 14 | 6.3 | 12.6 | 8.8 | 6.3 | 13.2 | 9.4 | 350 |
