Eye nut TP-F

Code: 462401

Brand: P TEAM

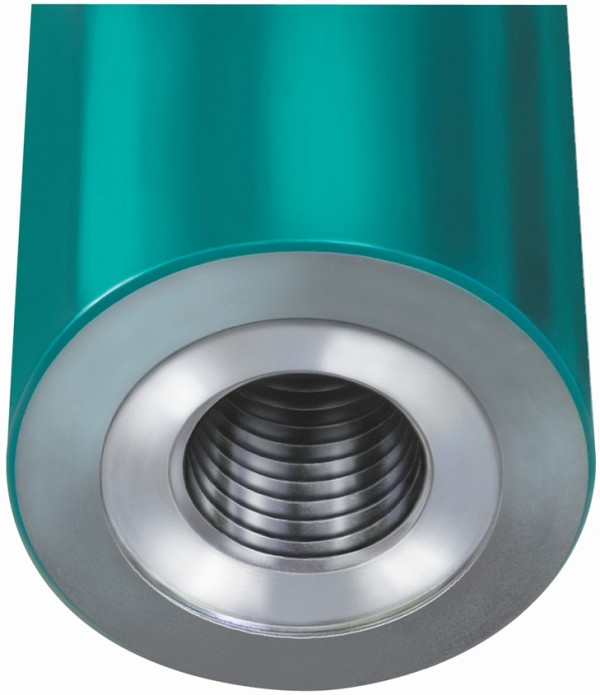

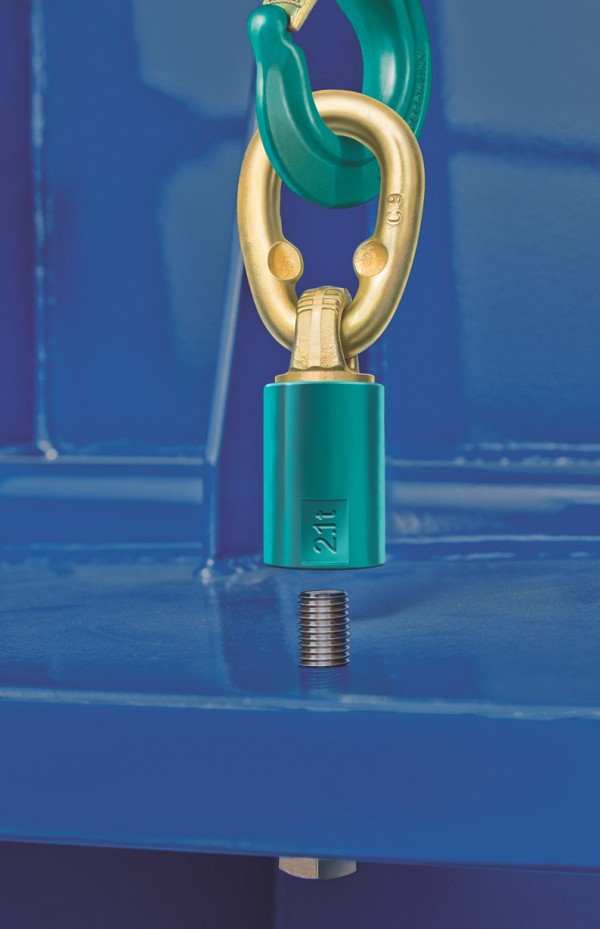

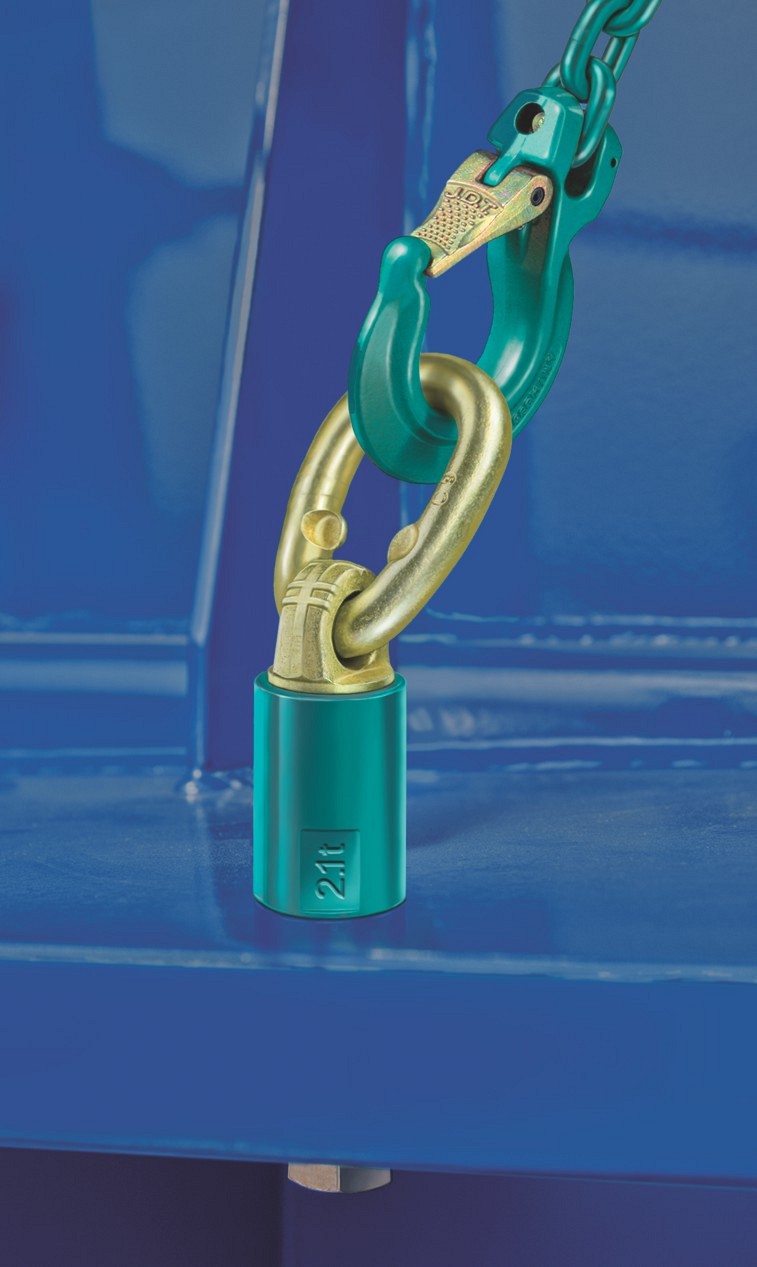

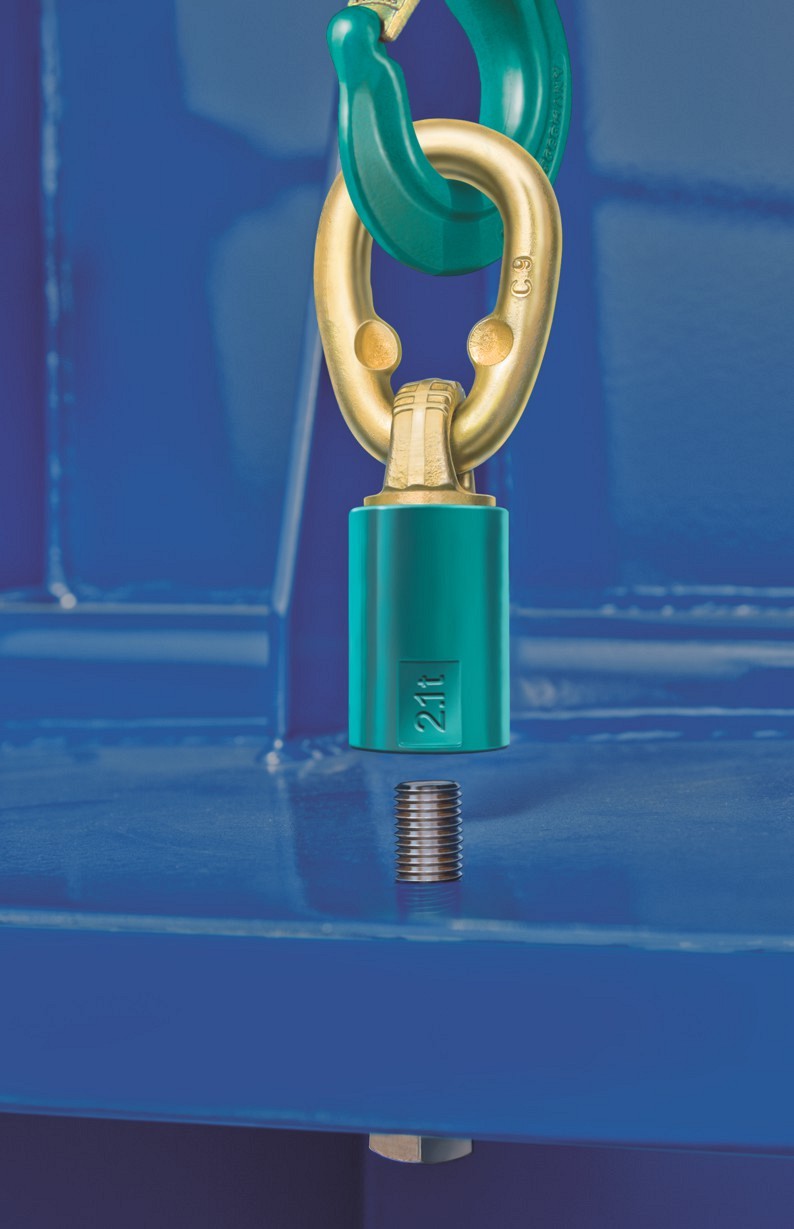

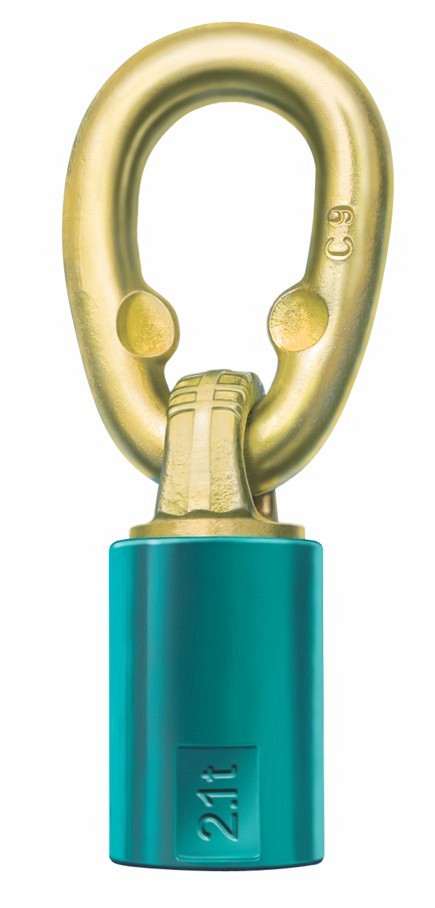

The TP-F eye nut is a double swivel hoist ring designed for safely lifting loads at various angles. The bail on this double swivel eye nut can pivot 180°, and the body can rotate 360°, allowing lifting from any direction. Upon lifting, this flexibility ensures that the swivel eye nut completely aligns with the lifting chain. The double swivel function of the TP-F eye nut makes it ideal for safe and efficient lifting and maneuvering of loads in different directions. The galvanized coating on this product provides an optimal corrosion protection.

Thread:

Working load limit:

Reset options

In Stock

Price:

from 168,73 €

Add to cart

You have a question about this product?

More details
Specifications

TP-F double swivel hoist ring can pivot 180°, and rotate 360°, making it possible to lift from any direction. This flexibility ensures that the swivel ring aligns completely with the lifting chain. The TP-F eye nut is approved for all lifting configurations from 0° to 90° and can be used in a temperature range from -40°C to +200°C. It is manufactured in accordance with the Machinery Directive 2006/42/EC and carries the CE mark. It complies with the EN 1677-1,5; EN 818-1,7; EN 13155; EN 1889 standards and has a safety factor of 4:1, ensuring safety and reliability. We offer the TP-F product in both male-double swivel eye bolt and female-double swivel eye nut forms. Additionally, both versions are also available made of stainless steel for increased corrosion resistance. We offer the TP product in both male-double swivel eye bolt and female-double swivel eye nut forms. Additionally, there is a version available that can be welded.

Warranty: 1 year
Warrning: This device is not suitable for rotation during loading!
Caution: When using eye nuts at an angle, their load capacity is reduced and may be lower than the declared capacity. For specific load capacity values when lifting at different angles, please refer to the table in the specifications section above.

Images of the products are symbolic.

The table presents eye nuts type TP-F, their dimensions and other technical characteristics.

Type	Thread version d x e mm	Tightening torque Nm	Pitch	a mm	øb mm	g mm	SW mm	t mm	Link ø x t x b	Weight kg	Art. No.
TPF 0,5	M 12x15	15-40	1,75	45	36,5	73	34	66	13 x 55 x 32	0,61	462401
TPF 1	M 16x20	45-130	2	52	36,5	80	34	73	13 x 55 x 32	0,65	462402
TPF 1,7	M 20x25	100-170	2,5	66	52	106	46	95	16 x 70 x 34	1,5	462403
TPF 2,1	M 24x30	190-280	3	80	57	120	50	108	18 x 85 x 45	2,12	462404
TPF 3,2	M 30x40	230-400	3,5	94	70	148	64	131	20 x 85 x 45	3,7	462405
TPF 5	M 36x45	270-600	4	107	80	164	75	145	23 x 115 x 60	5,75	462406

Pictograms
Number of pieces	1	1	2	2	2	2	3 - 4	3 - 4
Inclination angle	0°	90°	0°	90°	0°-45°	45°-60°	0°-45°	45°-60°
	Working load limit
Type	(t)	(t)	(t)	(t)	(t)	(t)	(t)	(t)
TPF 0,5 M 12x15	1,4	0,5	2,8	1	0,7	0,5	1	0,75
TPF 1 M 16x20	2,8	1	5,6	2	1,4	1	2,12	1,5
TPF 1,7 M 20x25	5	1,7	10	3,4	2,4	1,7	3,55	2,5
TPF 2,1 M 24x30	8	2,1	16	4	2,8	2,1	4,25	3,15
TPF 3,2 M 30x40	12	3,2	24	6,4	4,25	3,15	6,7	4,75
TPF 5 M 36x45	15	5	30	10	6,7	5	10	7,5
