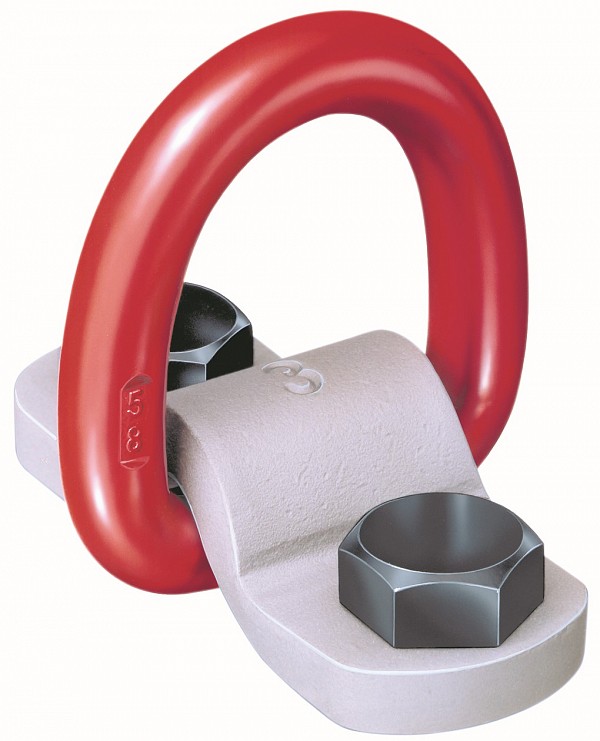

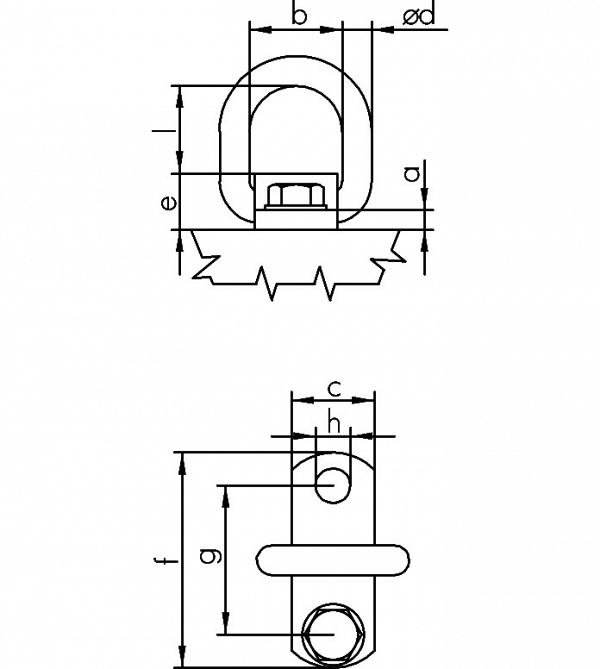

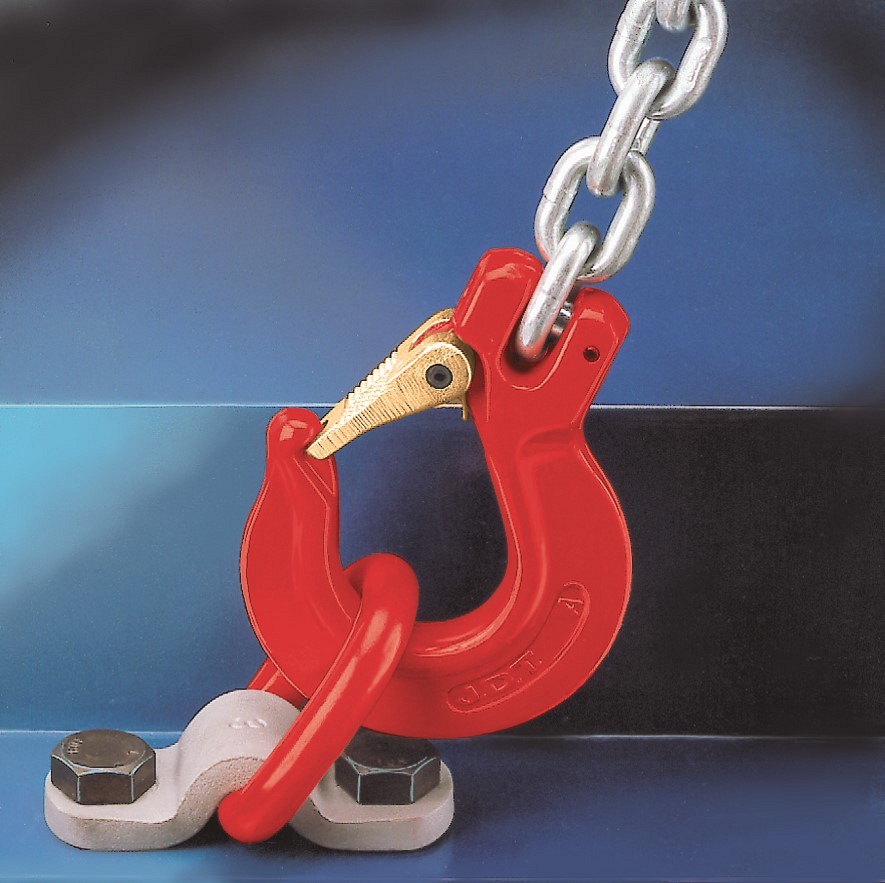

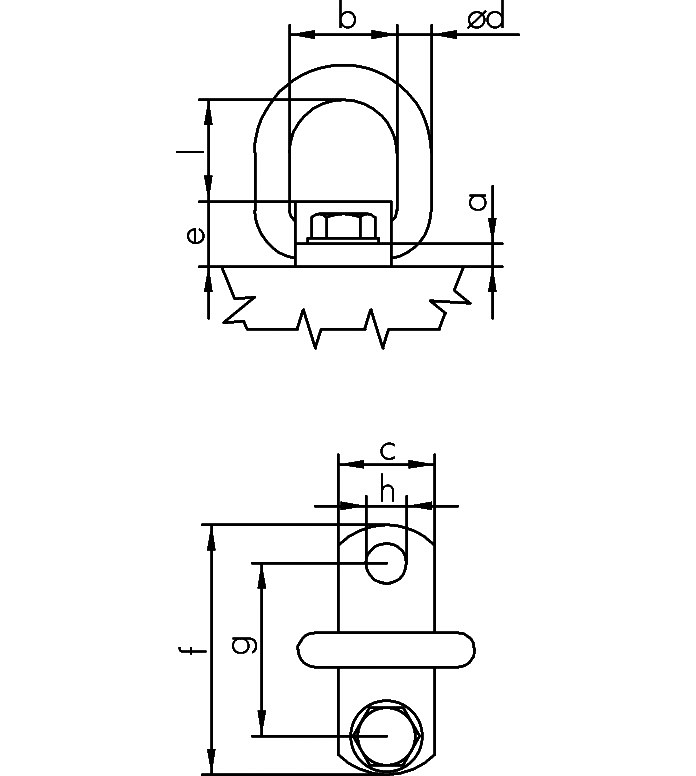

The table presents lashing eyes type TAPG, their dimensions and other technical characteristics.
Type |
Thread version d x e (mm) |
Tightening torque (Nm) |
a |
B |
c |
d |
e |
f |
g |
h |
l |
Weight (≈kg) |
Art. No. |
(mm) |
|||||||||||||
TAPG 3 |
M 20 |
210 |
12 |
56 |
50 |
18 |
34 |
130 |
90 |
21 |
51 |
1,08 |
462701 |
TAPG 5 |
M 24 |
290 |
15 |
67 |
60 |
22 |
42 |
160 |
110 |
25 |
63 |
2,04 |
462702 |
TAPG 8 |
M 27 |
550 |
20 |
80 |
70 |
26 |
55 |
190 |
130 |
28 |
67 |
3,58 |
462703 |
Pictograms |
||||||
Number of pieces |
1 |
2 |
2 |
2 |
3 - 4 |
3 - 4 |
Inclination angle |
0° |
0° |
0°-45° |
45°-60° |
0°-45° |
45°-60° |
Working load limit |
||||||
Type |
(t) |
(t) |
(t) |
(t) |
(t) |
(t) |
TAPG 3 |
4,75 |
9,5 |
4,25 |
3,15 |
6,3 |
4,75 |
TAPG 5 |
8 |
16 |
7,1 |
5,3 |
11,2 |
8 |
TAPG 8 |
12 |
24 |
11,2 |
8 |
16 |
12 |
