Eye bolt FP

Code: 462501

Brand: P TEAM

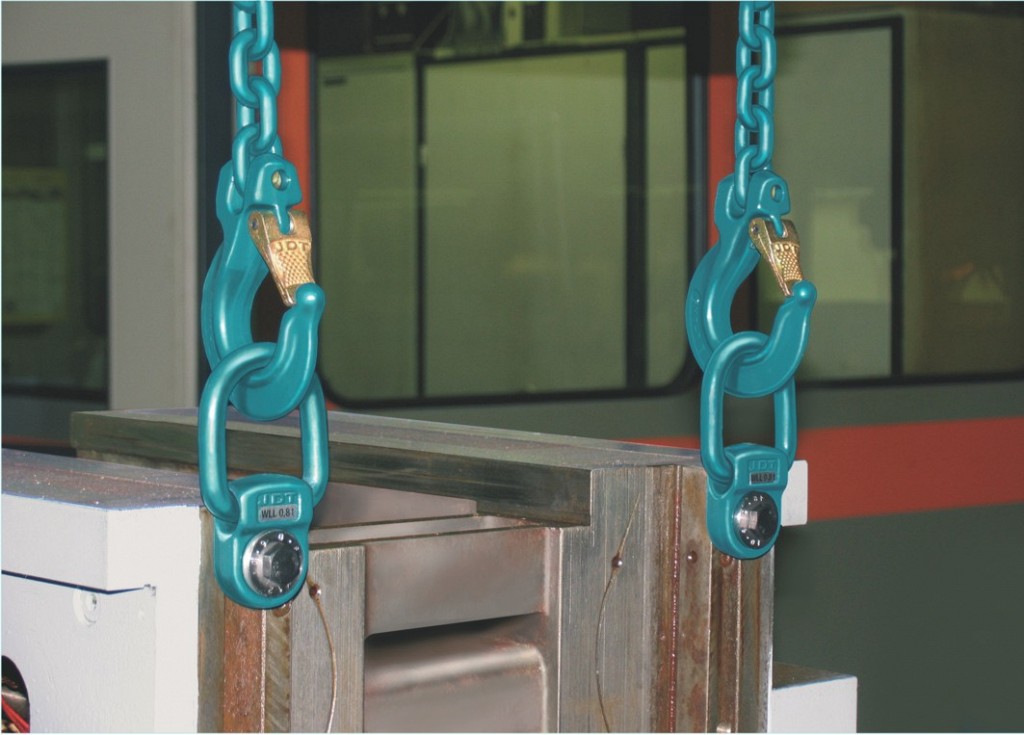

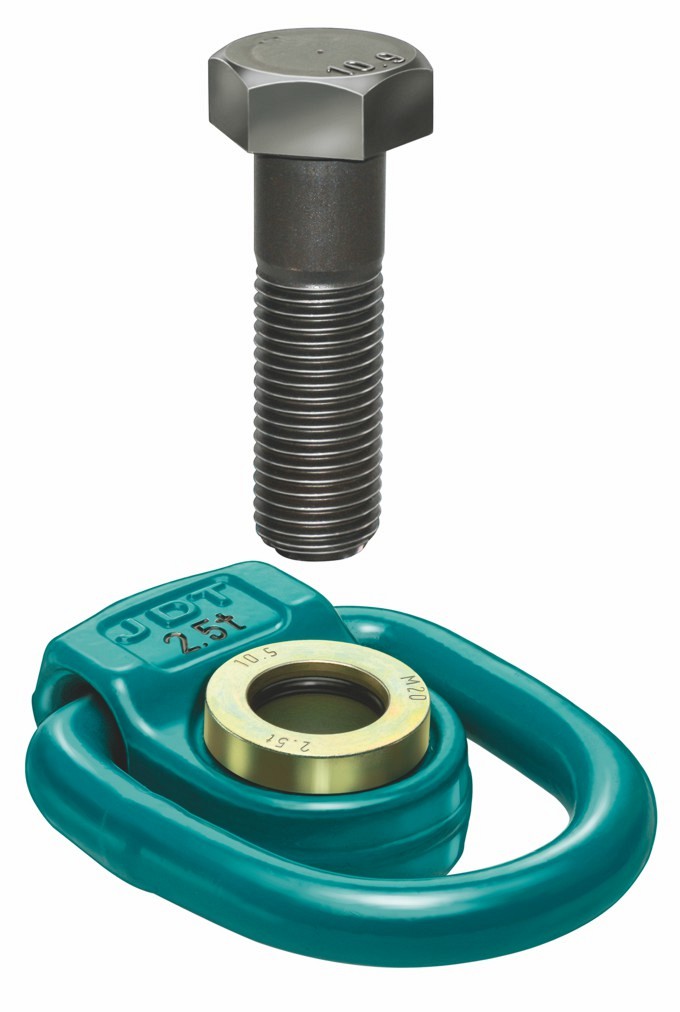

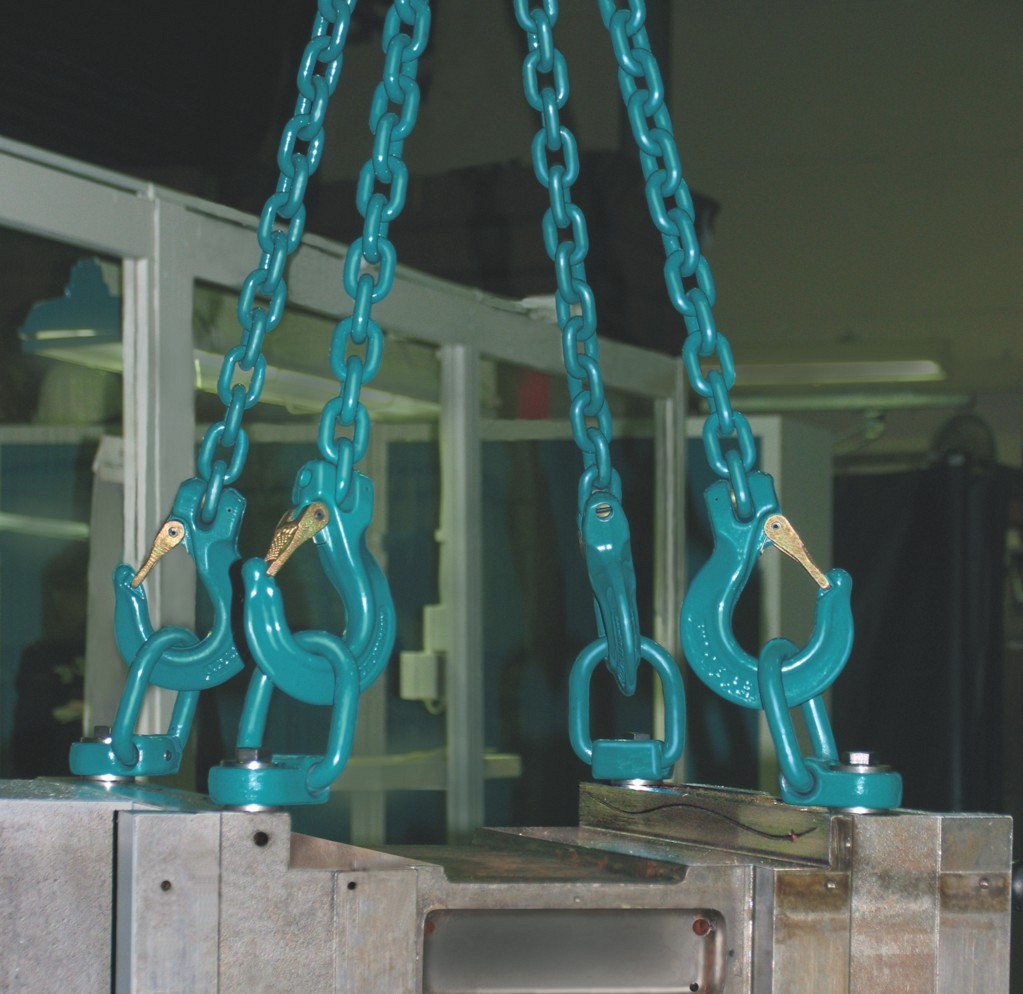

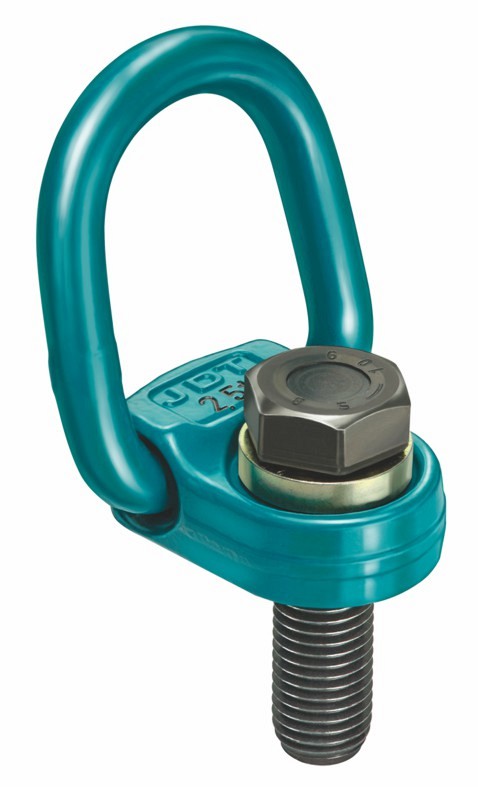

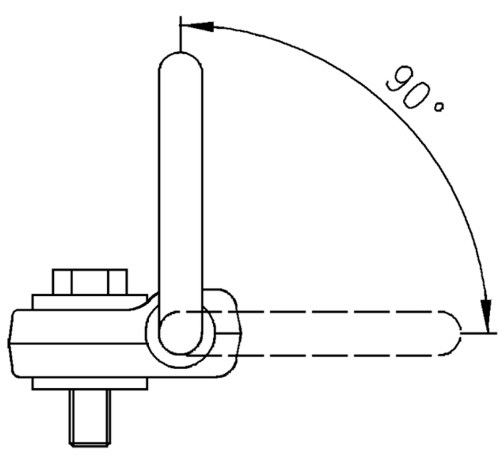

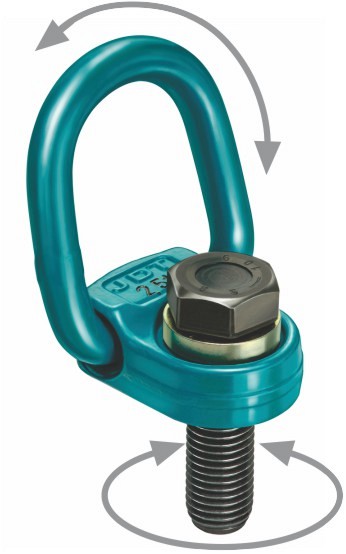

The FP eye bolt is a double swivel hoist ring designed for safely lifting loads at various angles. It is intended for side mounting, as the bail is attached adjacent to the screw, rather than attaching directly above the screw. The bail on this double swivel eye bolt can pivot 110°, and the body can rotate 360°, allowing lifting from any direction. Upon lifting, this flexibility ensures that the swivel eye bolt completely aligns with the lifting chain. The double swivel function of the FP eye bolt makes it ideal for safe and efficient lifting and maneuvering of loads in different directions. The galvanized coating on this product provides an optimal corrosion protection.

Thread:

Working load limit:

Reset options

In Stock

Price:

from 83,69 €

Add to cart

You have a question about this product?

More details
Specifications

FP double swivel hoist ring designed for side mounting can pivot 110°, and rotate 360°, making it possible to lift from any direction. This flexibility ensures that the swivel ring aligns completely with the lifting chain. The FP eye bolt is approved for all lifting configurations from 0° to 90° and can be used in a temperature range from -20°C to +100°C. It is manufactured in accordance with the Machinery Directive 2006/42/EC and carries the CE mark. It complies with the EN 1677-1,5; EN 818-1,7; EN 13155; EN 1889 standards and has a safety factor of 4:1, ensuring safety and reliability.

Warranty: 1 year
Warrning: This device is not suitable for rotation during loading!
Caution: When using eye bolts at an angle, their load capacity is reduced and may be lower than the declared capacity. For specific load capacity values when lifting at different angles, please refer to the table in the specifications section above.

Images of the products are symbolic.

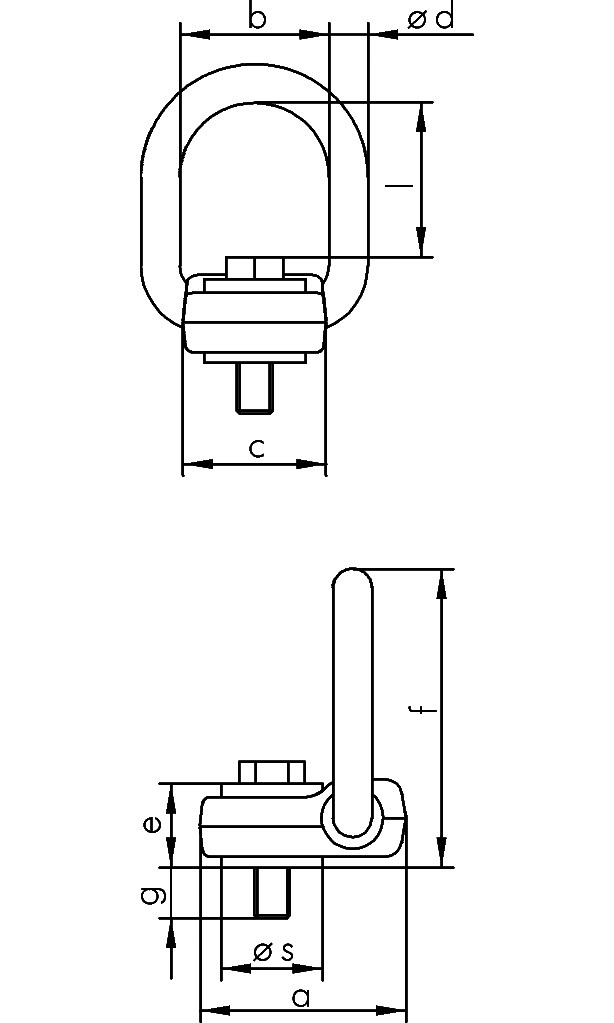

The table presents eyebolts type FP, their dimensions and other technical characteristics.

Type	Thread version d x e (mm)	Tightening torque (Nm)	a	b	c	d	e	f	g	l	øs	Weight (≈kg)	Art. No.
Type	Thread version d x e (mm)	Tightening torque (Nm)	a	b	c	(mm)			g	l	øs	Weight (≈kg)	Art. No.
FP 0,5	M 10x40	40	69	50	48	13	28	100	12	52	34	0,7	462501
FP 0,8	M 12x45	65	69	50	48	13	28	100	17	51	34	0,71	462502
FP 1,5	M 16x55	160	69	50	48	13	28	100	27	49	34	0,72	462503
FP 2,5	M 20x70	250	69	50	48	13	28	100	42	46	34	0,73	462504
FP 4-S	M 24x80	300	69	50	48	13	30	100	50	42	34	0,76	462505
FP 4	M 24x80	300	104	76	72	18	39	147	41	79	58	2,6	462506
FP 5	M 27x90	400	104	76	72	18	39	147	51	72	58	2,7	462507
FP 6	M 30x90	500	104	76	72	18	39	147	51	70	58	2,75	462508
FP 8	M 36x100	600	104	76	72	18	43	147	57	62	58	2,81	462509
