OVM eye nut can rotate 360°, making it possible to lift from any direction. This flexibility ensures that the eye nut aligns completely with the lifting chain. The OVM eye nut is approved for all lifting configurations from 0° to 90° and can be used in a temperature range from -40°C to +200°C. It is manufactured in accordance with the Machinery Directive 2006/42/EC and carries the CE mark. It complies with the EN 1677 standard and has a safety factor of 4:1, ensuring safety and reliability. We offer the OV product in both male-eye bolt and female-eye nut forms.

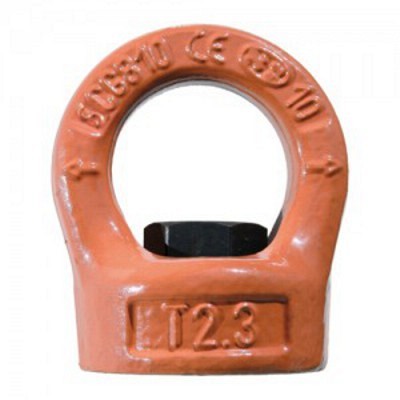

Images of the products are symbolic.
The table presents eye nuts type OVM, their dimensions and other technical characteristics.
Type |
Thread version d x e (mm) |
Tightening torque (Nm) |
a |
b |
C (mm) |
D Ø (mm) |
e Ø (mm) |
K Ø (mm) |
l (mm) |
ch (mm) |
Weight (≈kg) |
Art. No. |
OVM 0,3 |
M8 |
8 |
44,5 |
8 |
10 |
29 |
32 |
45 |
23 |
13 |
0,300 |
461801 |
OVM 0,4 |
M10 |
16 |
44,5 |
8 |
10 |
29 |
32 |
45 |
23 |
14 |
0,300 |
461802 |
OVM 0,75 |
M12 |
28 |
53,5 |
11 |
11 |
34 |
44 |
56 |
27 |
16 |
0,460 |
461803 |
OVM 1,5 |
M16 |
70 |
56,5 |
13 |
14,5 |
39 |
56 |
65 |
29 |
21 |
0,900 |
461804 |
OVM 2,5 |
M20 |
135 |
67 |
14 |
17 |
42 |
58 |
70 |
34 |
26 |
1,150 |
461805 |
OVM 3,2 |
M24 |
230 |
80 |
18 |
19 |
52 |
73 |
88 |
40 |
30 |
2,050 |
461806 |
OVM 4,5 |
M30 |
465 |
101 |
22 |
27 |
62 |
80 |
106 |
50 |
36 |
4,000 |
461807 |
Pictograms |
||||||||
Number of pieces |
1 |
1 |
2 |
2 |
2 |
2 |
3 - 4 |
3 - 4 |
Inclination angle |
0° |
90° |
0° |
90° |
0°-45° |
45°-60° |
0°-45° |
45°-60° |
Working load limit |
||||||||
Tip |
(t) |
(t) |
(t) |
(t) |
(t) |
(t) |
(t) |
(t) |
OVM 0,3 M8 |
1 |
0,3 |
2 |
0,6 |
0,42 |
0,3 |
0,63 |
0,45 |
OVM 0,4 M10 |
1 |
0,4 |
2 |
0,8 |
0,56 |
0,4 |
0,84 |
0,6 |
OVM 0,75 M12 |
2 |
0,75 |
4 |
1,5 |
1 |
0,75 |
1,6 |
1,12 |
OVM 1,5 M16 |
4 |
1,5 |
8 |
3 |
2 |
1,5 |
3,15 |
2,25 |
OVM 2,5 M 20 |
6 |
2,3 |
12 |
4,6 |
3,22 |
2,3 |
4,83 |
3,45 |
OVM 3,2 M24 |
8 |
3,2 |
16 |
6,4 |
4,48 |
3,2 |
6,7 |
4,8 |
OVM 4,5 M30 |
12 |
4,5 |
24 |
9 |
6,3 |
4,5 |
9,4 |
6,7 |
