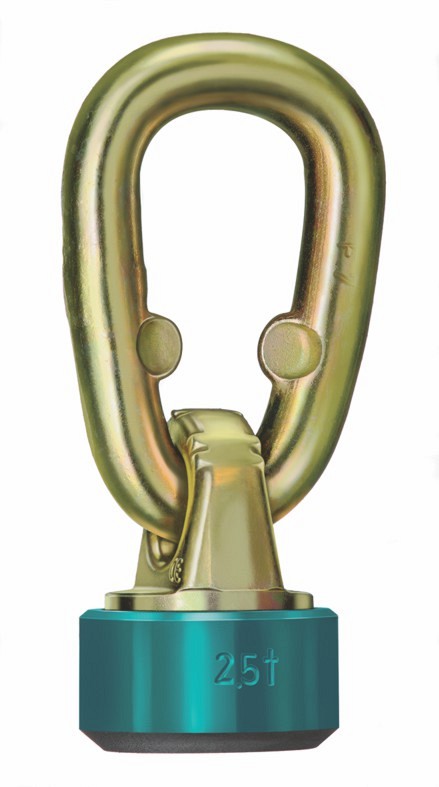

Eye bolt TP-S, weld-on type

Code: 462601

Brand: P TEAM

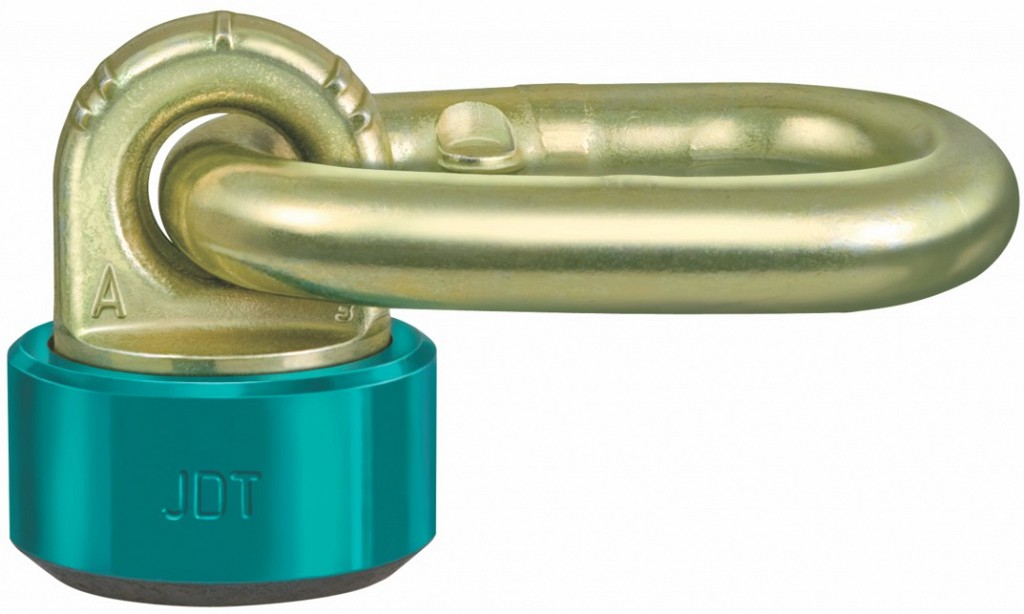

The TP-S eye bolt is a double swivel hoist ring designed for safely lifting loads at various angles. The bail on this double swivel eye bolt can pivot 180°, and the body can rotate 360°, allowing lifting from any direction. Upon lifting, this flexibility ensures that the swivel eye bolt completely aligns with the lifting chain. The double swivel function of the TP-S eye bolt makes it ideal for safe and efficient lifting and maneuvering of loads in different directions. The galvanized coating on this product provides an optimal corrosion protection.

Thread shape: assembly by welding

Working load limit:

Reset options

Availability: 10 do 14 dni

Price:

from 153,72 €

Add to cart

You have a question about this product?

More details
Specifications

Type TP-S double swivel hoist ring requires to be weld-on. This hoist ring can pivot 180°, and rotate 360°, making it possible to lift from any direction. This flexibility ensures that the swivel ring aligns completely with the lifting chain. The TP-S eye bolt is approved for all lifting configurations from 0° to 90° and can be used in a temperature range from -40°C to +200°C. It is manufactured in accordance with the Machinery Directive 2006/42/EC and carries the CE mark. It complies with the EN 1677-1,5; EN 818-1,7; EN 13155; EN 1889 standards and has a safety factor of 4:1, ensuring safety and reliability. This TP product is a weld-on type. Additionally, we offer the TP product in both male-double swivel eye bolt and female-double swivel eye nut forms.

Warranty: 1 year
Warrning: This device is not suitable for rotation during loading!

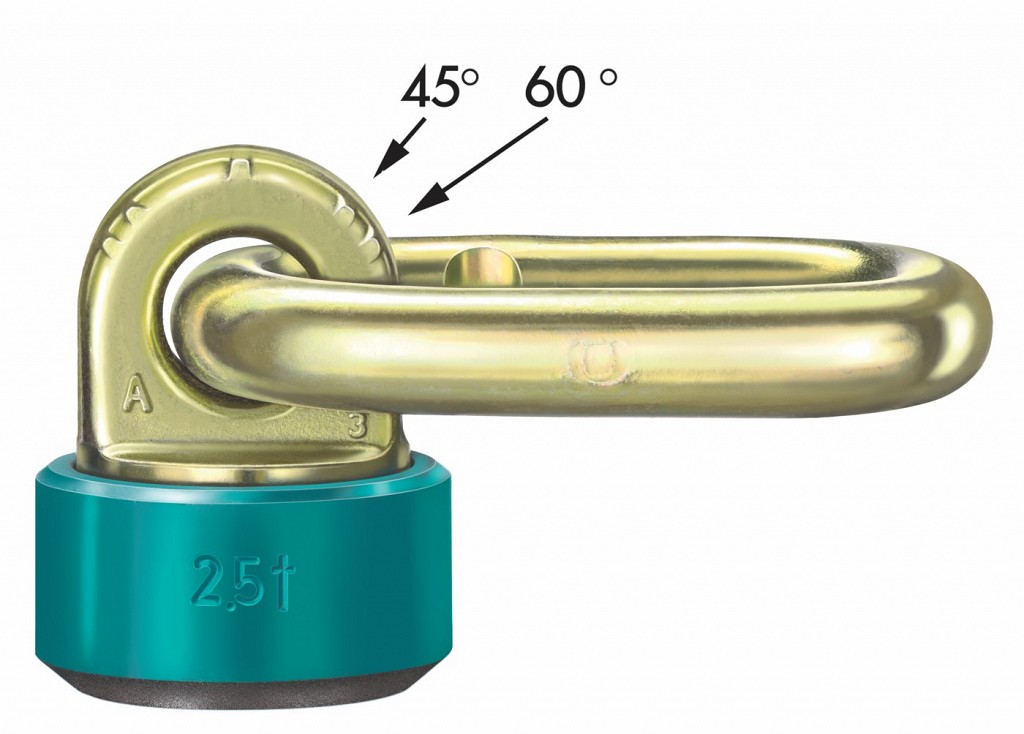

Caution: When using eye bolts at an angle, their load capacity is reduced and may be lower than the declared capacity. For specific load capacity values when lifting at different angles, please refer to the table in the specifications section above.

Images of the products are symbolic.

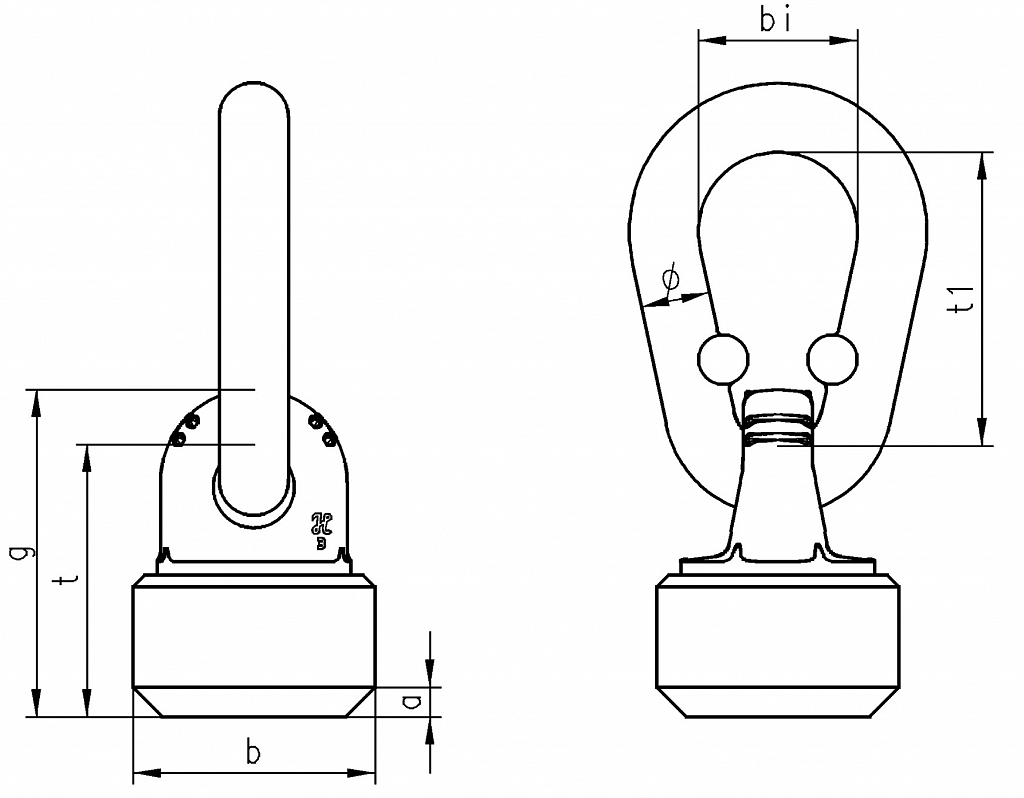

The table presents eyebolts type TP-S, their dimensions and other technical characteristics.

Type	a (mm)	b ( mm )	g (mm)	t ( mm)	Link Ø x t x b	Weight (≈kg)	Art. No.
TPS 2,5	5,5 x 45°	52	68	57	16 x 70 x 34	0,95	462601
TPS 4	7,0 x 45°	57	74	62	18 x 85 x 45	1,30	462602
TPS 6,7	8,5 x 45°	70	95	78	20 x 85 x 45	2,20	462603
TPS 10	10 x 45°	80	106	86	23 x 115 x 60	3,80	462604
TPS 17	12 x 45°	100	129	106	30 x 140 x 70	6,66	462605

Pictograms
Number of pieces	1	1	2	2	2	2	3 - 4	3 - 4
Inclination angle	0°	90°	0°	90°	0°-45°	45°-60°	0°-45°	45°-60°
	Working load limit
Type	(t)	(t)	(t)	(t)	(t)	(t)	(t)	(t)
TP-S 2,5	5	2,5	10	5	3,55	2,5	5,3	3,75
TP-S 4	8	4	16	8	5,6	4	8,5	6
TP-S 6,7	12	6,7	24	13,4	9,5	6,7	14	10
TP-S 10	15	10	30	20	14	10	21,2	15
TP-S 17	25	17	50	34	23,5	17	35	25
