Eye bolt DSS

Code: 463501

Brand: P TEAM

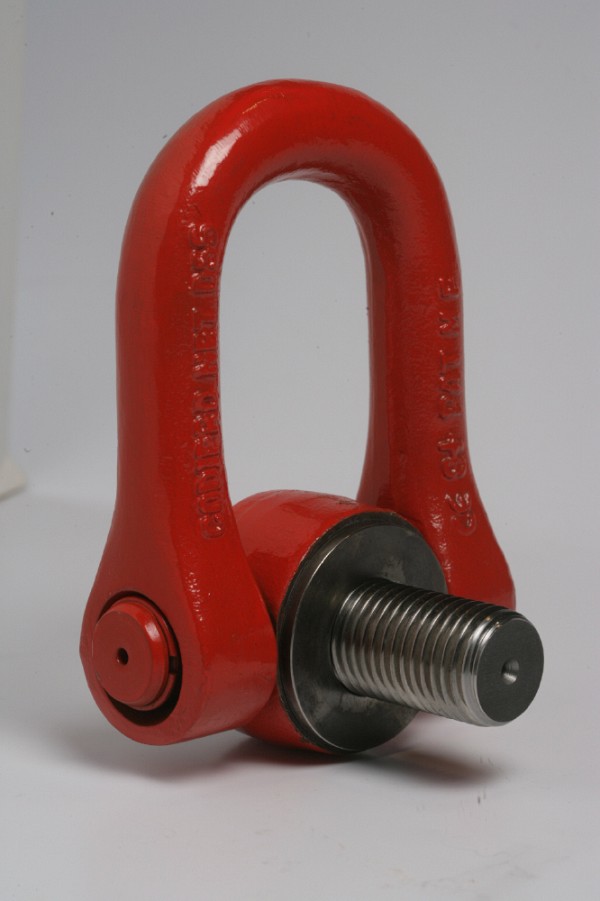

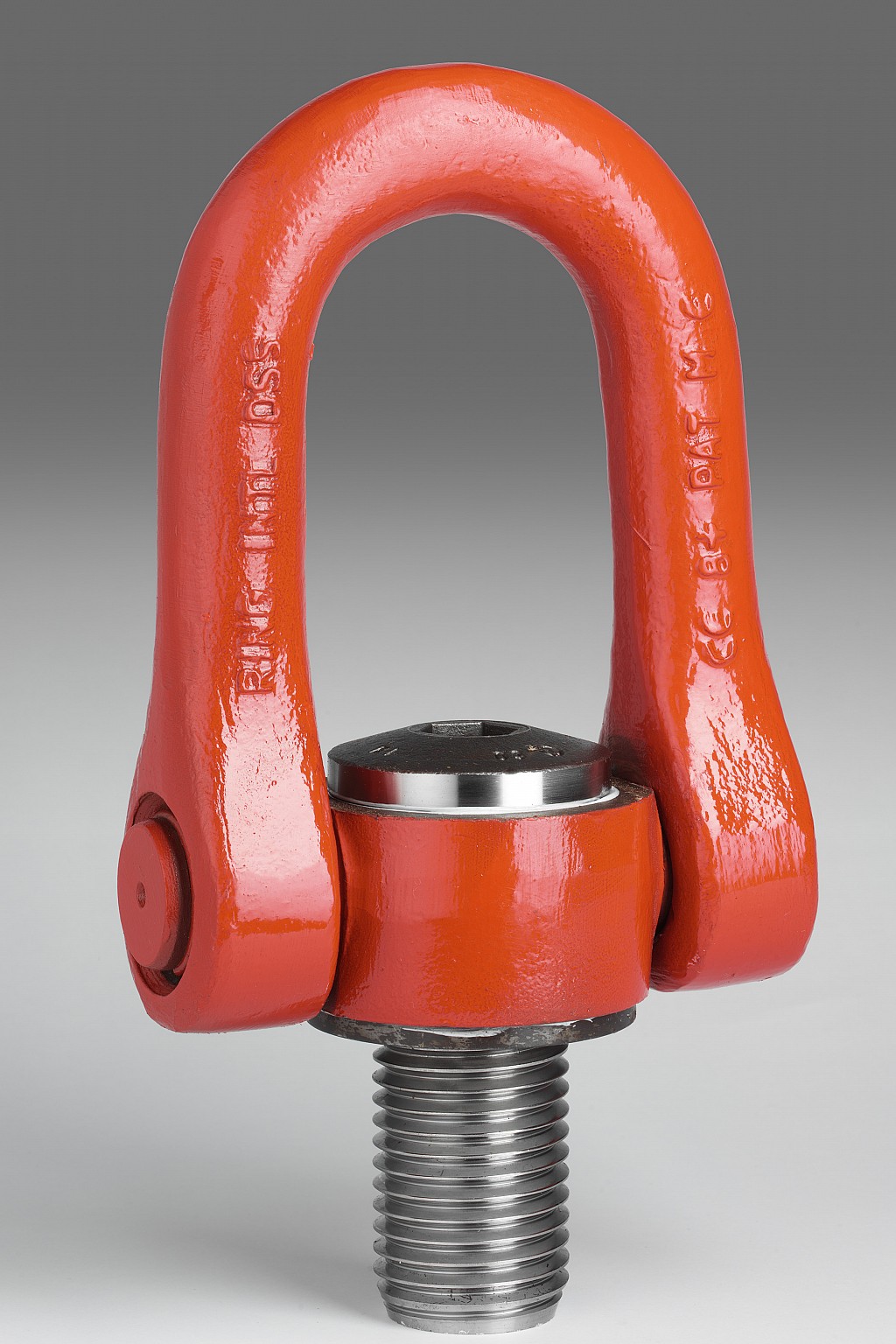

The DSS eye bolt is a double swivel hoist ring designed for safely lifting loads at various angles. The bail on this double swivel eye bolt can pivot 180°, and the body can rotate 360°, allowing lifting from any direction. Upon lifting, this flexibility ensures that the swivel eye bolt completely aligns with the lifting chain. The double swivel function of the DSS eye bolt makes it ideal for safe and efficient lifting and maneuvering of loads in different directions.

Thread:

Working load limit:

Reset options

In Stock

Price:

from 66,61 €

Add to cart

You have a question about this product?

More details
Specifications

DSS double swivel hoist ring can pivot 180°, and rotate 360°, making it possible to lift from any direction. This flexibility ensures that the swivel ring aligns completely with the lifting chain. The DSS eye bolt is approved for all lifting configurations from 0° to 90° and can be used in a temperature range from -20°C to +200°C. It is manufactured in accordance with the Machinery Directive 2006/42/EC and carries the CE mark. It complies with the EN 1677-1 standard and has a safety factor of 4:1, ensuring safety and reliability. We offer the DSS product in both male-double swivel eye bolt and female-double swivel eye nut forms. Compared to DSR type products, DSS type products have a higher load capacity.

Warranty: 1 year
Warrning: This device is not suitable for rotation during loading!
Caution: When using eye bolts at an angle, their load capacity is reduced and may be lower than the declared capacity. For specific load capacity values when lifting at different angles, please refer to the table in the specifications section above.

Images of the products are symbolic.

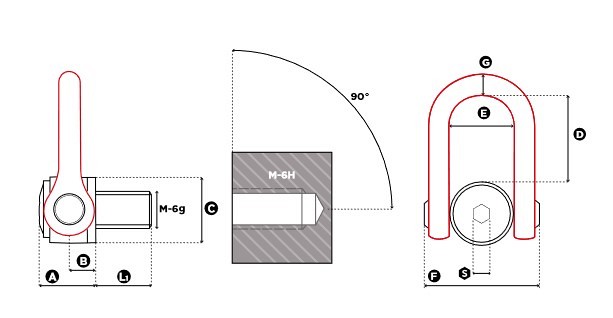

The table presents eyebolts type DSS, their dimensions and other technical characteristics.

Thread version	Working load limit (t)	Thread length L1 (mm)	Torque (Nm)	S (mm)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	Weight (kg)	Art. No.
M 24	4,5	36	160	19	61	31	70	98	73	149	33	5,4	463501
M 30	7,7	45	250	19	61	31	70	98	73	149	33	5,5	463502
M 33	8,5	50	250	19	61	31	70	98	73	149	33	5,5	463503
M 36	11	54	320	19	61	31	70	98	73	149	33	5,5	463504
M 36x3	11	54	320	19	61	31	70	98	73	149	33	5,5	463505
M 39	12	58	320	19	61	31	70	98	73	149	33	5,7	463506
M 42	13	63	400	19	61	31	70	98	73	149	33	5,8	463507
M 42x3	13	63	400	19	61	31	70	98	73	149	33	5,8	463508
M 45	14,5	63	400	19	61	31	70	98	73	149	33	5,9	463509
M 48	17	68	600	19	79	38	90	123	91	182	45	11	463510
M 48x3	17	68	600	19	79	38	90	123	91	182	45	11	463511
M 48x4	17	68	600	19	79	38	90	123	91	182	45	11	463512
M 52	19	68	600	19	79	38	90	123	91	182	45	11,2	463513
M 56	22	78	600	19	79	38	90	123	91	182	45	11,3	463514
M 56	22	78	600	19	79	38	90	123	91	182	45	11,4	463515
M 64	25	90	600	19	79	38	95	123	91	182	45	12,2	463516
M 64x4	25	90	600	19	79	38	95	123	91	182	45	12,2	463517
M 72	25	90	600	19	79	38	95	123	91	182	45	14	463518
M 72x4	25	90	600	19	79	38	95	123	91	182	45	14	463519
M 80	25	90	600	19	79	38	100	123	91	182	45	15	463520
M 90	25	90	600	19	79	38	100	123	91	182	45	15,5	463521
M 100	25	90	600	19	79	38	110	123	91	182	45	16,5	463522

Pictograms
Number of rings		1	2	1	2	2		3 - 4
Lifting Angle		0°	0°	90°	90°	0° - 45°	45° - 60°	0° - 45°	45° - 60°
	Torque (Nm)	Working load limit (t)
DSS M 24	160	9	18	4,5	9	6,3	4,5	9,45	4,5
DSS M 30	250	14	28	7,7	15,4	10,78	7,7	16,17	7,7
DSS M 33	250	14,5	29	8,5	17	11,9	8,5	17,85	8,5
DSS M 36	320	15	30	11	22	15,4	11	23,1	11
DSS M 36x3	320	15	30	11	22	15,4	11	23,1	11
DSS M 39	320	15	30	12	24	16,8	12	25,2	12
DSS M 42	400	15	30	13	26	18,2	13	27,3	13
DSS M 42x3	400	15	30	13	26	18,2	13	27,3	13
DSS M 45	400	15	30	14,5	29	20,3	14,5	30,45	14,5
DSS M 48	600	22	44	17	34	23,8	17	35,7	17
DSS M 48x3	600	22	44	17	34	23,8	17	35,7	17
DSS M 48x4	600	22	44	17	34	23,8	17	35,7	17
DSS M 52	600	23	46	19	38	26,6	19	39,9	19
DSS M 56	600	25	50	22	44	30,8	22	46,2	22
DSS M 56x4	600	25	50	22	44	30,8	22	46,2	22
DSS M 64	600	25	50	25	50	35	25	52,5	25
DSS M 64x4	600	25	50	25	50	35	25	52,5	25
DSS M 72	600	25	50	22	44	30,8	22	46,2	22
DSS M 72x4	600	25	50	22	44	30,8	22	46,2	22
DSS M 80	600	25	50	25	50	35	25	52,5	25
DSS M 90	600	25	50	25	50	35	25	52,5	25
DSS M 100	600	25	50	25	50	35	25	52,5	25
