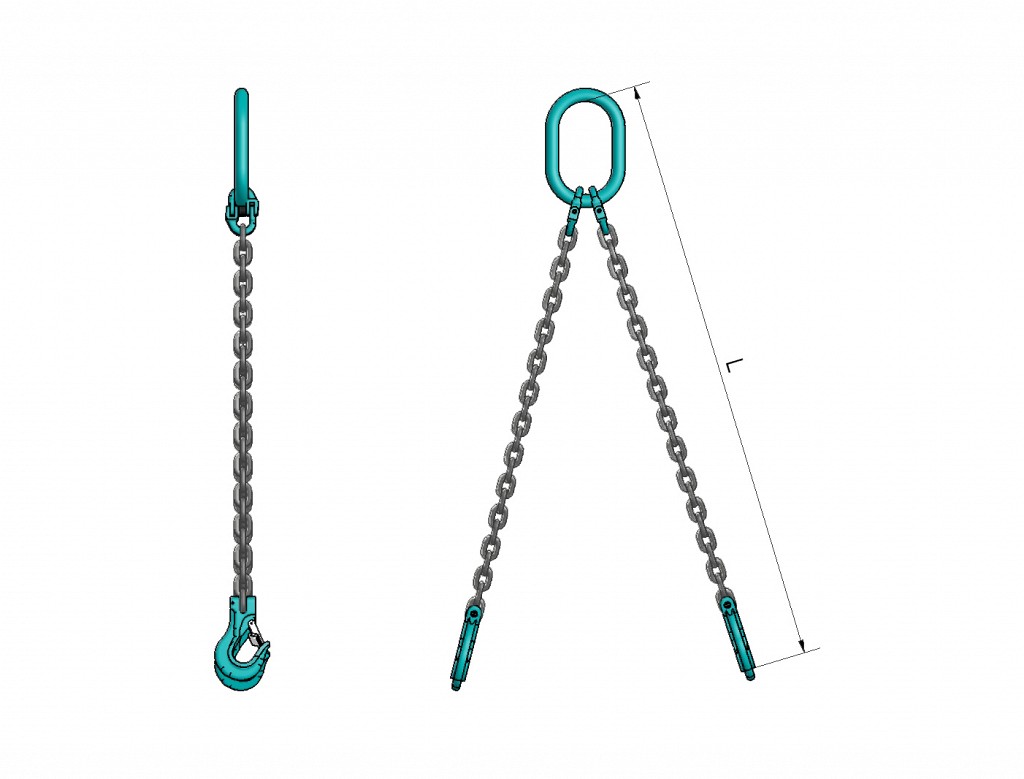

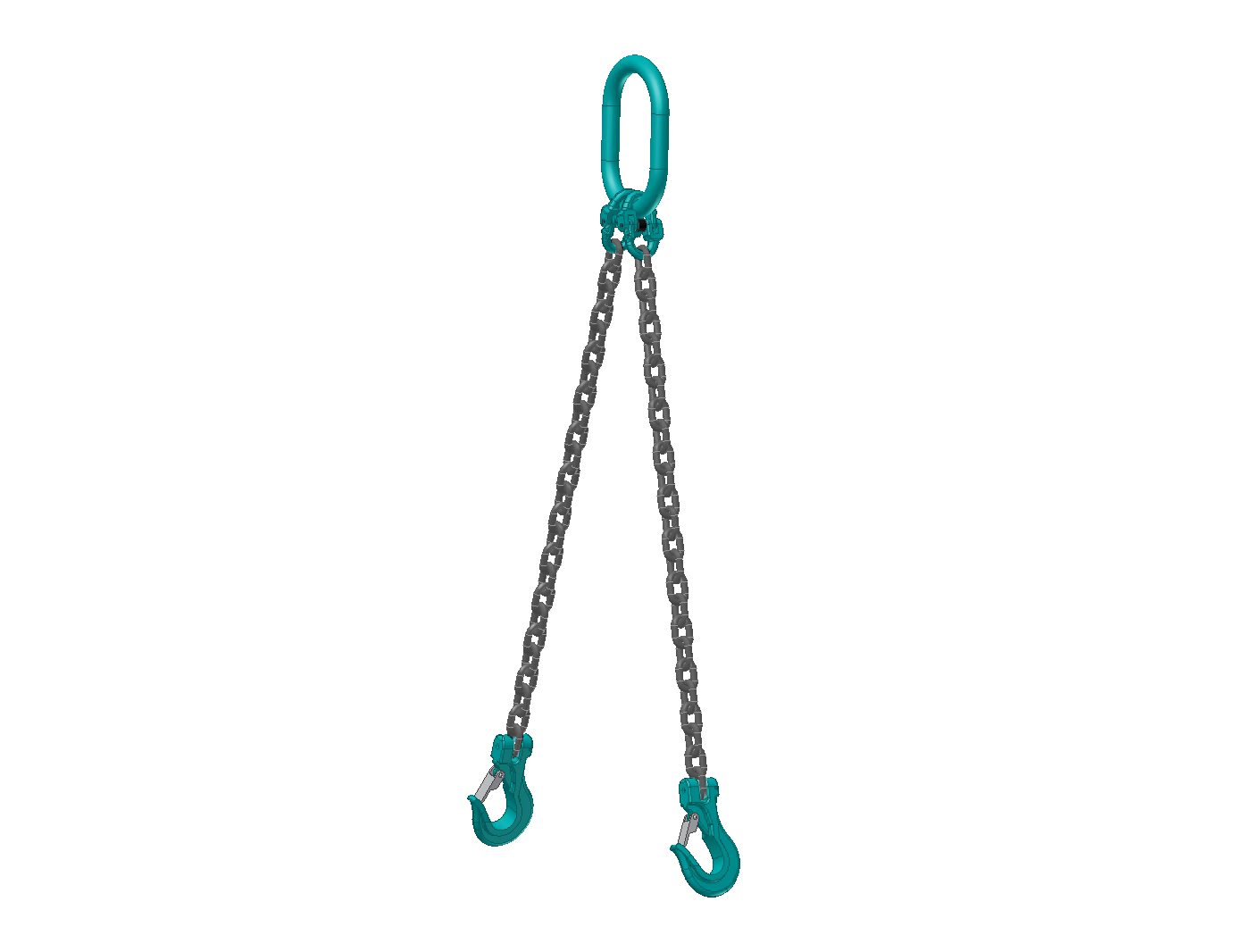

2-legged lifting chain VB 202, grade 100

This product is a two-leg chain sling. This chain sling includes a master link and a hook with a safety latch. This is a grade 100 product. The store offers lifting chain slings in grades 80, 100, and 120. A higher grade number indicates the use of higher quality steel, resulting in increased tensile strength and a higher working load limit. Chain slings are manufactured in Slovenia and made in accordance with the 818 standard. They have a safety factor of 4:1. Lifting slings can be used in temperatures ranging from -20°C to +150°C, but it is recommended to consult the manufacturer before using them in temperature thresholds. Each sling is supplied with instructions for use and a CE declaration of conformity. The product can be customized to meet specific requirements. The chain sling may only be shortened using shortening links. If you anticipate needing to adjust its length, our store also offers this type of chain sling available with a shortening link.

• Warranty: 1 year
• Warning: The working load limits for different lifting methods may vary from the declared limits, necessitating strict adherence to the operating instructions! Please refer to the table below for details regarding the WLL for different lifting configurations.

Images of the products are symbolic.

The table presents working load limits for chain slings type VB 202, grade 100.

Angle	0°- 45°	45°- 60°	0°- 45°	45°-60°	0°- 45°	45°- 60°
F	1.4	1	1.12	0.8	1.1	0.8
Diameter (mm)	Working load limit (kg)
6 7	2000 2660	1400 1900	1560 2100	1120 1500	1540 2000	1120 1500
8 10	3500 5600	2500 4000	2800 4400	2000 3200	2750 4400	2000 3200
13 16	9300 14000	6700 10000	7500 11200	5300 8000	7300 11000	5300 8000
18 19	17500 19600	12500 14000	14000 15600	10000 11200	13700 15400	10000 11200
20 22	22400 26600	16000 19000	17900 21200	12800 18200	17600 20000	12800 18200
26	37000	26500	29000	21000	29000	21000
