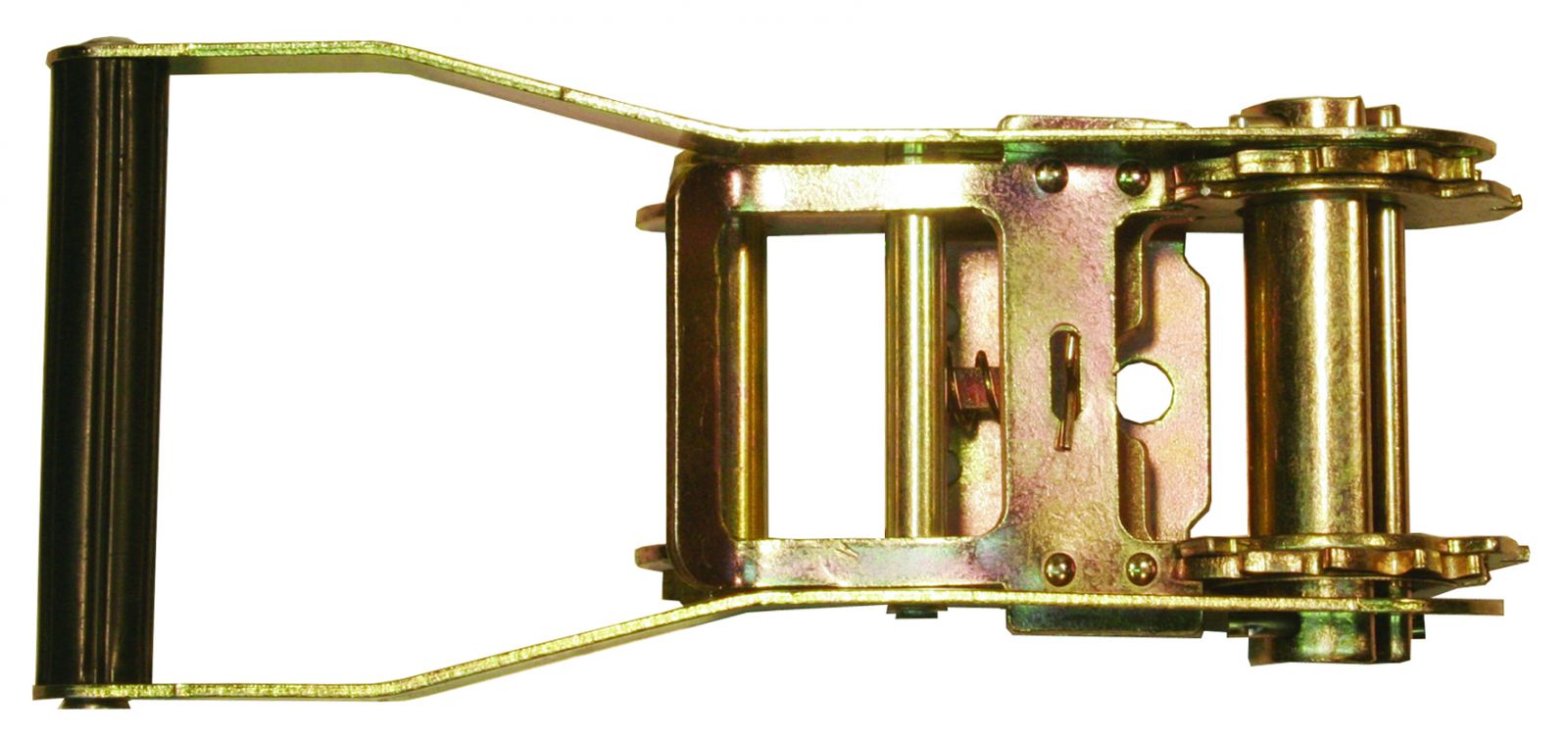

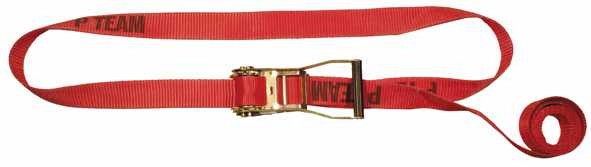

This lashing strap is 50 mm wide and has a working load limit of 2000/4000 daN. It is equipped with a ratchet. Ratchet straps make it possible to fasten larger and heavier loads and create tighter securement. Although this product is an endless type of lashing, it can also be customized with various end fittings. The table below shows every end fitting option that is available. The length of the lashings can be altered to meet specific requirements. Lashings are manufactured in Slovenia. Each product is supplied with instructions for use and a checklist of inspections.
Images of the products are symbolic.
The table shows possible configurations for type 50 lashings and other technical characteristics.
Art. No. | Ratchet | End fittings | Type | |
5411 | RP hook | Lashing with RP hook, 50 mm, 2000/4000 daN | ||
5412 | ZR hook | Lashing with ZR hook, 50 mm, 2000/4000 daN | ||
5412 | ZR hook | Lashing with ZR hook, 50 mm, 2000/4000 daN | ||
5415 | EV hook | Lashing with EV hook, 50 mm, 2000/4000 daN | ||

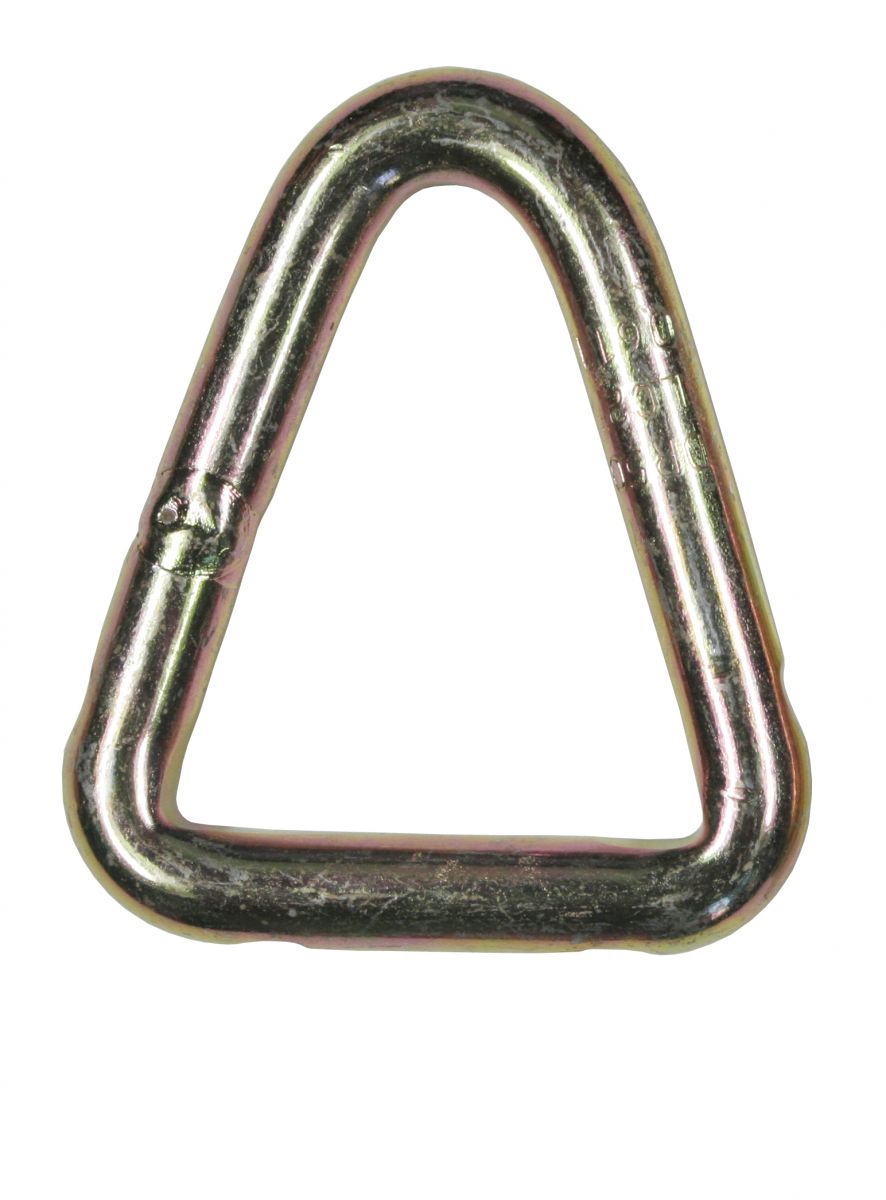

5413 | D ring | Lashing with D ring, 50 mm, 2000/4000 daN | ||
5416 | KRONE hook | Lashing with KRONE hook, 50 mm, 2000/4000 daN | ||
5414 | PL hook | Lashing with PL hook, 50 mm, 2000/4000 daN | ||
5417 | PK hook | Lashing with PK hook, 50 mm, 2000/4000 daN | ||
5410 | Endless | Lashing - endless, 50 mm, 4000 daN |
Working load limits vary depending on the type of lashing application. The table provides the working load limits for lashings type 50 in various applications.
2000 daN | 4000 daN | 4000 daN |
