Lashing sling 75 mm, 5000/10000 daN - with end fittings

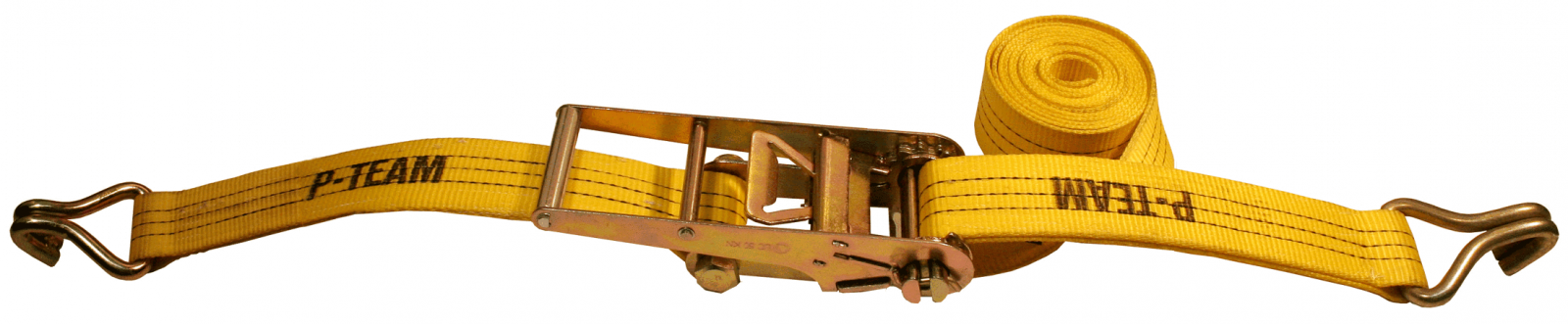

This lashing strap is 75 mm wide and has a working load limit of 5000/10000 daN. It is equipped with a ratchet. Ratchet straps make it possible to fasten larger and heavier loads and create tighter securement. Although this product is equipped with RP hooks, it can also be customized with various end fittings. The table below shows every end fitting option that is available. The length of the lashings can be altered to meet specific requirements. Lashings are manufactured in Slovenia. Each product is supplied with instructions for use and a checklist of inspections.

• Warranty: 1 year

Images of the products are symbolic.
The table shows possible configurations for type 75 lashings and other technical characteristics.

Art. No.	Ratchet	End fittings		Type
5711			RP hook	Lashing with RP hook, 75 mm, 5000/10000 daN
5713			ST ring	Lashing with ST ring, 75 mm, 5000/10000 daN
5712			SK hook	Lashing with SK hook, 75 mm, 5000/10000 daN
5710		Endless		Lashing - endless, 75 mm, 10000 daN

Working load limits vary depending on the type of lashing application. The table provides the working load limits for lashings type 75 in various applications.

5000 daN	10000 daN	10000 daN
