Hand winch type 4483

Code: 936315

Brand: P TEAM

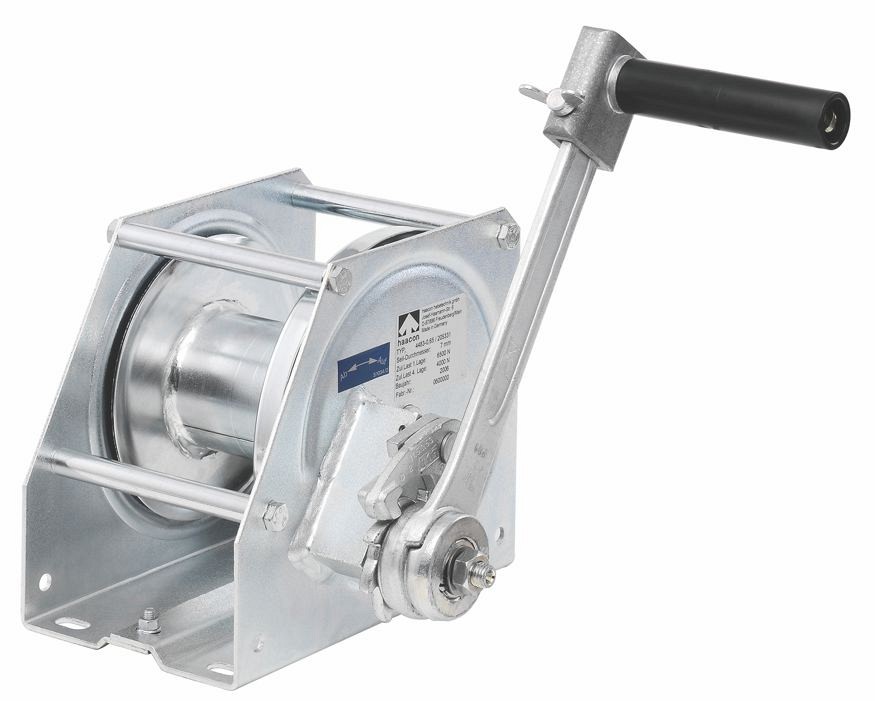

Hand rope winch type 4483, suitable for industrial use and with load capacity up to 650 kg. The product is suitable for base mounting with mounting bracket. For further technical details, please refer to the table in the detailed product description. Galvanized products are protected against elements that may cause accelerated corrosion or deterioration to the product.

Material: galvanized

Mounting method: on the console

Working load limit: 650 kg

Reset options

In Stock

Price:

774,70 €

Add to cart

You have a question about this product?

More details

The store offers hand winches from a variety of materials, designed to fulfill your diverse requirements. This product is zinc plated. Additionally, the store offers powder coated or stainless steel products. Powder coating offers superior protection against UV rays and physical damage. Stainless steel has an even better resistance and will remain rust free for much longer. Aditionally, it is long lasting. Installation and maintenance instructions are included with delivery.

Warranty: 1 year

Images of the products are symbolic.
The table presents technical characteristics of hand rope winch type 4483.

Technical data	Type
Technical data	4483.0,65
capacity	650 kg
- 1^strope position	650 kg
- 4^thrope position	400 kg
lift / crank turn
1^strope position	39 mm
crank force	195 N
rope capacity	28 m
rope Ø	6 mm
weight (w/o rope)	8,8 kg
Art. No. zinc plated winch	936315
