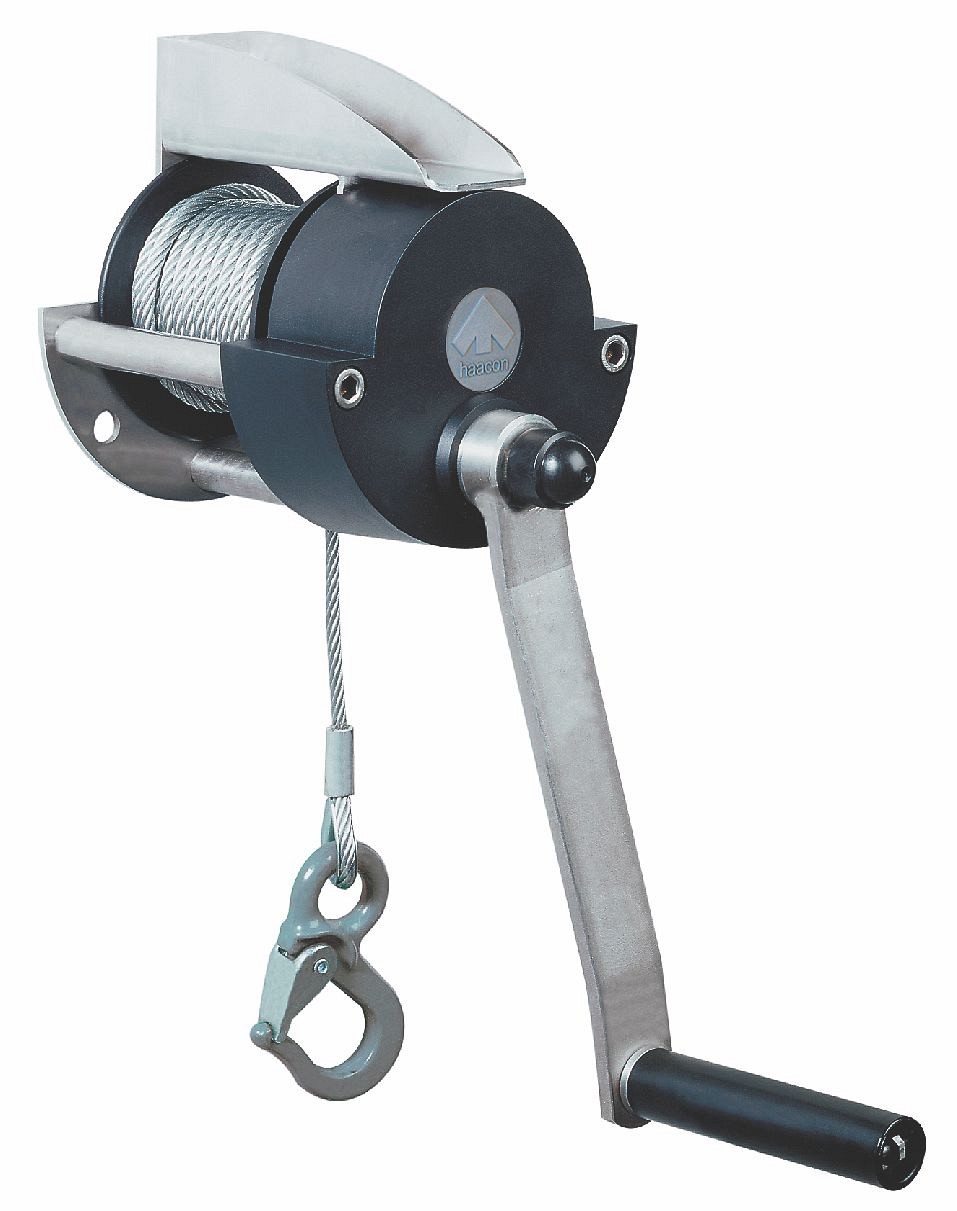

The store offers hand winches from a variety of materials, designed to fulfill your diverse requirements. This product is stainless steel. Additionally, the store offers zinc plated or powder coated products. Zinc plating offers protection against elements that may cause accelerated corrosion or deterioration to the product. Powder coating offers superior protection against UV rays and physical damage. Installation and maintenance instructions are included with delivery.
Images of the products are symbolic.
The table presents technical characteristics of hand rope winch type WE.
|
Technical data |
Type |
|
|
WE 300 |
WE 500 |
|
|
capacity |
300 kg |
500 kg |
|
wire rope Ø |
4 mm |
5 mm |
|
rope capacity max. |
29 m |
22 m |
|
cable drum Ø |
60 mm |
60 mm |
|
crank force |
160 N |
200 N |
|
lift / crank turn |
64 mm |
46 mm |
|
gear ratio |
3,1 |
4,5 |
|
weight |
5 kg |
5 kg |
|
Art. No. Stainless steel winch |
936307 |
936308 |
