Hand winch type KWE

Code: 936319

Brand: P TEAM

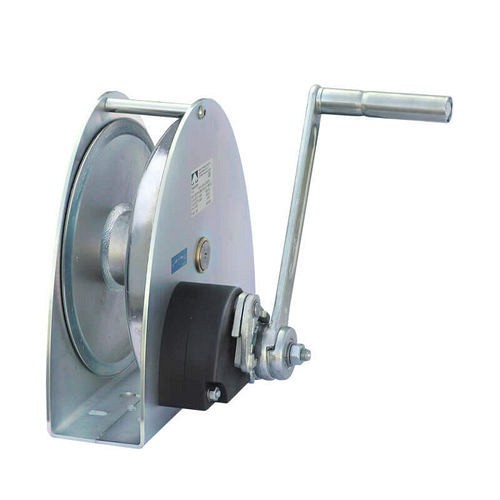

Hand rope winch type KWE, suitable for industrial use. Three types are avalible with varying load capacities, up to 250 kg, 650 kg or up to 1000 kg. The product is suitable for base mounting with mounting bracket. For further technical details, please refer to the table in the detailed product description. Stainless steal products have a better resistance and will remain rust free for much longer. Aditionally, they are the most long lasting.

Material: stainless steel

Mounting method: on the console

Working load limit:

Reset options

Availability: 10 do 14 dni

Price:

from 633,18 €

Add to cart

You have a question about this product?

More details

The store offers hand winches from a variety of materials, designed to fulfill your diverse requirements. This product is stainless steel. Additionally, the store offers zinc plated or powder coated products. Zinc plating offers protection against elements that may cause accelerated corrosion or deterioration to the product. Powder coating offers superior protection against UV rays and physical damage. Installation and maintenance instructions are included with delivery.

Warranty: 1 year

Images of the products are symbolic.

The table presents technical characteristics of hand rope winch type KWE.

Technical data	Type
Technical data	KWE 250	KWE 650	KWE 1000
capacity	250 kg	650 kg	1000 kg
wire rope Ø	4 mm	7 mm	8 mm
- 1^strope position	250 kg	650 kg	1000 kg
- 4^thrope position	125 kg	340 kg	390 kg
rope capacity max.	22 m	16 m	28,5 m
cable drum Ø	36 mm	70 mm	75 mm
crank force	220 N	240 N	200 N
lift / crank turn	126 mm	46 mm	16 mm
weight	4 kg	9,3 kg	16 kg
Art. No. Stainless steel winch	936319	936320	936321
