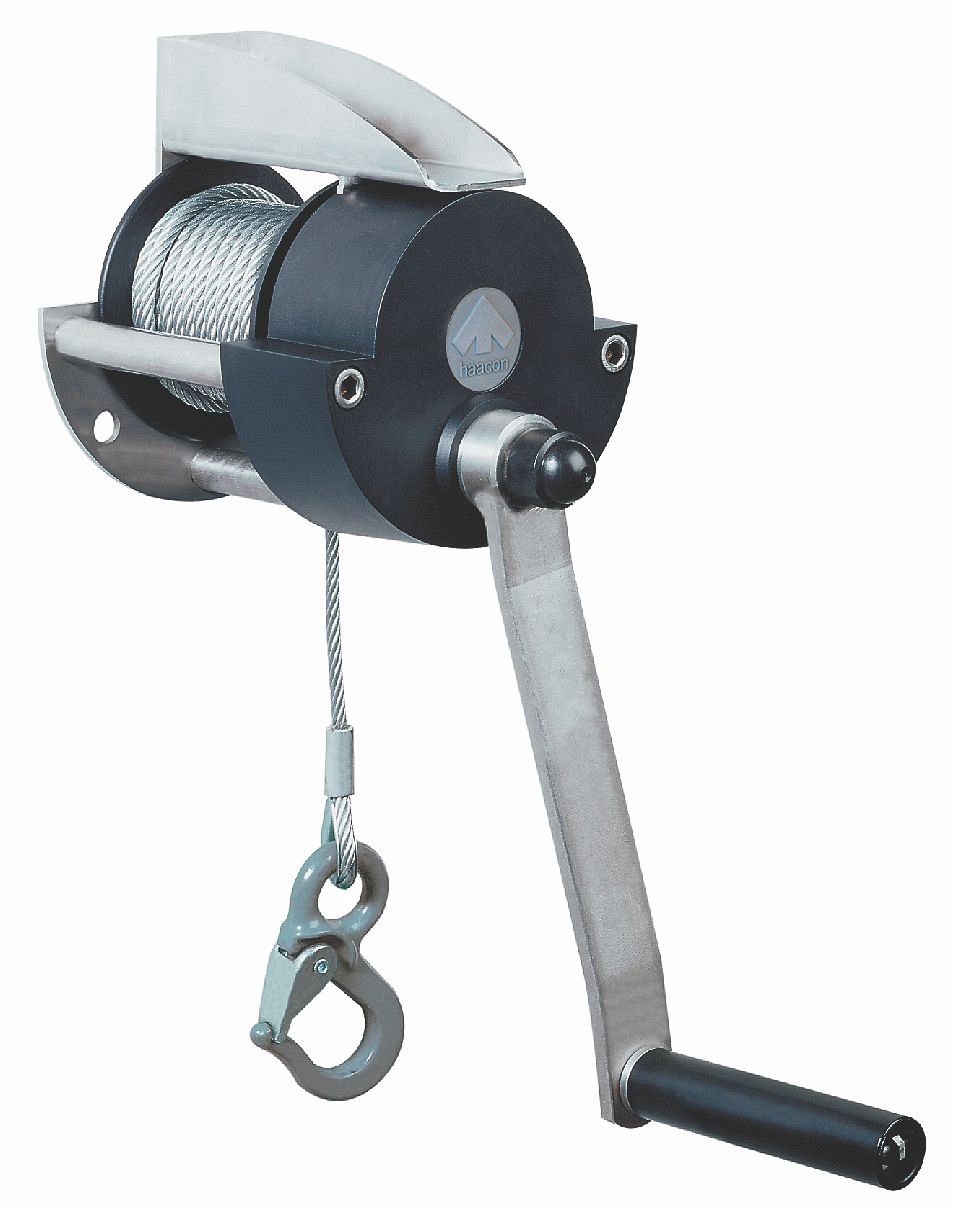

Hand winch type WV

Code: 936306

Brand: P TEAM

Hand rope winch type WV, suitable for industrial use. Two types are avalible with varying load capacities, up to 300 kg or up to 500 kg. The product is wall mounted. For further technical details, please refer to the table in the detailed product description. Galvanized products are protected against elements that may cause accelerated corrosion or deterioration to the product.

Material: galvanized

Mounting method: on the wall

Pull force:

Reset options

In Stock

Price:

from 446,52 €

Add to cart

You have a question about this product?

More details

The store offers hand winches from a variety of materials, designed to fulfill your diverse requirements. This product is zinc plated. Additionally, the store offers powder coated or stainless steel products. Powder coating offers superior protection against UV rays and physical damage. Stainless steel has an even better resistance and will remain rust free for much longer. Aditionally, it is long lasting. Installation and maintenance instructions are included with delivery.

Warranty: 1 year

Images of the products are symbolic.
The table presents technical characteristics of hand rope winch type WV.

Technical data	Type
Technical data	WV 300	WV 500
capacity	300 kg	500 kg
wire rope Ø	4 mm	5 mm
rope capacity max.	29 m	22 m
cable drum Ø	60 mm	60 mm
crank force	160 N	200 N
lift / crank turn	64 mm	46 mm
gear ratio	3,1	4,5
weight	5 kg	5 kg
Art. No. zinc plated winch	936305	936306
