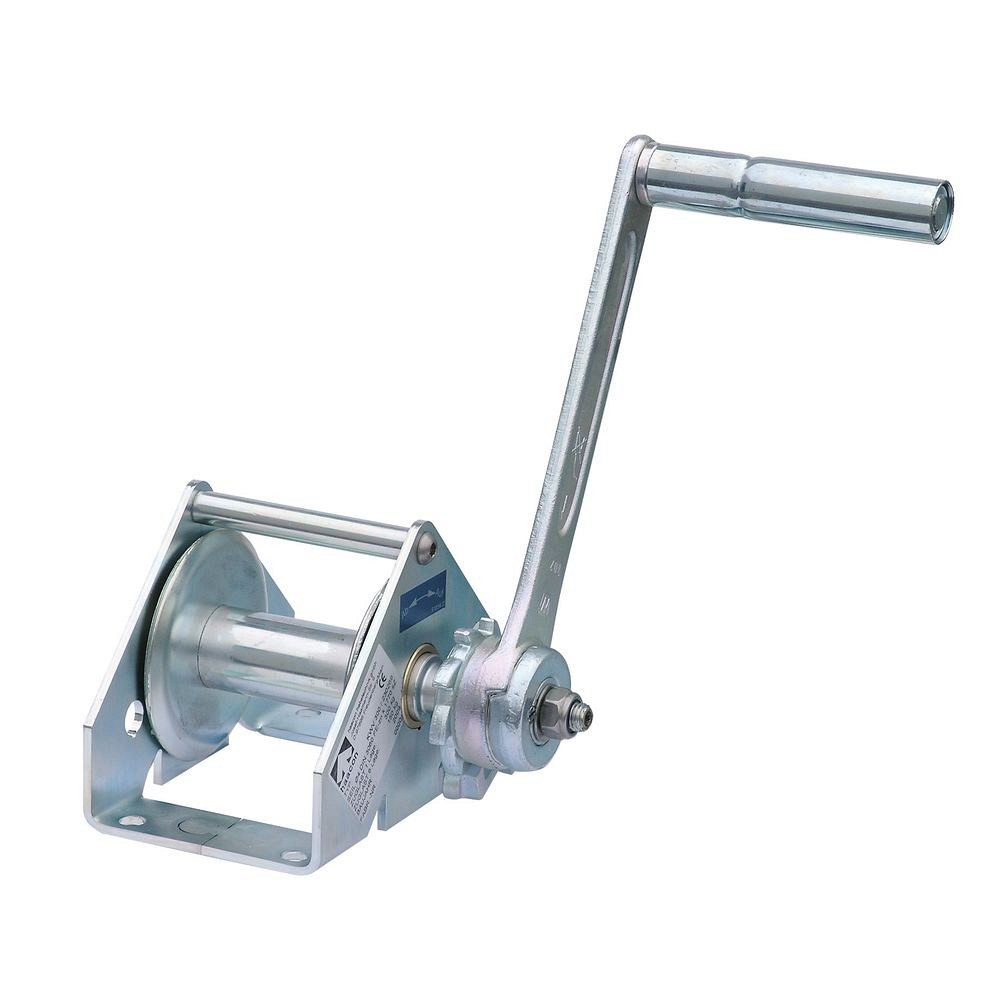

Hand winch type KWV

Code: 936316

Brand: P TEAM

Hand rope winch type KVE, suitable for industrial use. Three types are avalible with varying load capacities, up to 300 kg, 650 kg or up to 1125 kg. The product is suitable for base mounting with mounting bracket. For further technical details, please refer to the table in the detailed product description. Galvanized products are protected against elements that may cause accelerated corrosion or deterioration to the product.

Material: galvanized

Mounting method: on the console

Working load limit:

Reset options

In Stock

Price:

from 450,18 €

Add to cart

You have a question about this product?

More details

The store offers hand winches from a variety of materials, designed to fulfill your diverse requirements. This product is zinc plated. Additionally, the store offers powder coated or stainless steel products. Powder coating offers superior protection against UV rays and physical damage. Stainless steel has an even better resistance and will remain rust free for much longer. Aditionally, it is long lasting. Installation and maintenance instructions are included with delivery.

Warranty: 1 year

Images of the products are symbolic.
The table presents technical characteristics of hand rope winch type KWV.

Technical data	Type
Technical data	KWV 300	KWV 650	KWV 1250
capacity	300 kg	650 kg	1250 kg
wire rope Ø	4 mm	6 mm	8 mm
- 1^strope position	300 kg	650 kg	1250 kg
- 4^thrope position	150 kg	330 kg	480 kg
rope capacity max.	22 m	23 m	28,5 m
cable drum Ø	36 mm	70 mm	75 mm
crank force	270 N	240 N	240 N
lift / crank turn	126 mm	46 mm	16 mm
weight	4 kg	9 kg	16 kg
Art. No. zinc plated winch	936316	936317	936318
