Hand winch type 4185

Code: 936326

Brand: P TEAM

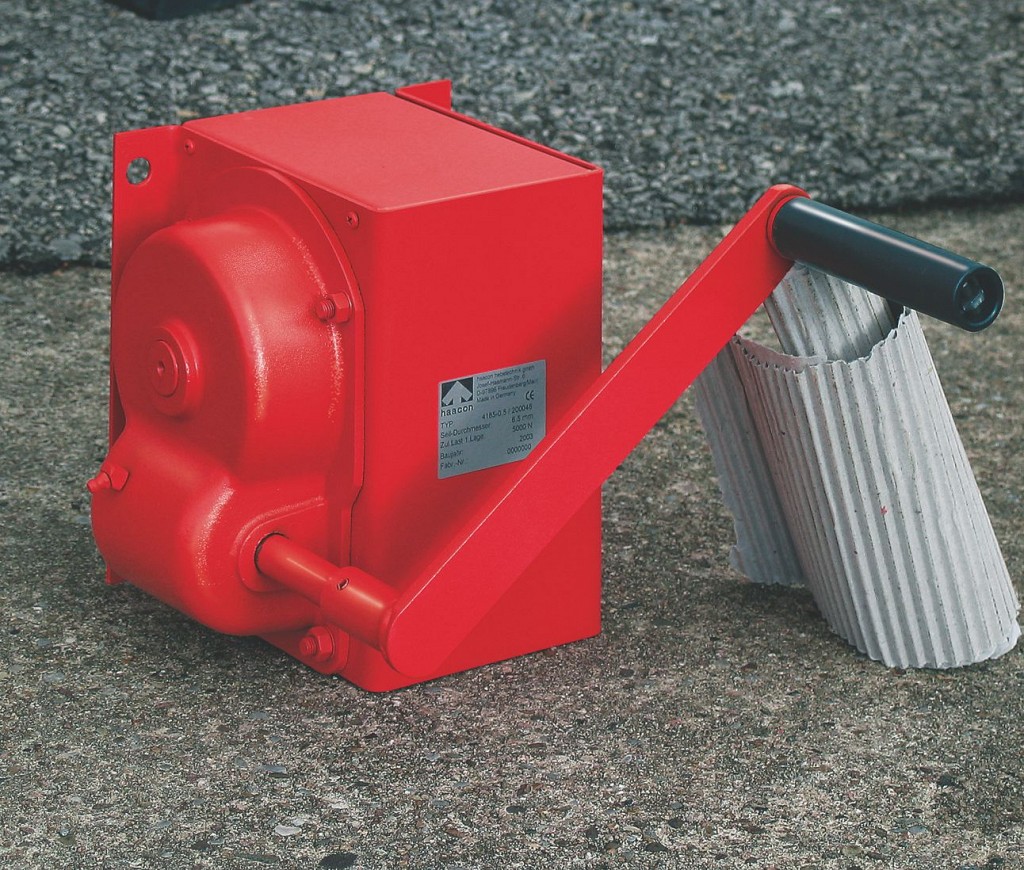

Hand rope winch type 4185, suitable for industrial use. Two types are avalible with varying load capacities, up to 400 kg or up to 500 kg. The product is wall mounted. For further technical details, please refer to the table in the detailed product description. Powder coated products offer improved resistance to UV rays and physical damage, such as scratches and chips, due to thicker protective layer.

Material: metal, powder coated

Mounting method: on the wall

Working load limit: 500 kg

Reset options

Availability: supply 10 to 14 days

Price:

885,72 €

Add to cart

You have a question about this product?

More details

The store offers hand winches from a variety of materials, designed to fulfill your diverse requirements. This product is powder coated. Additionally, the store offers aluminium, zinc plated or stainless steel products. Zinc plating only offers protection against elements that may cause accelerated corrosion or deterioration to the product. In comparison to powder coating, stainless steel has an even better resistance and will remain rust free for much longer. Aditionally, it is long lasting. Installation and maintenance instructions are included with delivery.

Warranty: 1 year

Images of the products are symbolic.
The table presents technical characteristics of hand rope winch type 4185.

Technical data	Type
Technical data	4185.0,5	4751.0,4
capacity	500 kg	400 kg
- 1^strope position	500 kg	400 kg
lift / crank turn	13 mm	7,5 mm
crank force	138 N	180 N
rope capacity	14 m	4 m
wire rope necessary:
DIN 3060 FE zn k 1770 sZ	6,5 mm Ø	6 mm Ø
weight (w/o rope)	12 kg	6 kg
Art. No. powder Coated winch	936326	936327
