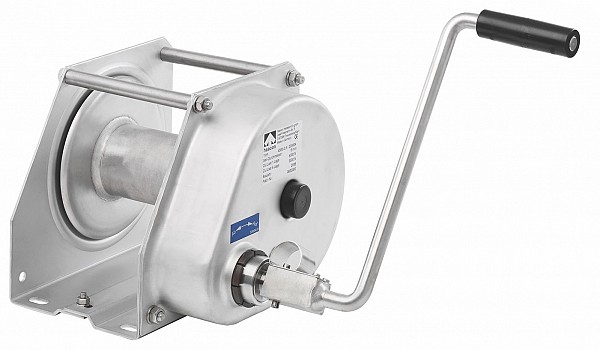

Hand winch type 4485

Code: 936313

Brand: P TEAM

Hand rope winch type 4485, suitable for industrial use. Two types are avalible with varying load capacities, up to 500 kg or up to 750 kg. The product is suitable for base mounting with mounting bracket. For further technical details, please refer to the table in the detailed product description. Stainless steel products have a better resistance and will remain rust free for much longer. Aditionally, they are the most long lasting.

Material: stainless steel

Mounting method: on the console

Working load limit:

Reset options

Availability: 10 do 14 dni

Price:

from 1.166,32 €

Add to cart

You have a question about this product?

More details

The store offers hand winches from a variety of materials, designed to fulfill your diverse requirements. This product is stainless steel. Additionally, the store offers zinc plated or powder coated products. Zinc plating offers protection against elements that may cause accelerated corrosion or deterioration to the product. Powder coating offers superior protection against UV rays and physical damage. Installation and maintenance instructions are included with delivery.

Warranty: 1 year

Images of the products are symbolic.
The table presents technical characteristics of hand rope winch type 4485.

Technical data	Type
Technical data	4485.0,5	4485.0,75
capacity	500 kg	750 kg
- 1^strope position	500 kg	750 kg
- 4^thrope position	350 kg	445 kg
lift / crank turn	37 mm	30 mm
crank force	170 N	180 N
rope capacity	25 m	26 m
wire rope necessary
DIN 3069 FE zn k 1770 sZ	6 mm Ø	6 mm Ø
weight	10 kg	10 kg
Art. No. Stainless steel winch	936313	936314
