Clevis hook for chains SGB with safety latch

Code: 322806
Brand: P TEAM

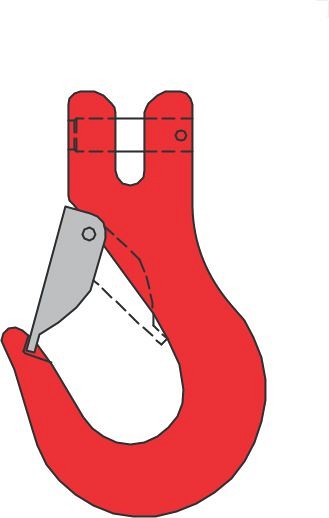

Clevis hook type SGB, red varnished with a galvanized latch. A clevis hook has a U-shaped attachment point that is secured by a bolt or a pin. It can serve as non permanent alternative to eye hooks and provide a mechanical connection to a chain sling. The advantage of a mechanical connection is that if a clevis hook becomes damaged due to stretch, bending, or cracking, it can easily be removed and replaced without scrapping the entire chain sling. Clevis hooks can pivot side to side for positioning when connecting to a load, but don’t have the same flexibility or freedom of movement that an eye hook does.
Read more
Hook type: hook with safety latch

A clevis fastener is a system consisting of a clevis and clevis pin. The clevis is a U-shaped piece that has holes at the end of prongs to accept the clevis pin. The clevis is used to fasten the hook to a bracket or chain. Galvanized latches are protected against elements that may cause accelerated corrosion or deterioration to the product. Forged hooks grade 80 are designed, tested and certified in compliance with the tehnical directives EN 1677.

  • Warranty: 1 year

Images of the products are symbolic.
The table presents hooks type SGB, their dimensions and other technical characteristics.

Type

Working load limit

kg

d

mm

h

mm

l

mm

m

mm

s

mm

t

mm

Weight

kg

Art. No.

SGB 6-8

1120

8

20

115

20

17

81

0,4

322806

SGB 7-8

1500

8,8

21

124

23

18

86

0,5

322807

SGB 8-8

2000

10

22

132

25

19

90

0,6

322808

SGB 10-8

3150

12

29

163

32

22

112

1,0

322810

SGB 13-8

5300

16

35

205

40

28

140

1,9

322813

SGB 16-8

8000

20

43

234

47

33

154

2,8

322816

SGB 18-8

10000

24

56

300

60

43

202

5,6

322818

SGB 19/20-8

12500

24

56

314

69

49

216

6,6

322820
