Shackle type 252

Code: 665131

Brand: Crosby

On a synthetic sling shackle, the bow of the shackle is widened to increase synthetic roundsling efficiency as compared to standard anchor and chain shackle bows and conventional hooks. This design allows for 100% of the sling’s workin load limit to be achieved by preventing the slings from pinching or bunching, which can damage the slings or reduce their rated capacity. Type 252 synthetic sling shackle comes in a bolt type design (type C). Shackles with pin, nut and cotter pin are used for long-term connections and for those purposes where the pin may rotate under load.

Shackle bolt: type C

Shackle shape: belly

Working load limit:

Reset options

In Stock

Price:

from 59,29 €

Add to cart

You have a question about this product?

More details

Increased radius of bow on a synthetic sling shackle gives wider sling bearing surface resulting in an increased area for load distribution and allowing for better load distribution on internal fibers. A bolt type shackle features the combination of a bolt and nut located alongside a cotter pin. These types of shackles remain secure even when the shackle is subjected to rotation or torque. The tightening nut and the cotter pin eliminate the need to tighten the pin prior to every lift or movement of a load. This product is an all aloy construction. Synthetic sling shackle type 252 meets or exceeds all requirements of ASME B30.26. Aditionally, this product meet other critical preformance requrements, including fatigue life, impact properties and material traceability, not addresed by ASME B30.26. Galvanized shackles are protected against elements that may cause accelerated corrosion or deterioration to the product

Warranty: 1 year

Images of the products are symbolic.

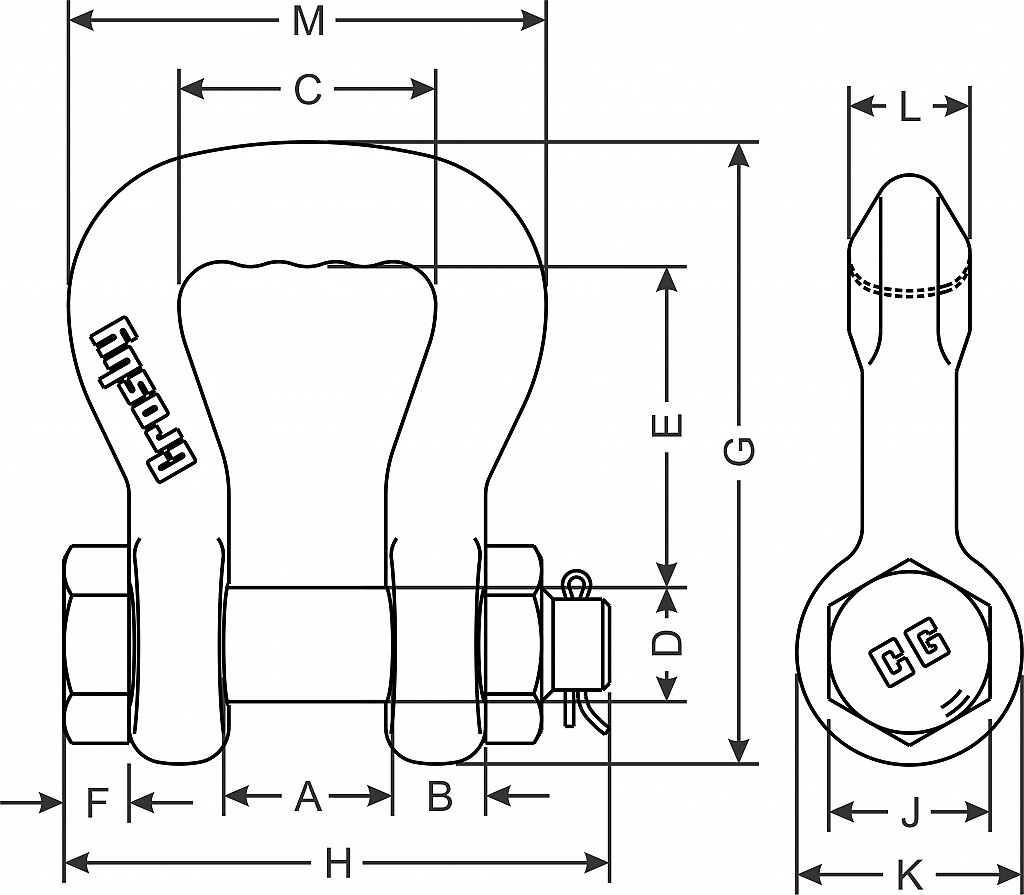

The table presents sling shackles type 252, their dimensions and other technical characteristics.

Web Sling Eye Width mm	Round Sling Size	Weight Each kg	Working Load Limit kg	Dimensions mm												Art. No.
Web Sling Eye Width mm	Round Sling Size	Weight Each kg	Working Load Limit kg	A	B	C	D	E	F	G	H	J	K	L	M	Art. No.
25	1 & 2	0,64	3250	26,9	14,7	35,1	19,1	38,1	11,2	86,0	93,5	28,4	38,1	19,1	68,5	665131
35	3 & 4	1,09	6500	31,8	19,1	44,5	22,4	47,8	12,7	105	108	33,3	46,0	25,4	86,0	665132
50	5 & 6	1,86	8750	35,1	22,4	57,0	25,4	71,5	14,2	140	120	38,1	53,0	28,4	106	665133
75	7 & 8	3,63	12500	41,1	28,4	82,5	31,8	77,5	19,1	161	149	47,8	66,5	35,1	143	665134
100	9 & 10	7,67	20500	54,0	35,1	114	38,1	133	22,4	240	183	57,0	79,0	44,5	191	665135
125	11 & 12	15,9	35000	63,5	44,5	140	51,0	161	28,4	292	236	76,0	106	57,0	233	665136
150	13	26,1	50000	76,0	54,0	165	57,0	196	31,8	349	264	86,0	121	70,0	279	665137
