Shackle type 281

Code: 665111

Brand: HUBERT WALTERMANN

On a synthetic sling shackle, the bow of the shackle is widened to increase synthetic roundsling efficiency as compared to standard anchor and chain shackle bows and conventional hooks. This design allows for 100% of the sling’s workin load limit to be achieved by preventing the slings from pinching or bunching, which can damage the slings or reduce their rated capacity. Shackle type 281 is wider compared to the 253 shackle type. Type 281 synthetic sling shackle comes with a screw pin (type A). Shackles with screw pin are in general not used for long-term connections.

Shackle shape: belly

Working load limit:

Reset options

In Stock

Price:

from 46,34 €

Add to cart

You have a question about this product?

More details

Increased radius of bow on a synthetic sling shackle gives wider sling bearing surface resulting in an increased area for load distribution and allowing for better load distribution on internal fibers. This product is an all aloy construction. Synthetic sling shackle type 281 meets or exceeds all requirements of ASME B30.26. Aditionally, this product meet other critical preformance requrements, including fatigue life, impact properties and material traceability, not addresed by ASME B30.26. Galvanized shackles are protected against elements that may cause accelerated corrosion or deterioration to the product.

Warranty: 1 year

Images of the products are symbolic.

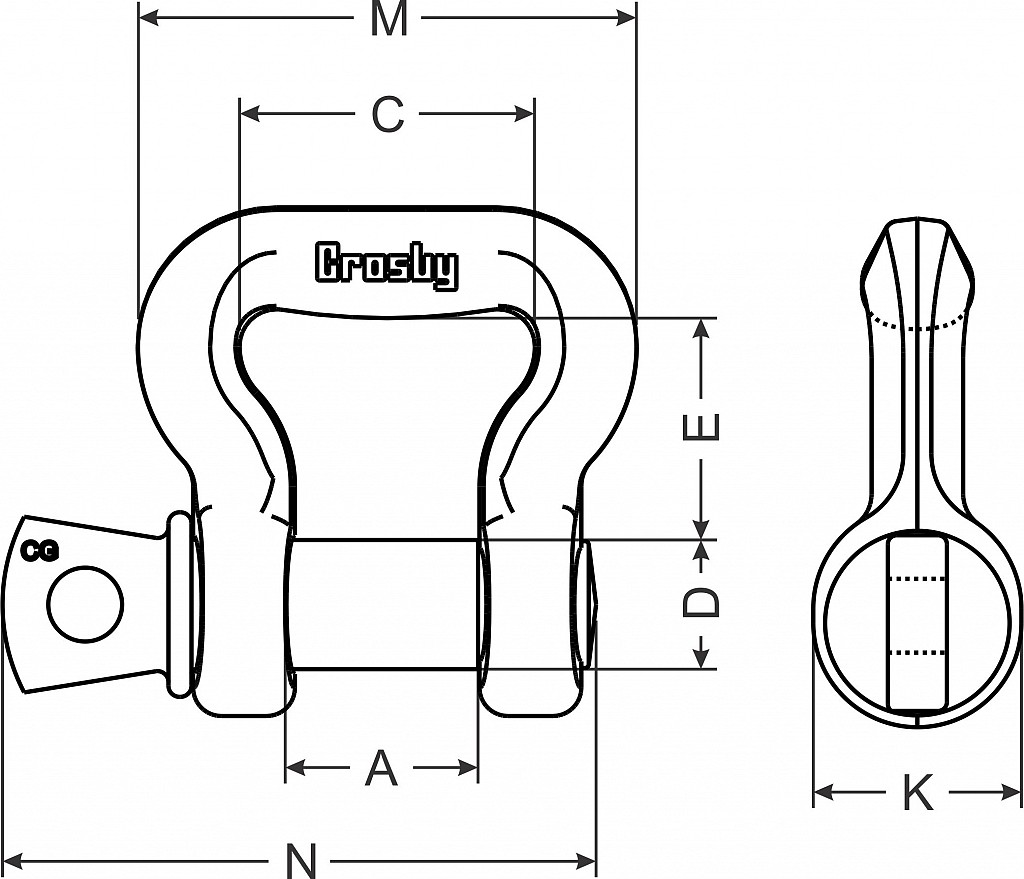

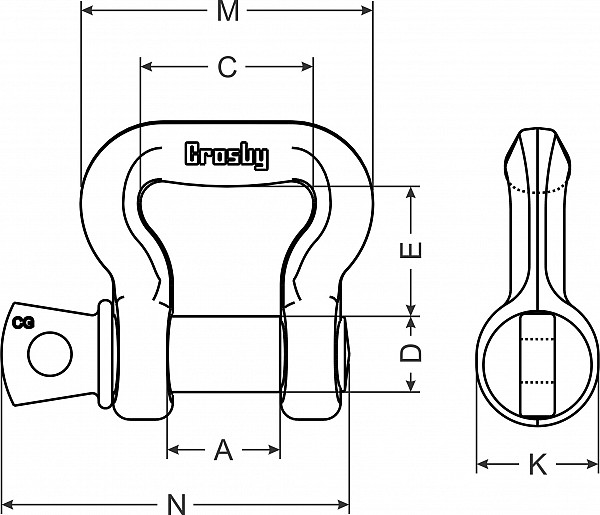

The table presents sling shackles type 281, their dimensions and other technical characteristics.

Round Sling Size	Webbing Width mm	Eye Width mm	Ply	Working Load Limit kg	Weight Each kg	Dimensions mm							Art. No.
Round Sling Size	Webbing Width mm	Eye Width mm	Ply	Working Load Limit kg	Weight Each kg	A	C	D	E	K	M	N	Art. No.
1 & 2	50	50	2	2950	0,54	26,9	63,5	19,1	41,1	31,0	97,5	85,0	665111
3	75	35	2	4080	0,68	31,8	51,0	22,4	38,1	35,8	86,0	101	665113
4	100	50	2	5670	1,13	36,6	63,5	25,4	51,0	41,1	107	114	665114
5 & 6	150	75	2	7700	1,95	42,9	92,0	28,7	70,0	46,7	143	130	665115
