Shackle type 253

Code: 665151

Brand: Crosby

On a synthetic sling shackle, the bow of the shackle is widened to increase synthetic roundsling efficiency as compared to standard anchor and chain shackle bows and conventional hooks. This design allows for 100% of the sling’s workin load limit to be achieved by preventing the slings from pinching or bunching, which can damage the slings or reduce their rated capacity. Type 253 synthetic sling shackle comes with a screw pin (type A). Shackles with screw pin are in general not used for long-term connections.

Shackle bolt: type A

Shackle shape: belly

Working load limit:

Reset options

In Stock

Price:

from 58,63 €

Add to cart

You have a question about this product?

More details

Increased radius of bow on a synthetic sling shackle gives wider sling bearing surface resulting in an increased area for load distribution and allowing for better load distribution on internal fibers. This product is an all aloy construction. Synthetic sling shackle type 253 meets or exceeds all requirements of ASME B30.26. Aditionally, this product meet other critical preformance requrements, including fatigue life, impact properties and material traceability, not addresed by ASME B30.26. Galvanized shackles are protected against elements that may cause accelerated corrosion or deterioration to the product.

Warranty: 1 year

Images of the products are symbolic.

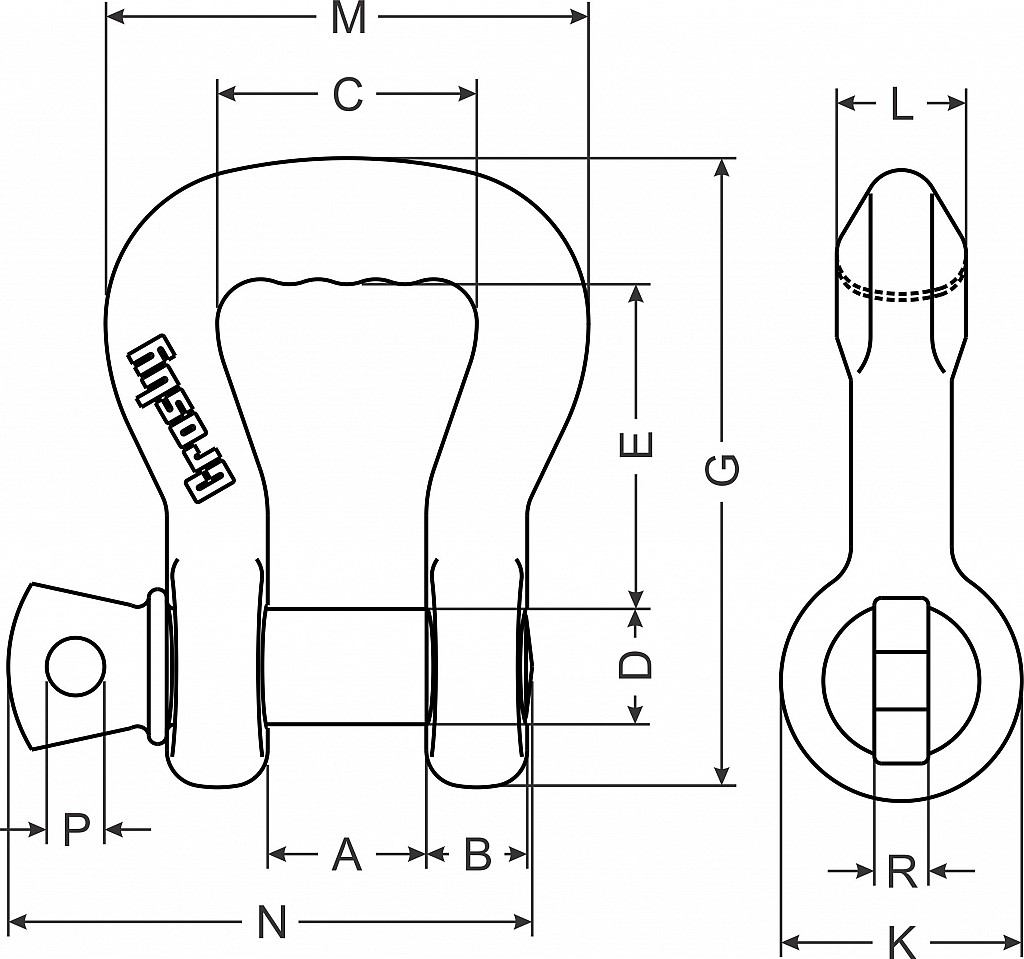

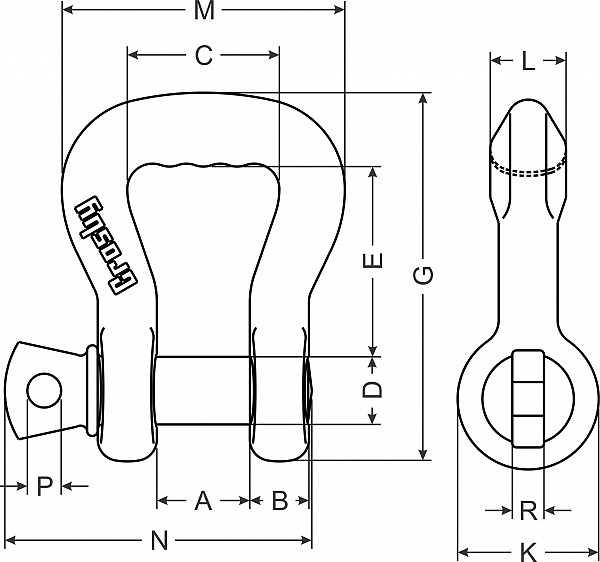

The table presents sling shackles type 253, their dimensions and other technical characteristics.

Web Sling Eye Width mm	Round Sling Size	Weight Each kg	Working Load Limit kg	Dimensions mm												Art. No.
Web Sling Eye Width mm	Round Sling Size	Weight Each kg	Working Load Limit kg	A	B	C	D	E	G	K	L	M	N	P	R	Art. No.
25	1 & 2	0,64	3250	22,4	15,7	35,1	19,1	38,1	86,0	38,1	19,1	68,5	82,0	11,2	25,4	665151
35	3 & 4	1,00	6500	31,8	19,1	44,5	22,4	47,8	105	46,0	25,4	86,0	102	12,7	30,2	665152
50	5 & 6	1,72	8750	35,1	22,4	57,0	25,4	71,5	140	53,0	28,4	106	114	12,7	36,6	665153
75	7 & 8	3,31	12500	41,1	28,4	82,5	31,8	77,5	161	66,5	35,1	143	142	15,7	46,0	665154
100	9 & 10	6,89	20500	54,0	35,1	114	38,1	133	240	79,0	44,5	191	175	19,1	54,0	665155
125	11 & 12	14,0	35000	63,5	44,5	140	51,0	161	292	106	57,0	233	220	25,4	73,0	665156
150	13	23,6	50000	76,0	54,0	165	57,0	196	349	121	70,0	279	260	31,0	81,0	665157
