Shackle type HC1

Code: 451001

Brand: HUBERT WALTERMANN

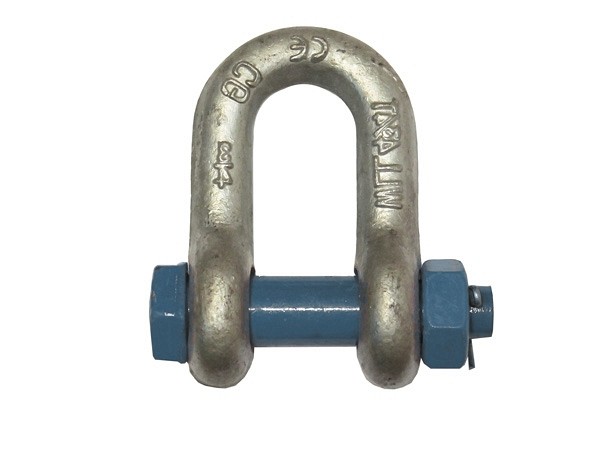

Type HC1 galvanized chain type shackle with pin, nut and cotter pin (type C). Shackles with pin, nut and cotter pin are used for long-term connections and for those purposes where the pin may rotate under load. Chain shackles have a D-shaped bow that is narrower than bow shackles. Because these shackles are designed and rated for in-line tension, they should not be side loaded.

Shackle bolt: type C

Shackle shape: normal

Working load limit:

Reset options

In Stock

Price:

from 9,22 €

Add to cart

You have a question about this product?

More details
Specifications

A bolt type shackle features the combination of a bolt and nut located alongside a cotter pin. These types of shackles remain secure even when the shackle is subjected to rotation or torque. The tightening nut and the cotter pin eliminate the need to tighten the pin prior to every lift or movement of a load. Galvanized shackles are protected against elements that may cause accelerated corrosion or deterioration to the product. The product is marked with WLL, nominal size and CE-sign. All shackles are supplied with instructions for use and a CE declaration of conformity. The pin is varnished. Take into account the maximum load capacity of the shackles in different lifting configuration.

Warranty: 1 year

Images of the products are symbolic.

The table presents shackles type HC1, their dimensions and other technical characteristics.

Nominal size inch	Working load limit kg	Art. No.
Nominal size inch	Working load limit kg	HC1
3/8	1000	451001
1/2	2000	451002
5/8	3250	451003
3/4	4750	451004
7/8	6500	451005
1	8500	451006
1 1/8	9500	451007
1 1/4	12000	451008
1 3/8	13500	451009
1 1/2	17000	451010
1 3/4	25000	451011
2	35000	451012
2 1/2	55000	451013
3	85000	451014
3 1/2	120000	451015
4	150000	451016

Nominal size inch	Working load limit kg	Dimensions								Weight kg
		d1 mm	d2 mm	d3 mm	d4 inch	b1 mm	b2 mm	h1 mm	h2 mm	Weight kg
		d1 mm	d2 mm	d3 mm	d4 inch	b1 mm	b2 mm	h1 mm	h2 mm	HC1
1/2	2000	13	16	30	5/8	21	33	41	48	0,34
5/8	3250	16	19	40	3/4	27	43	51	60	0,70
3/4	4750	19	22	48	7/8	32	51	60	71	1,18
7/8	6500	22	25	54	1	36	58	71	84	1,64
1	8500	25	29	60	1 1/8	43	68	81	95	2,41
1 1/8	9500	29	32	67	1 1/4	46	74	90	108	3,27
1 1/4	12000	32	35	76	1 3/8	52	82	100	119	4,59
1 3/8	13500	35	38	84	1 1/2	57	92	113	133	6,00
1 1/2	17000	38	41	92	1 5/8	60	98	124	146	8,33
1 3/4	25000	44	51	110	2	73	127	146	178	12,83
2	35000	51	57	127	2 1/4	83	146	171	197	18,50
2 1/2	55000	63	70	152	2 3/4	105	184	203	267	38,03
3	85000	76	82	165	3 1/4	127	200	216	330	55,35
3 1/2	120000	89	95	203	3 3/4	146	230	267	381	98,10
4	150000	102	108	229	4 1/4	165	260	305	432	139,50
