New

Lashing ring TWN

Brand: P TEAM

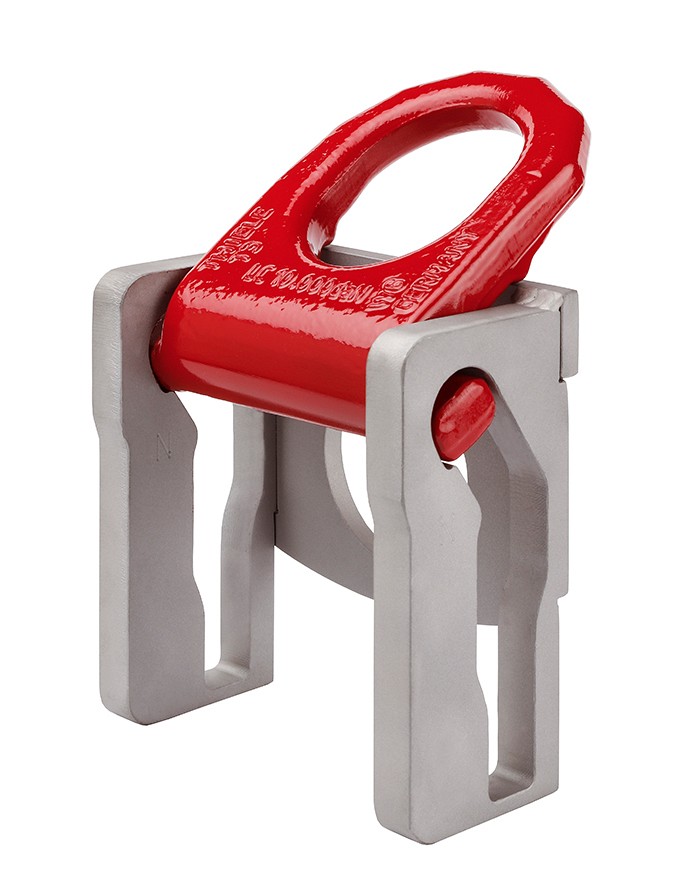

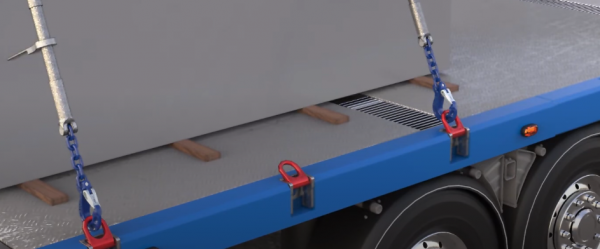

The lashing point TWN is designed for securing loads on a flatbed trailer. It features a retractable lashing ring that allows chains or slings to be fastened securely to stabilize heavy loads during transport. The lashing ring makes it possible to secure loads on a trailer at different angles because it has the ability to pivot 180 degrees. As the lashing ring rotates outward, it is also suitable for use when the cargo extends beyond the edges of a trailer. This feature guarantees that loads, which may not completely fit within the width of the trailer, are securely fastened without sacrificing safety. TWN type of lashing point is directly welded to the side frame of a flatbed trailer. When the lashing points are not being used, they can be recessed into the trailer's side, creating a flat surface.

Out of stock

Send inquiry

More details

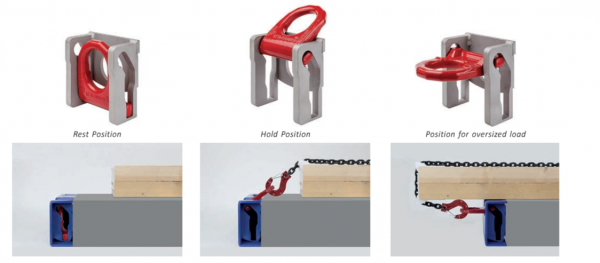

The lashing point type TWN, which has to be welded down, is designed to secure loads on a flatbed trailer. It can pivot 180°, making it possible to secure loads at various angles. This flexibility ensures that the lashing ring aligns completely with the lifting chain. As the lashing ring rotates outward, it is also suitable for use when the cargo extends beyond the edges of a trailer. The lifting points are designed to extend outward when necessary and retract flush with the trailer’s frame when not in use. This ensures that they are easily accessible when needed and stowed away when not in use. The TWN lashing ring can be used in a temperature range from -40°C to +200°C. It complies with the EN 1677-1 standard and has a safety factor of 2:1.

Warranty: 1 year

Images of the products are symbolic.

The table presents lashing ring type TWN, their dimensions and other technical characteristics.

Trade size	Lashing capacity (LC) (daN max.)	Dimensions (mm)						Weight app. (kg)
Trade size	Lashing capacity (LC) (daN max.)	A	B	C	D	E	T	Weight app. (kg)
5	5.000	107	12	119	61	52	14	2,60
10	10.000	137	15	144	73	62	18	3.60
